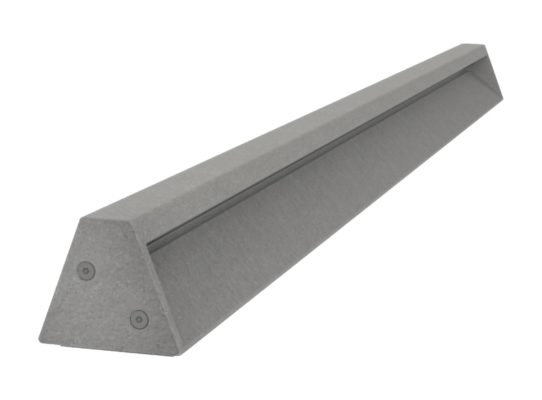

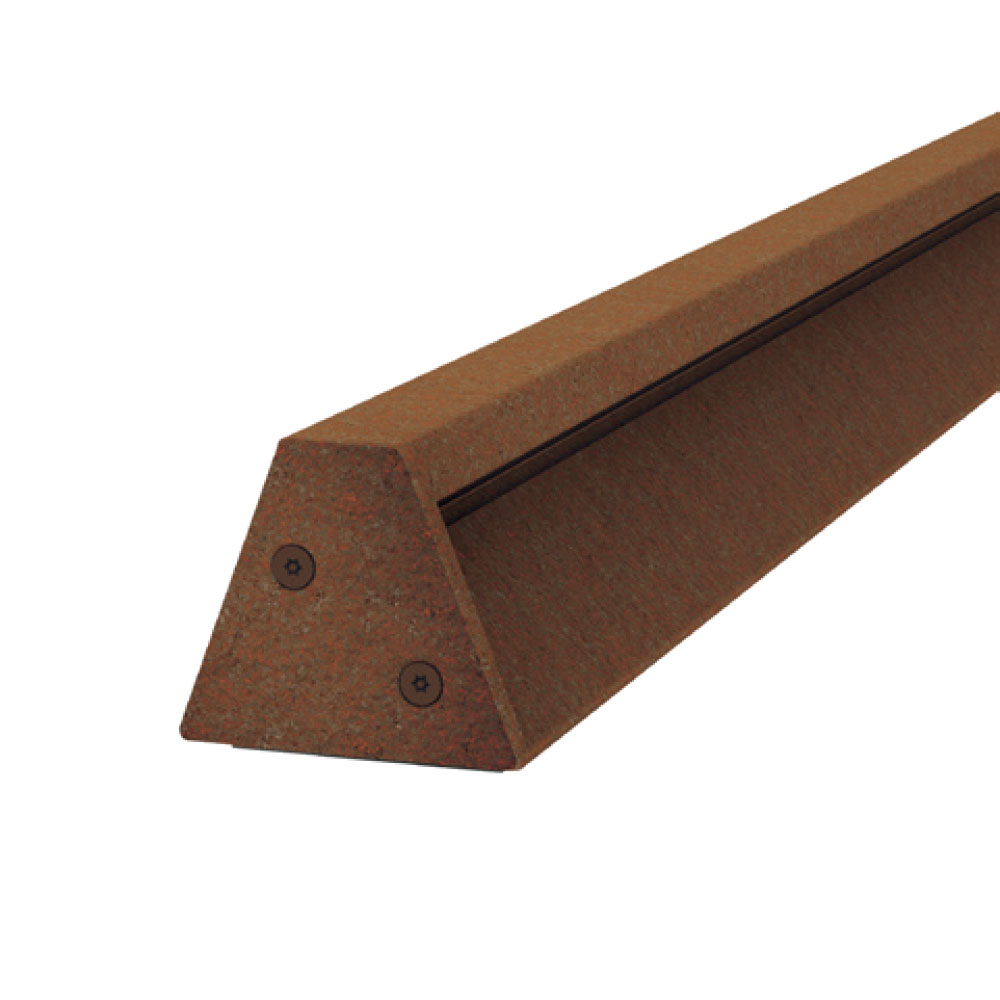

Dirigo

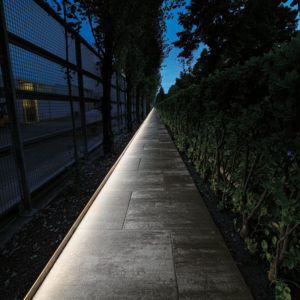

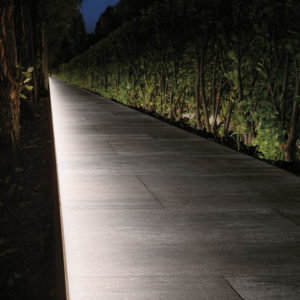

Dirigo represents an innovative lighting concept to illuminate outdoor pathways. The very low profile was designed to evenly illuminate walkways and any other foot traffic area, with the product meant to be placed along paths and walls. Dirigo is a great alternative to the use of illuminated bollards, taking a totally different approach, where the fixture blends with the trail it’s illuminating and maintains excellent light levels alongside it, without being noticed. And when off, Dirigo has a pleasant look, available in straight runs but with the possibility to make outside and inside illuminated corners.

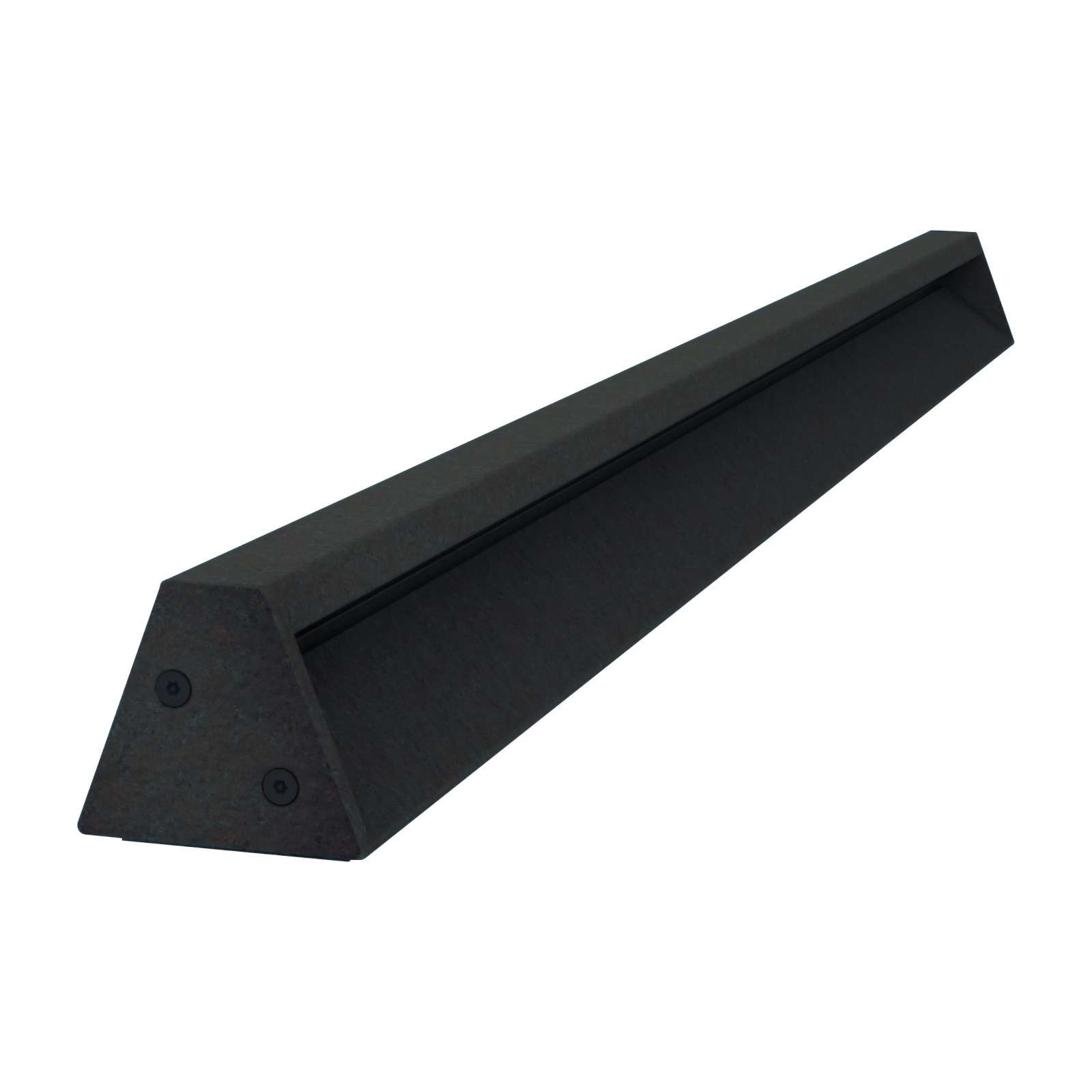

Fixture Body: Corrosion resistant 6060 Aluminum, Open-pore Anodized and Powder Coated.
Diffuser: UV resistant Polymethalmethacrilate (PMMA), Opal White.
Mounting: Surface mounted.
Drive-over: Fixture is Walk-Over only.
Driver: Remote, 24VDC Dimmable 0-10V, Lutron EcoSystem 0.1% or Non-Dim.
Wattage: (based on 3000K LED)
1.4W/ft – 87 delivered lumens per foot / 62 lumens per watt
3W/ft – 168 delivered lumens per foot / 56 lumens per watt
4.4W/ft – 252 delivered lumens per foot / 57 lumens per watt
Cable: Field installed LED with adhesive backing and 4′ leads. All L.V. connections are made
inside the fixture with direct cable or rigid conduit stub-up.
IP rating: IP67
IK rating: IK 09
ETL Certification: ETL, wet location
Optics: Snap-in satin lens for General Illumination.
Color temperatures: 2700K – 3000K – 3500K – 4000K – Amber (4.4W/ft only) – RGBW.
CRI: 90+
