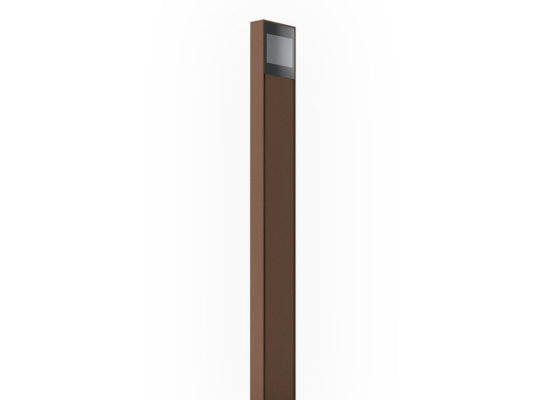

Peak
Peak offers a wide range of solutions expressly designed to bring to life Public Parks and Urban Environment, while its simple and clean look makes it also suitable for Residential applications. Peak comes in a Straight or in a L-shaped configuration. The straight configuration is offered in both a short 13.8″ height, perfect for residential landscape applications, and a 29.5″ version, more commonly used for Urban environment. The Peak family is full cut-off, for Dark Sky Compliant solutions.
Fixture Body: Open pore Anodized and Powder Coated Die-Cast Aluminum.
Diffuser: Extra Clear Tempered Glass with Black Silkscreen areas.
Mounting: Open pore Anodized and Powder Coated Aluminum Base (Standard). Anchor Bolts available upon request.
Driver: Integral, 120-277V Dimmable 0-10V.
Wattages: 8W (13.8″) – 11W (29.5″).
Safety features: Fixture is equipped with Electrostatic discharge protection (4 KV), Surge Protection (3.75 KV) and Acquastop (anti-wicking).
IP rating: IP66
ETL Certification: ETL, wet location
Optics: Fixed, with Asymmetric Emission.
Color temperatures: 3000K – 4000K.
CRI: 80+
BUG Rating: B0-U0-G0 – Type IV (Dark Sky Compliant)

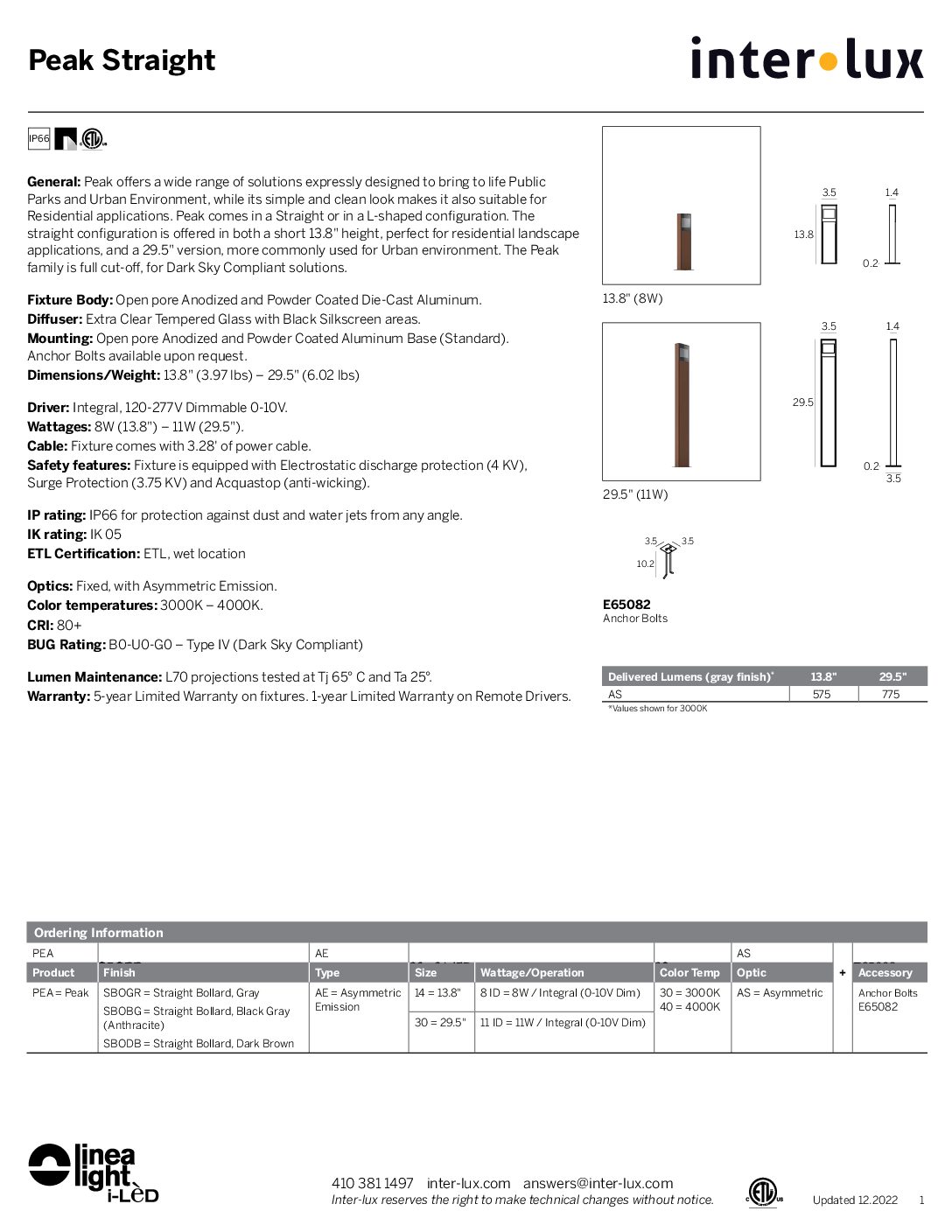

- Spec Page
-

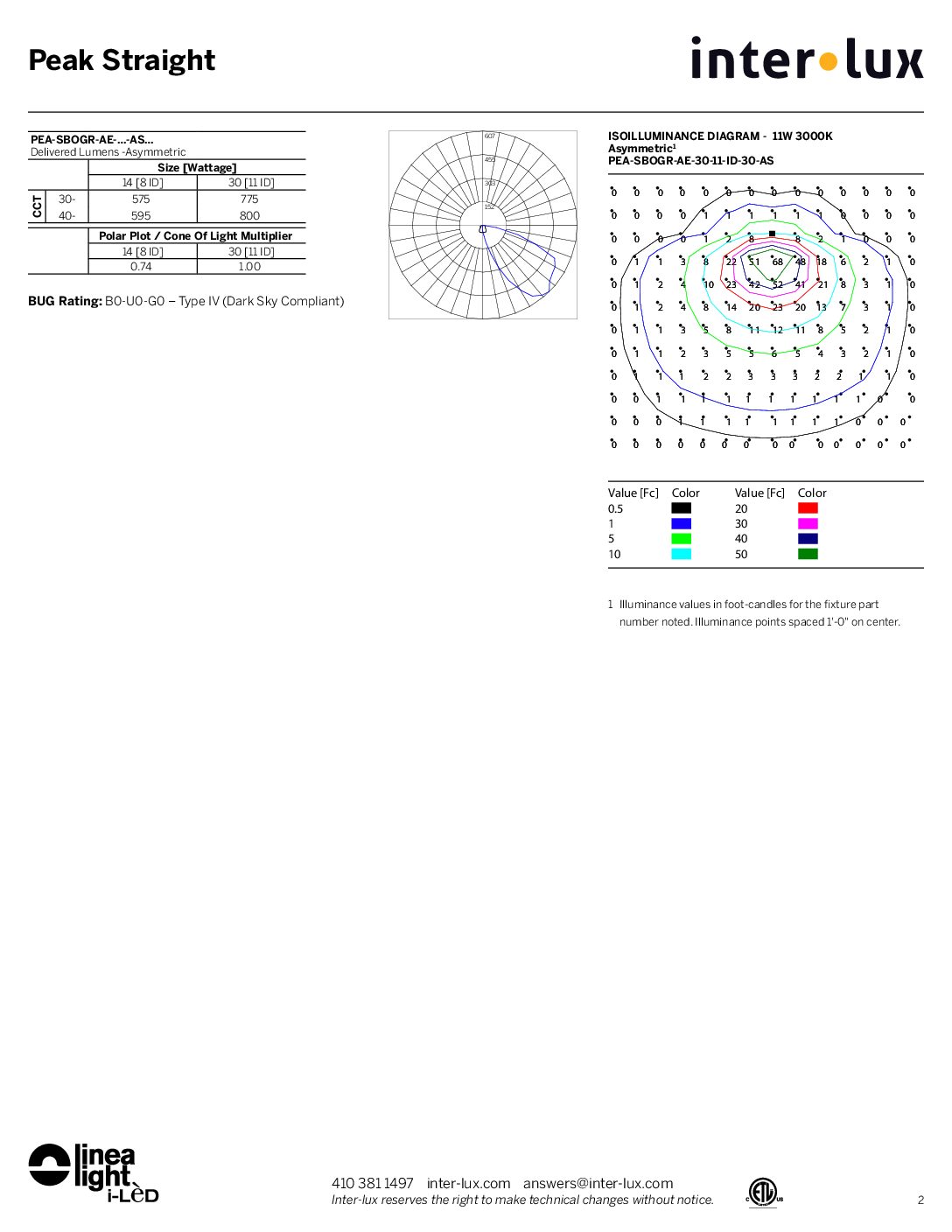

- Photometry
-

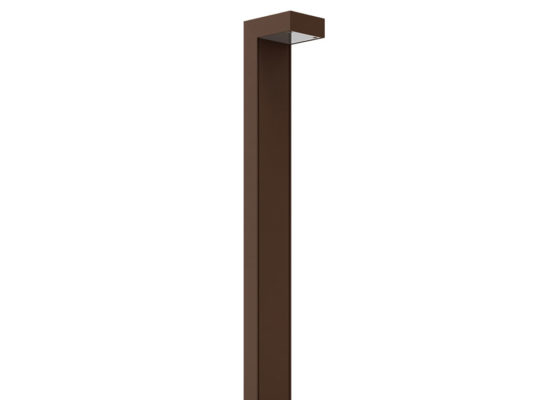

Peak L-Shape
Peak offers a wide range of solutions expressly designed to bring to life Public Parks and Urban Environment, while its simple and clean look makes it also suitable for Residential applications. Peak comes in a Straight or in a L-shaped configuration. The straight configuration is offered in both a short 13.8″ height, perfect for residential landscape applications, and a 29.5″ version, more commonly used for Urban environment. The Peak family is full cut-off, for Dark Sky Compliant solutions.
Fixture Body: Open pore Anodized and Powder Coated Die-Cast Aluminum.
Diffuser: Extra Clear Tempered Glass with Black Silkscreen areas.
Mounting: Open pore Anodized and Powder Coated Aluminum Base (Standard). Anchor Bolts available upon request.
Driver: Integral, 120-277V Dimmable 0-10V.
Wattage/Size: 11W (29.5″).
Safety features: Fixture is equipped with Electrostatic discharge protection (4 KV), Surge Protection (3.75 KV) and Acquastop (anti-wicking).
IP rating: IP66
ETL Certification: ETL, wet location
Optics: Fixed, with Asymmetric Emission.
Color temperatures: 3000K – 4000K.
CRI: 80+
BUG Rating: B0-U0-G0 – Type IV (Dark Sky Compliant)

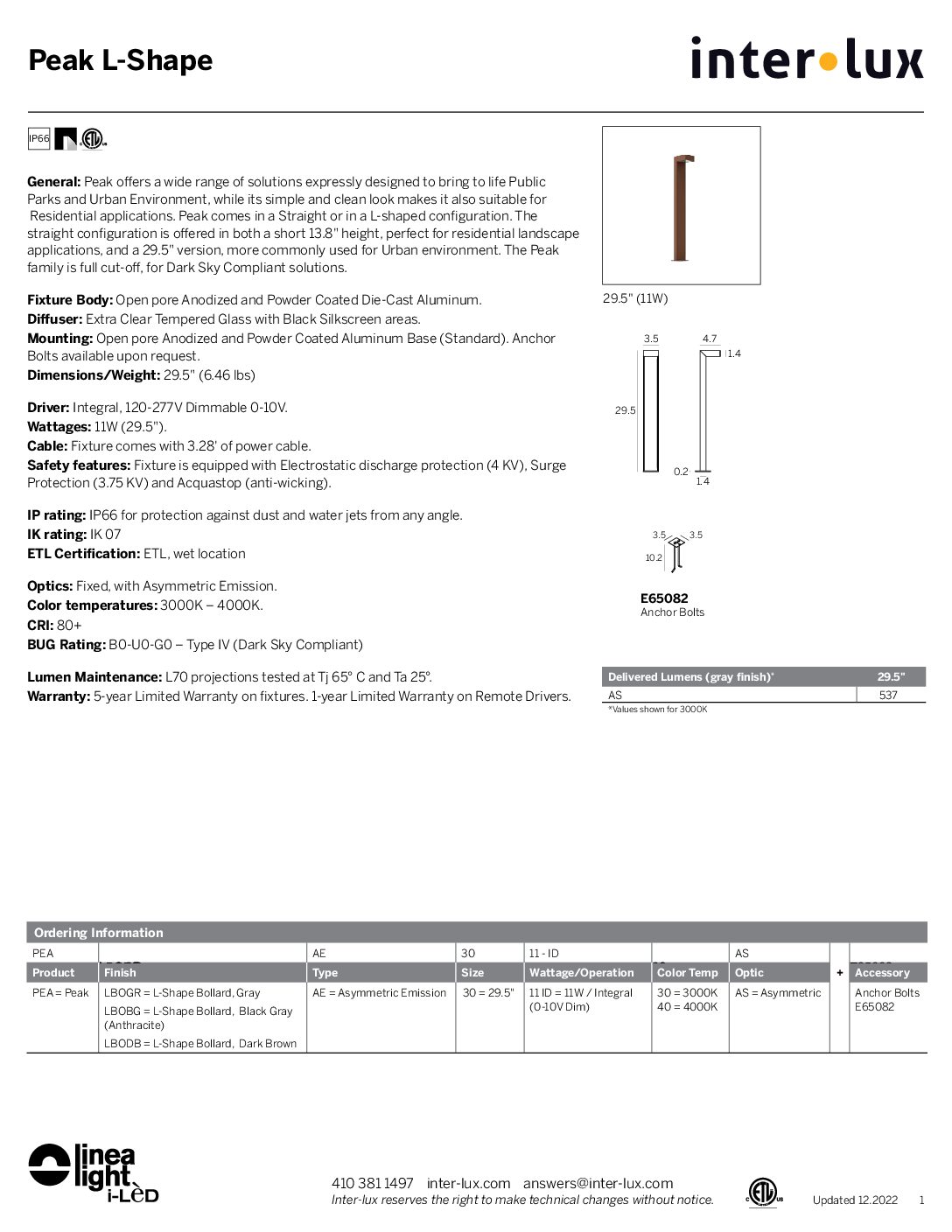

- Spec Page
-
- Photometry
-
