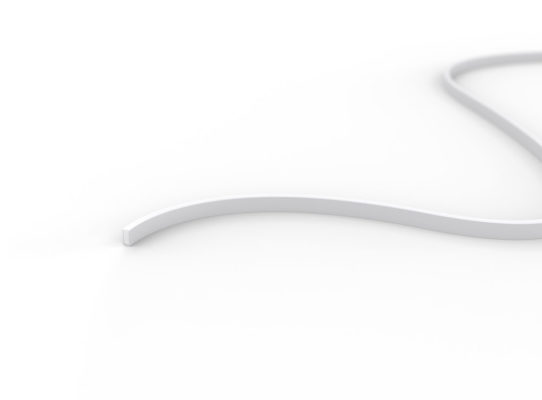

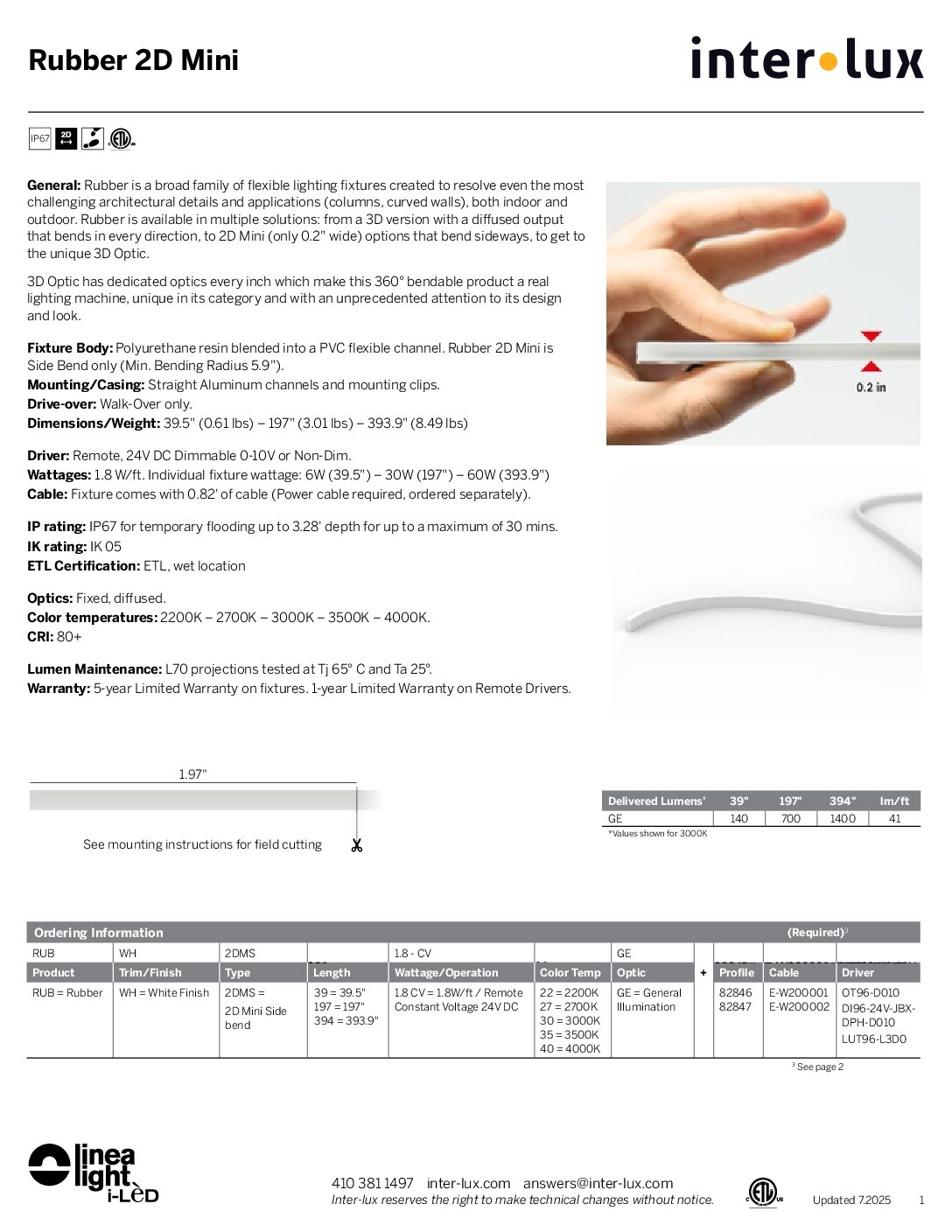

Rubber 2D Mini
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Rubber is available in multiple solutions: from a 3D version with a diffused output that bends in every direction, to 2D Mini (only 0.2″ wide) options that bend sideways, to get to the unique 3D Optic.
3D Optic has dedicated optics every inch which make this 360° bendable product a real lighting machine, unique in its category and with an unprecedented attention to its design and look.

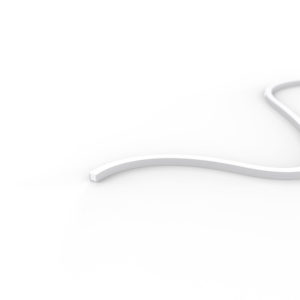

Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 2D Mini is Side Bend only (Min. Bending Radius 5.9″).
Mounting/Casing: Straight Aluminum channels and mounting clips.
Drive-over: Walk-Over only.
Driver: Remote, 24V DC Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 1.8 W/ft. Individual fixture wattage: 6W (39.5″) – 30W (197″) – 60W (393.9″)
IP rating: IP67
ETL Certification: ETL, wet location
Optics: Fixed, diffused.
Color temperatures: 2200K – 2700K – 3000K – 3500K – 4000K.
CRI: 80+

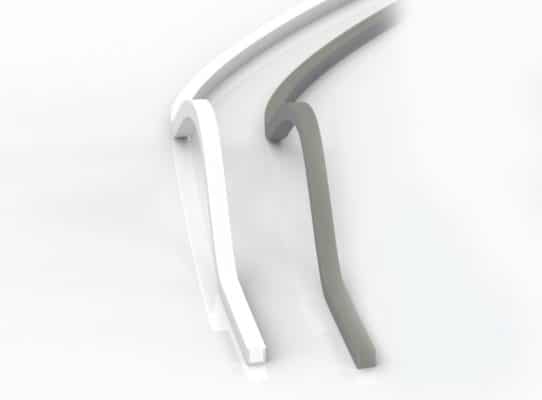

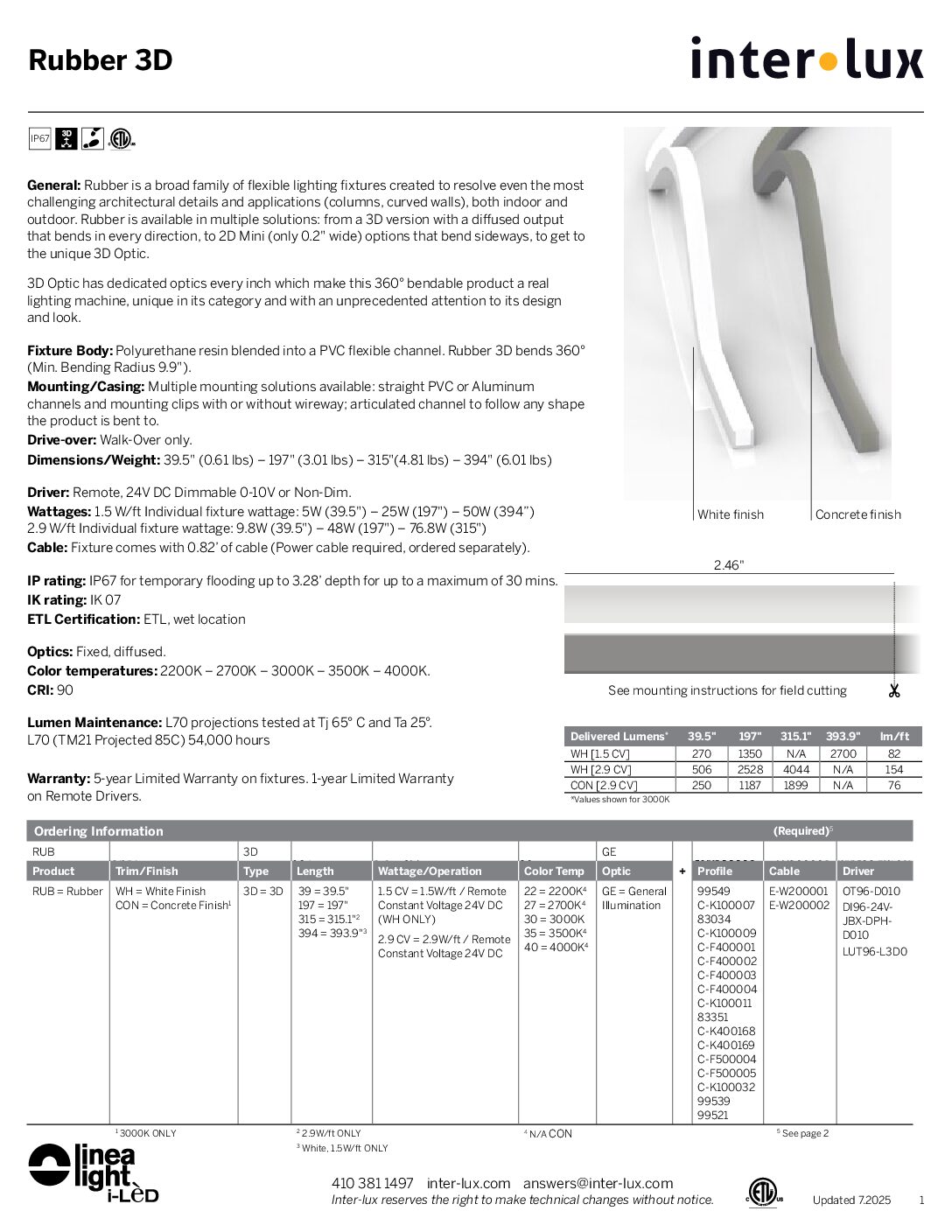

Rubber 3D
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Rubber is available in multiple solutions: from a 3D version with a diffused output that bends in every direction, to 2D Mini (only 0.2″ wide) options that bend sideways, to get to the unique 3D Optic.
3D Optic has dedicated optics every inch which make this 360° bendable product a real lighting machine, unique in its category and with an unprecedented attention to its design and look.
Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 3D Optic bends 360° (Min. Bending Radius 9.9”).
Mounting/Casing: Multiple mounting solutions available: straight PVC or Aluminum channels and mounting clips with or without wireway; articulated channel to follow any shape the product is bent to.
Drive-over: Walk-Over only.
Driver: Remote, 24V DC Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 1.5 W/ft Individual fixture wattage: 5W (39.5″) – 25W (197″) – 50W (394”)
2.9 W/ft Individual fixture wattage: 9.8W (39.5″) – 48W (197″) – 76.8W (315″)
IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
ETL Certification: ETL, wet location
Optics: Fixed, diffused.
Color temperatures: 2200K – 2700K – 3000K – 3500K – 4000K.
CRI: 90
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°. L70 (TM21 Projected 85C) 54,000 hours

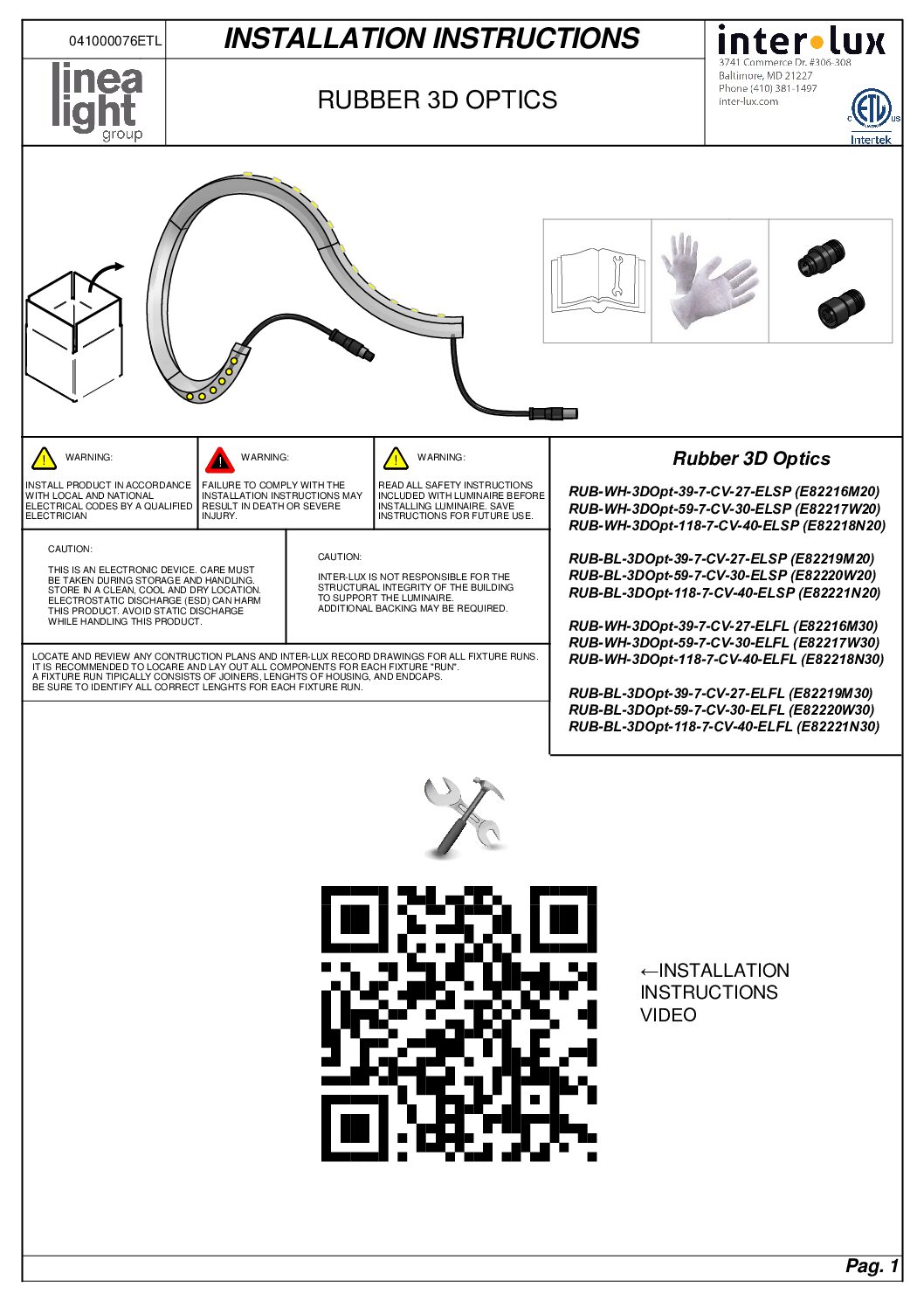

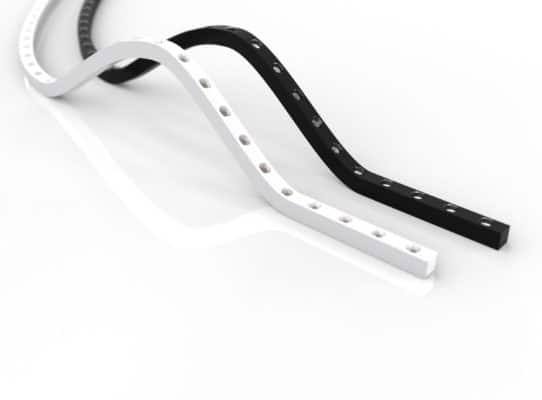

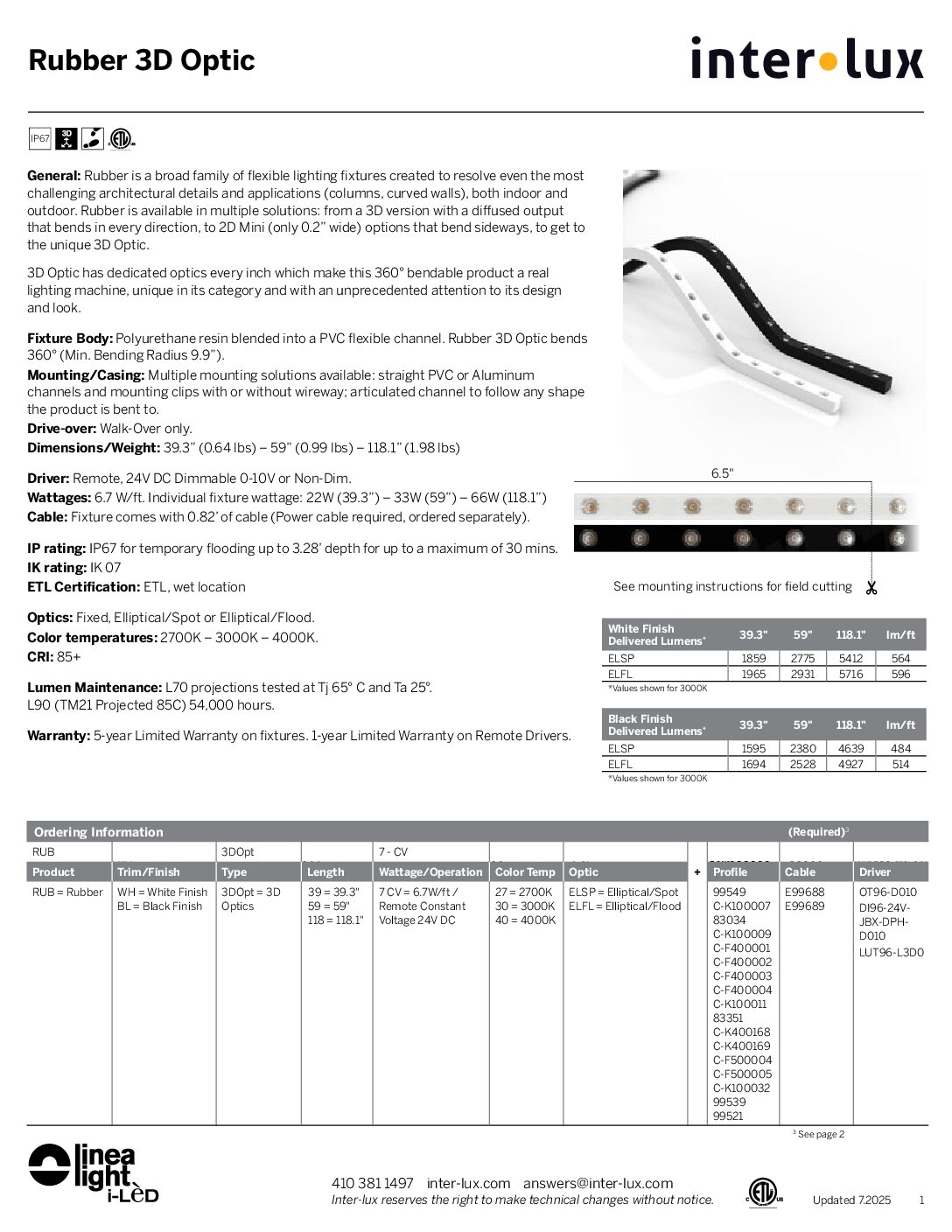

Rubber 3D Optic
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Rubber is available in multiple solutions: from a 3D version with a diffused output that bends in every direction, to 2D Mini (only 0.2” wide) options that bend sideways, to get to the unique 3D Optic.
3D Optic has dedicated optics every inch which make this 360° bendable product a real lighting machine, unique in its category and with an unprecedented attention to its design and look.
Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 3D Optic bends 360° (Min. Bending Radius 9.9”).
Mounting/Casing: Multiple mounting solutions available: straight PVC or Aluminum channels and mounting clips with or without wireway; articulated channel to follow any shape the product is bent to.
Drive-over: Walk-Over only.
Driver: Remote, 24V DC Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 6.7 W/ft. Individual fixture wattage: 20W (39.5”) – 60W (118.3”)
IP rating: IP67
ETL Certification: ETL, wet location
Optics: Fixed, Elliptical Narrow Flood (24.2°x30.8°) or Elliptical Flood (37.5°x41.0°).
Color temperatures: 2200K – 2700K – 3000K – 3500K – 4000K.
CRI: 85+
Lumen Maintenance: L70 projections tested at Tj 65° C and Ta 25°. L90 (TM21 Projected 85C) 54,000 hours.

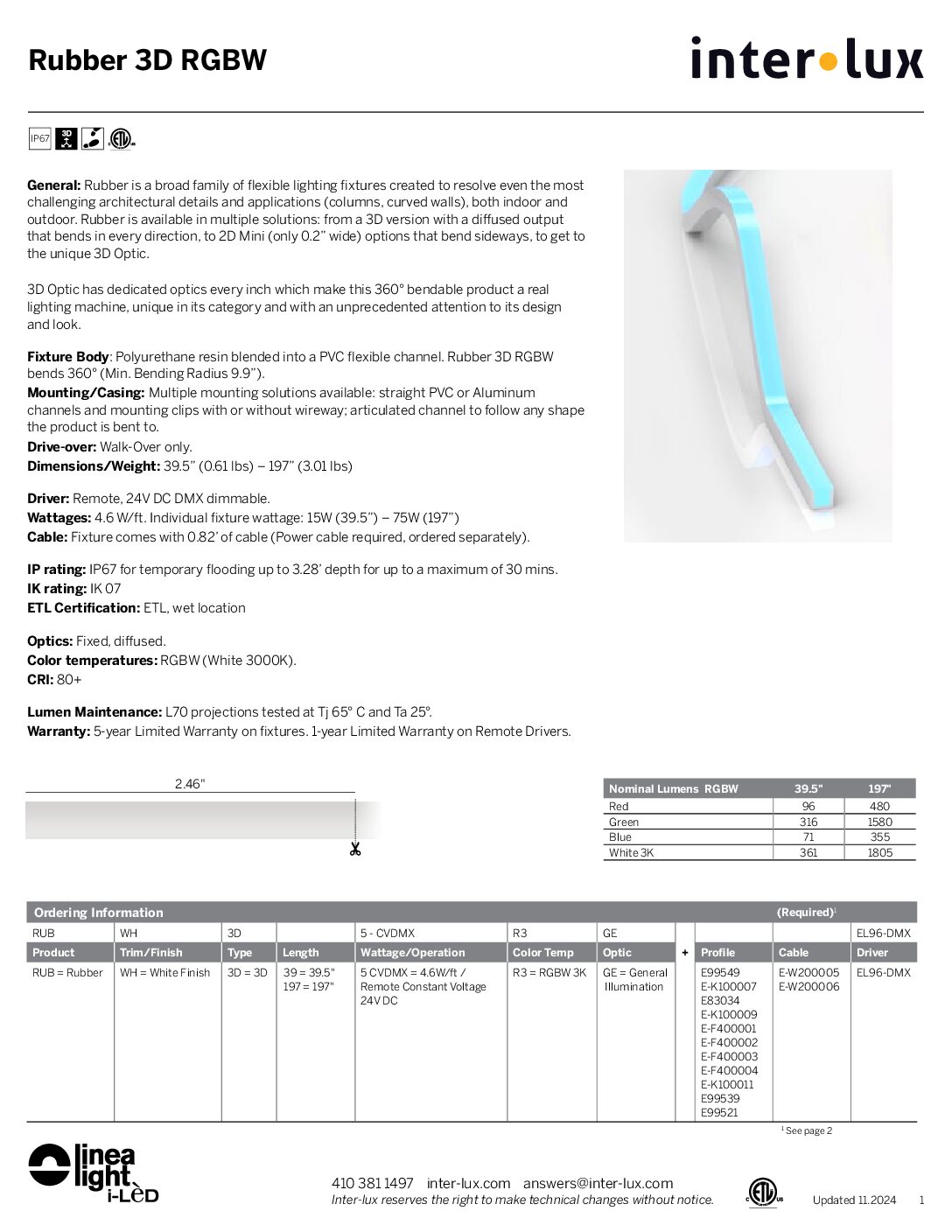

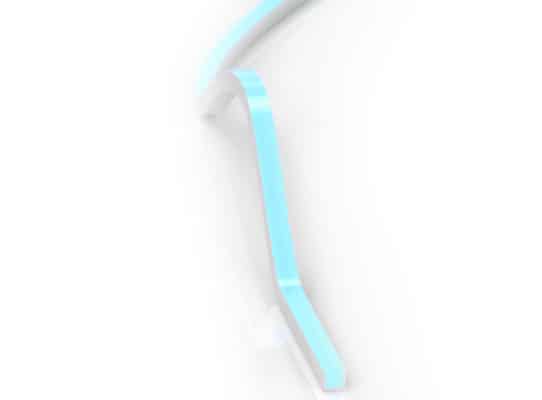

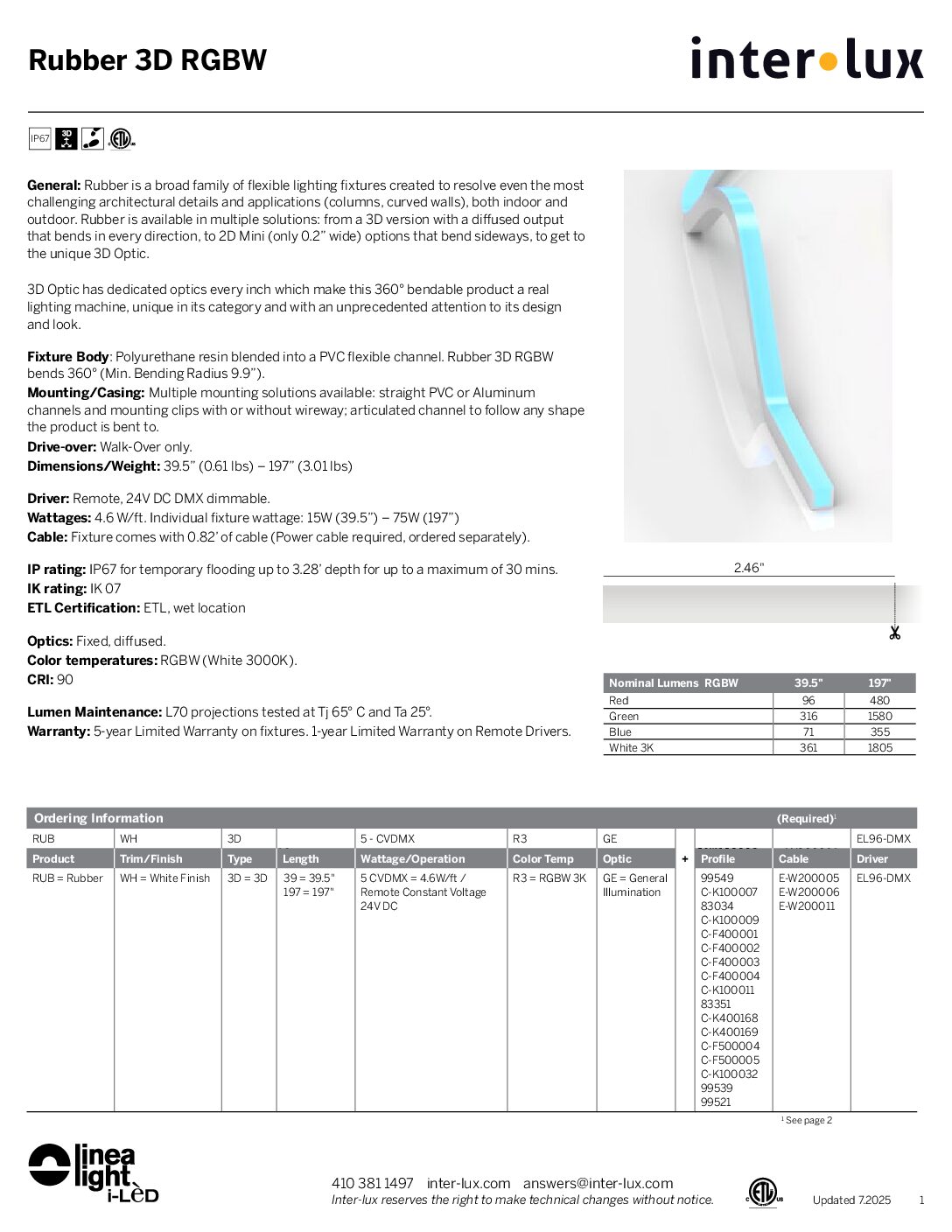

Rubber 3D RGBW
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Rubber is available in multiple solutions: from a 3D version with a diffused output that bends in every direction, to 2D Mini (only 0.2” wide) options that bend sideways, to get to the unique 3D Optic.
Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 3D RGBW bends 360° (Min. Bending Radius 9.9”).
Mounting/Casing: Multiple mounting solutions available: straight PVC or Aluminum channels and mounting clips with or without wireway; articulated channel to follow any shape the product is bent to.
Drive-over: Walk-Over only.
Driver: Remote, 24V DC DMX dimmable.
Wattages/Sizes: 5 W/ft. Individual fixture wattage: 16.5W (39.5”) – 82.5W (197”)
IP rating: IP67
ETL Certification: ETL, wet location
Optics: Fixed, diffused.
Color temperatures: RGBW (White 3000K).
CRI: 90

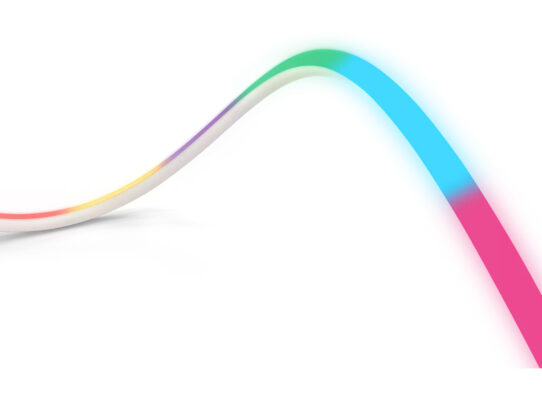

Rubber 3D Pixel
Rubber is a broad family of flexible lighting fixtures created to resolve even the most challenging architectural details and applications (columns, curved walls), both indoor and outdoor. Thanks to its innovative technology, the new Rubber 3D PIXEL RGBW allows the creation of dynamic lighting effects. Depending on the selected pixel “pitch” (the space that defines the resolution of the final pixel), the dynamic light show created by the product can be visible from significant distances.
Fixture Body: Polyurethane resin blended into a PVC flexible channel. Rubber 3D PIXEL RGBW bends 360° (Min. Bending Radius 9.9″).
Pixel Resolution: 4.9″ (125mm)
Mounting/Casing: Multiple mounting solutions available: straight PVC or Aluminum
channels and mounting clips with or without wireway; articulated channel to follow any shape the product is bent to.
Drive-over: Walk-Over only.
Dimensions/Weight: 19.7″ (0.33 lbs) – 39.4″ (0.61 lbs) – 196.9″ (3.01 lbs)
Driver: Remote, 24V DC DMX dimmable.
Control Protocol: SPI dimmable, UCS8904
Wattages: 4 W/ft. Individual fixture wattage: 6.6W (19.7″) – 13.2W (39.4″) – 66W (196.9″)
Cable: Fixture comes with 0.82’ of cable (Power cable required, ordered separately).
IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
IK rating: IK 07
ETL Certification: ETL, wet location
Optics: Fixed, diffused.
Color temperatures: RGBW (White 3000K).
CRI: 80+
See Rubber 3D Pixel in Action >
