4 In. ProTools DL Adjustable Square Asymmetric Cone (PTD4)
Asymmetric Cone For Minimum Beam Clipping With Wider Angle Optics And Higher Angle Focusing
- 4″ square downlight with 2″ light aperture.
- 0.7 regressed aperture / lens position provides good glare control.
- Beam Angle: Various
- Asymmetric cone to minimize beam clipping when tilted.
- Open aperture, clear lens or high transmission diffuser.
- Luminaire and driver installed and maintained from below the ceiling.
- Mounts in 1/16″ to 1″ surface.
- Tunable White and Warm Dim.
- Modular interchangeability throughout the entire ProTools range of products.
- Tilt 40º, rotation 365º, 144 step.
- Wet Location as standard option (WL).
- Multiple luminaire configurations for plaster trim.
- Available 2700 to 4000 K (447 to 1347 lm).

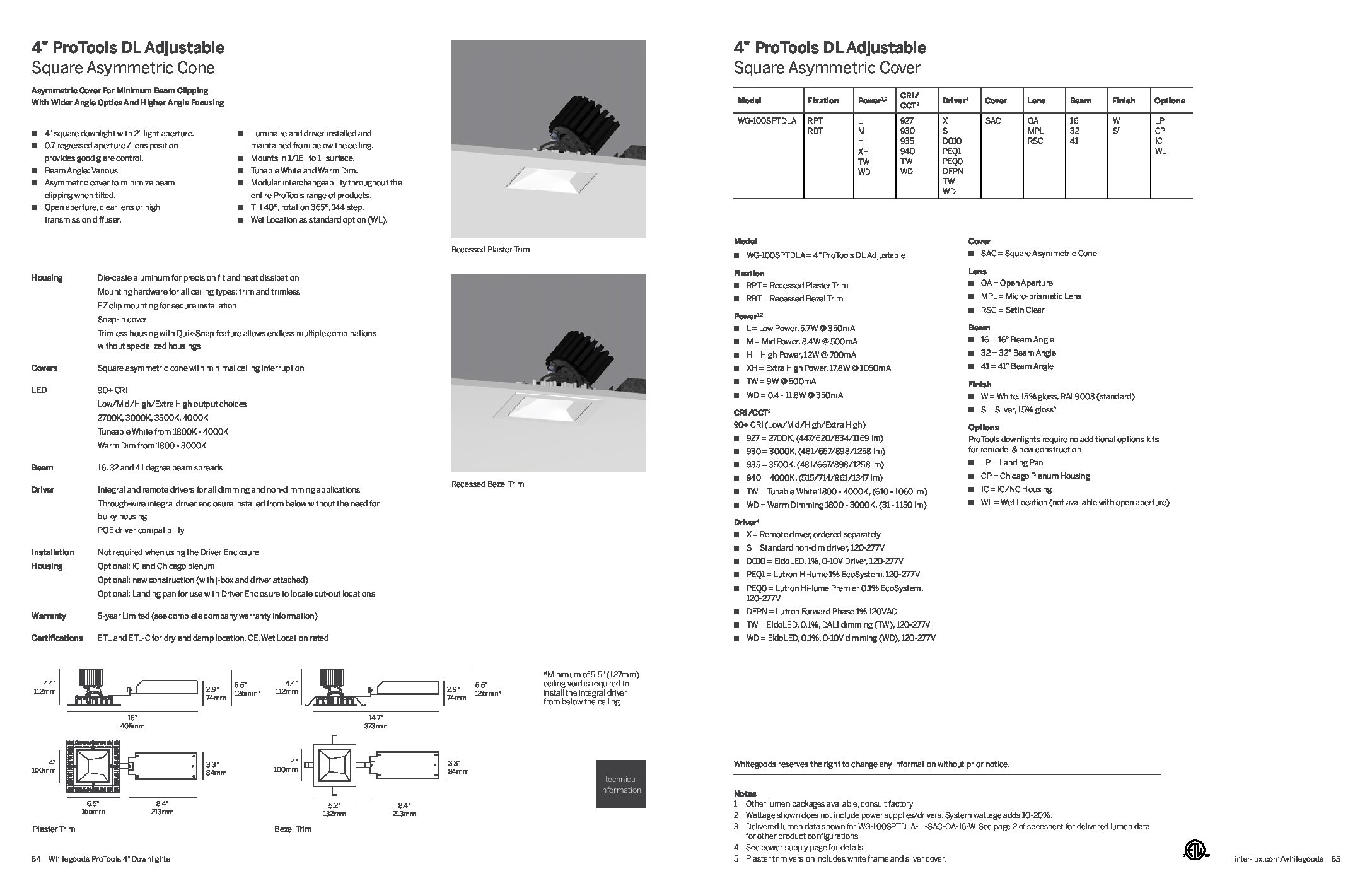

Selections download as one PDF

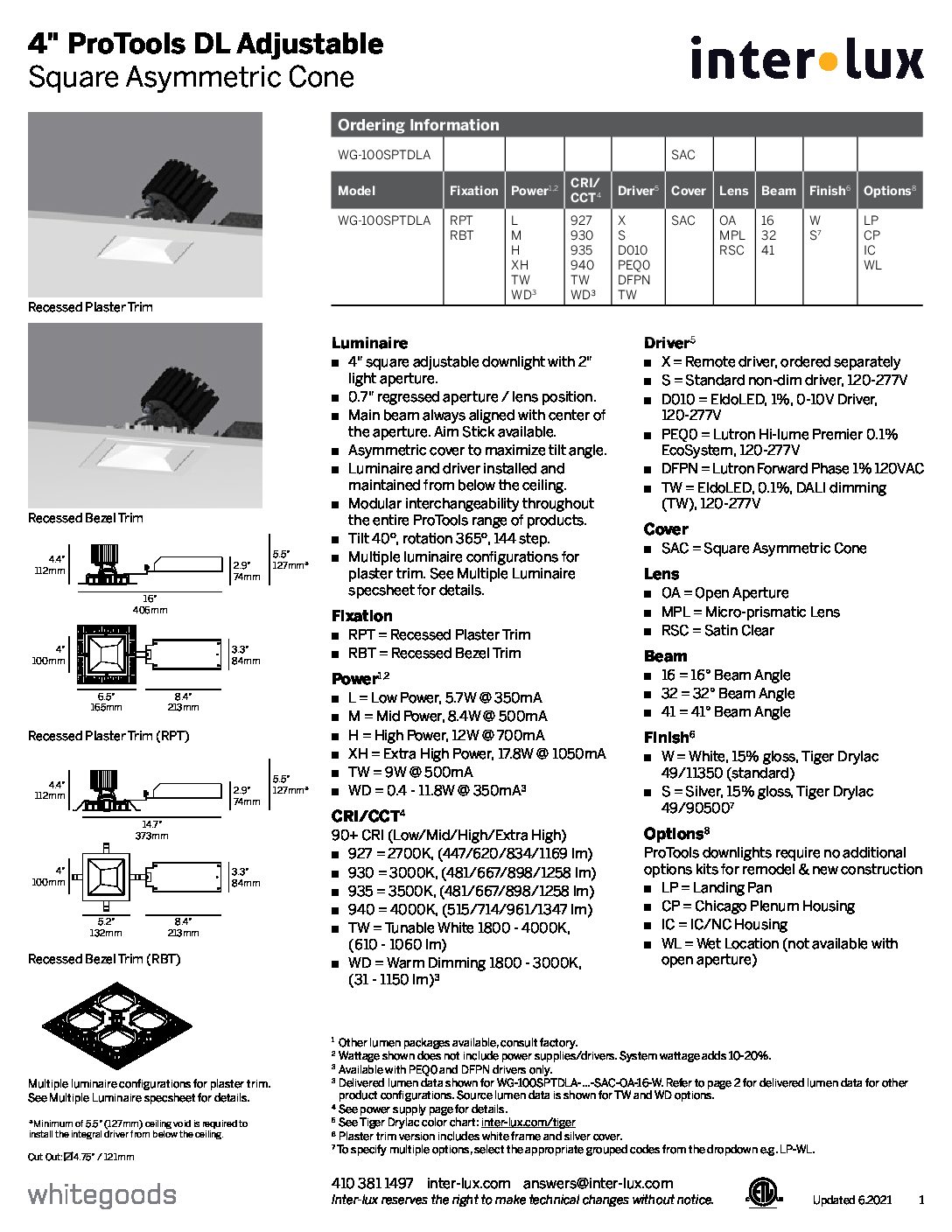

- Spec Page
-
- Luminaire Configurations
-
- New Construction Housing
-
- IC/CP Housings
-
- Landing Pan
-
- Emergency Constant Current
-
