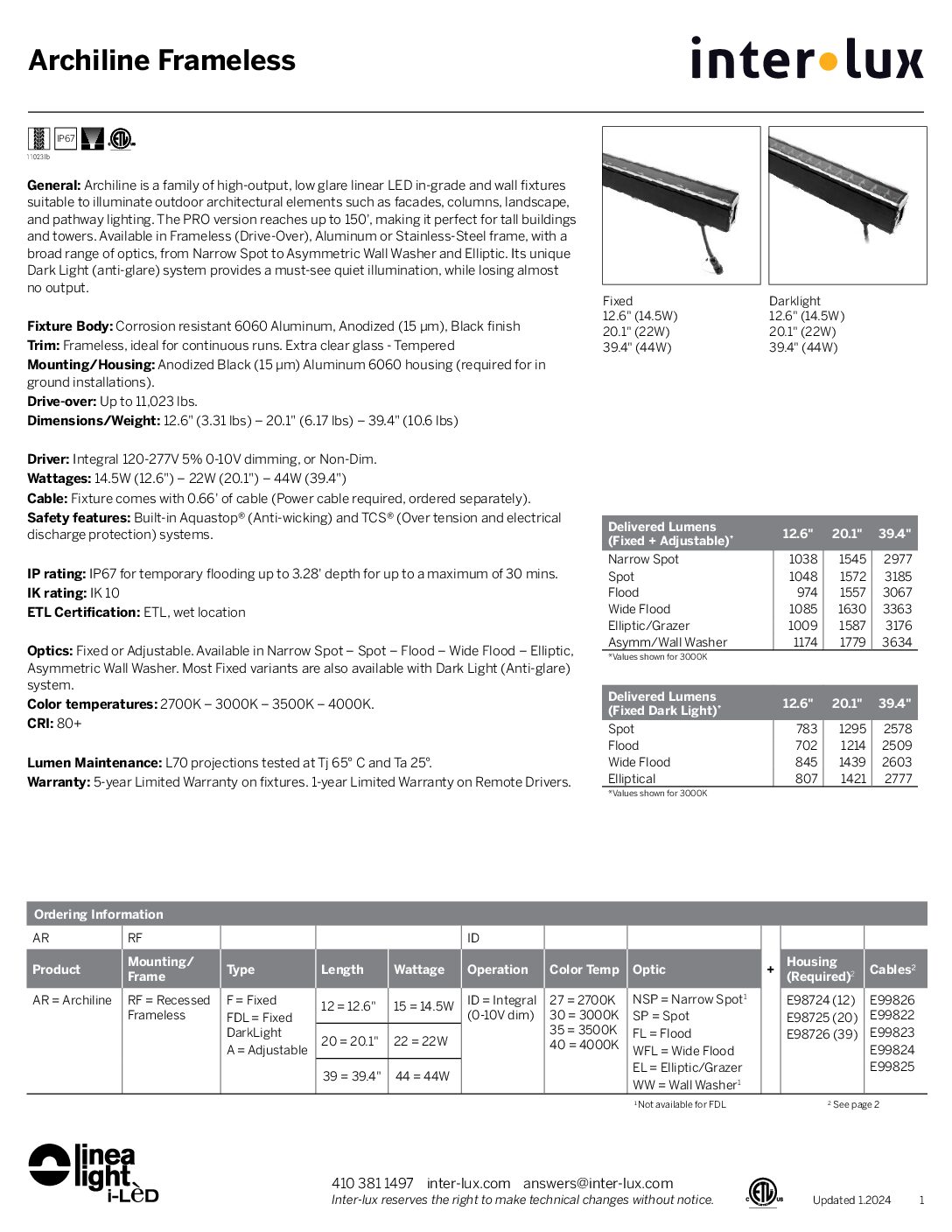

Archiline Frameless
Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: Frameless, ideal for continuous runs. Extra clear glass – Tempered
Mounting/Housing: Anodized Black (15 μm) Aluminum 6060 housing (required for in ground installations).
Drive-over: Up to 11,023 lbs.
Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 14.5W (12.6″) – 22W (20.1″) – 44W (39.4″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.
IP rating: IP67
ETL Certification: ETL, wet location

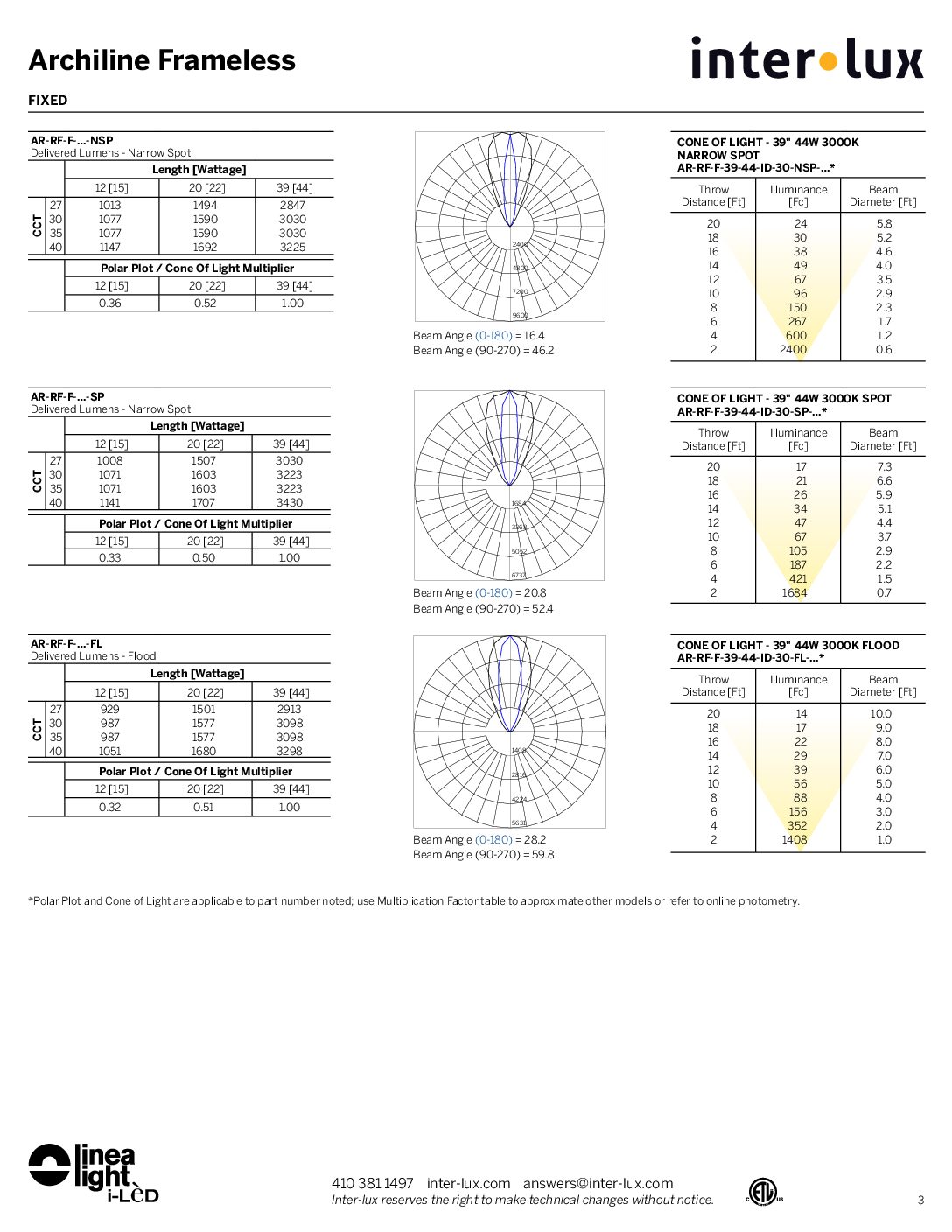

Optics: Fixed or Adjustable. Available in Narrow Spot – Spot – Flood – Wide Flood – Elliptic, Asymmetric Wall Washer. Most Fixed variants are also available with Dark Light (Anti-glare) system.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
Quickship Housings Available: add QS in front of part number
