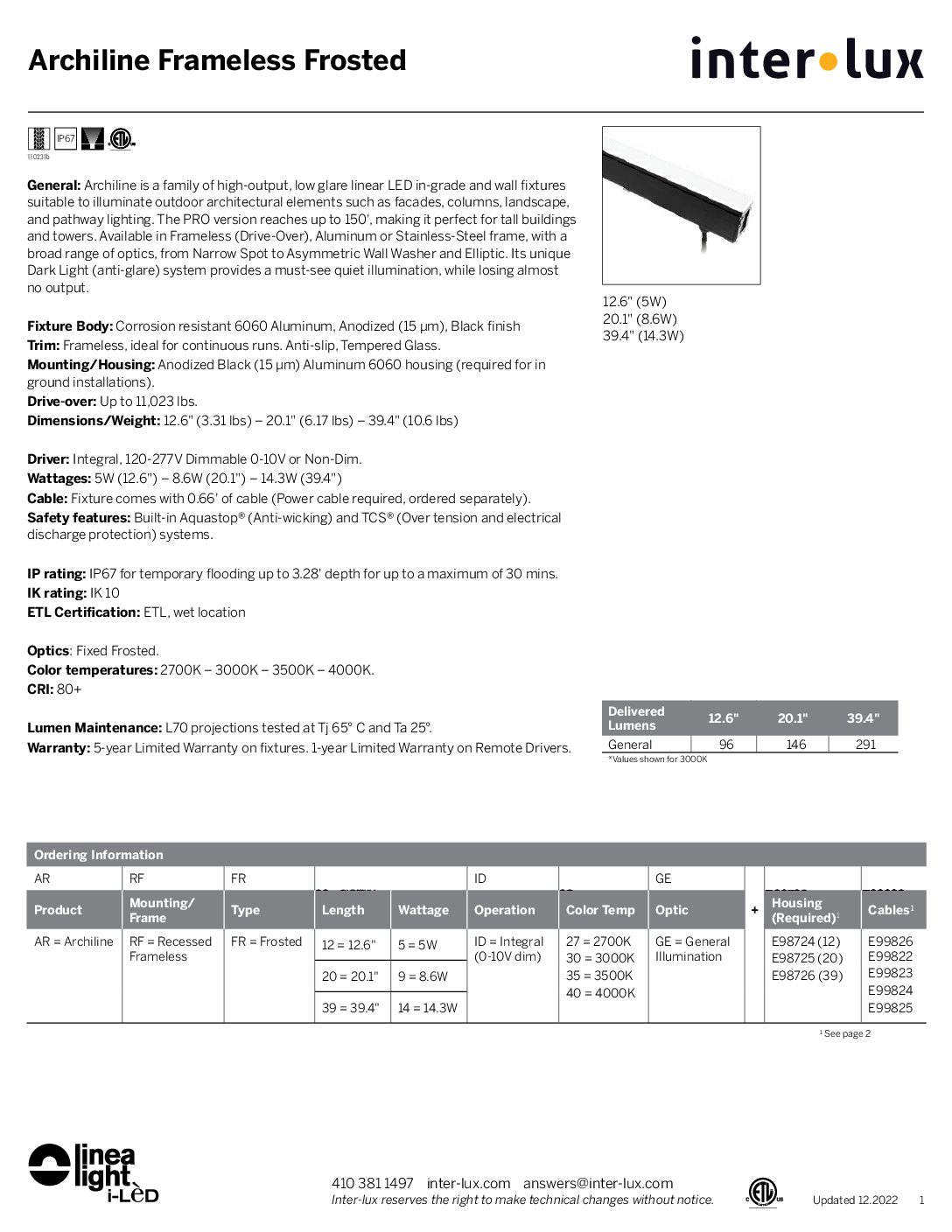

Archiline Frameless Frosted

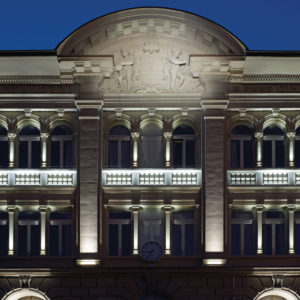

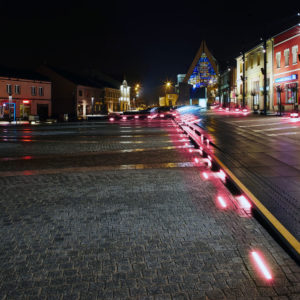

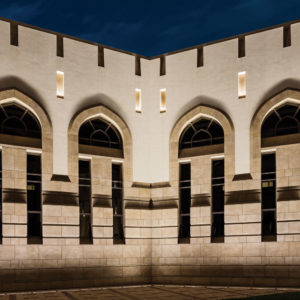

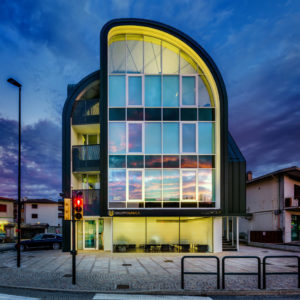

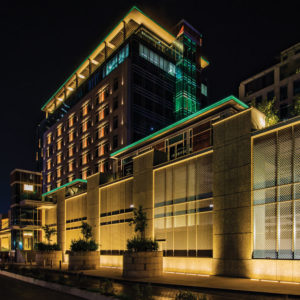

Archiline is a family of high-output, low glare linear LED in-grade and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The PRO version reaches up to 150′, making it perfect for tall buildings and towers.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (15 μm), Black finish
Trim: Frameless, ideal for continuous runs. Anti-slip, Tempered Glass.

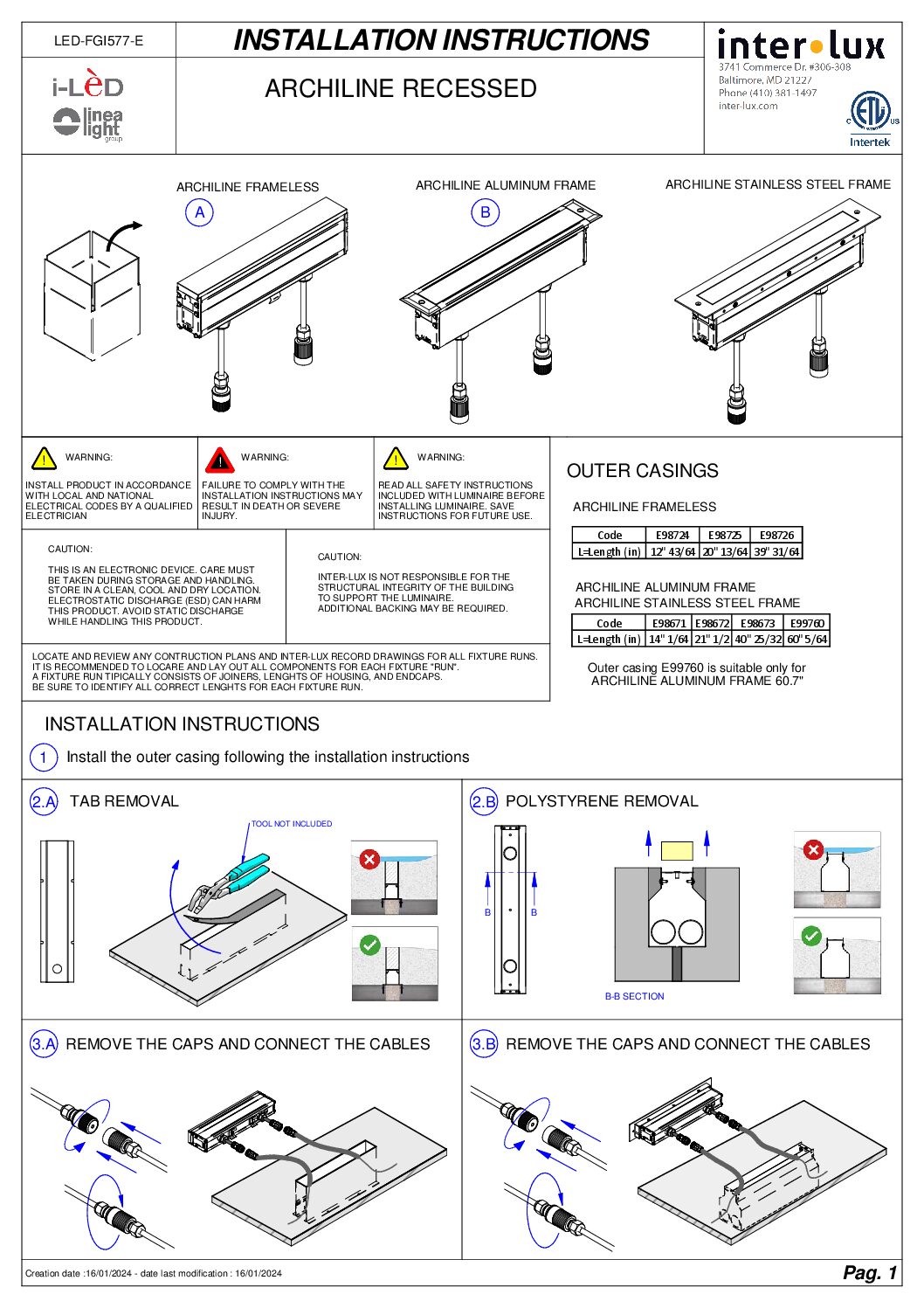

Mounting/Housing: Anodized Black (15 μm) Aluminum 6060 housing (required for in ground installations).
Drive-over: Up to 11,023 lbs.
Driver: Integral, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 5W (12.6″) – 8.6W (20.1″) – 14.3W (39.4″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.
IP rating: IP67
ETL Certification: ETL, wet location
Optics: Fixed Frosted.
Color temperatures: 2700K – 3000K – 3500K – 4000K.

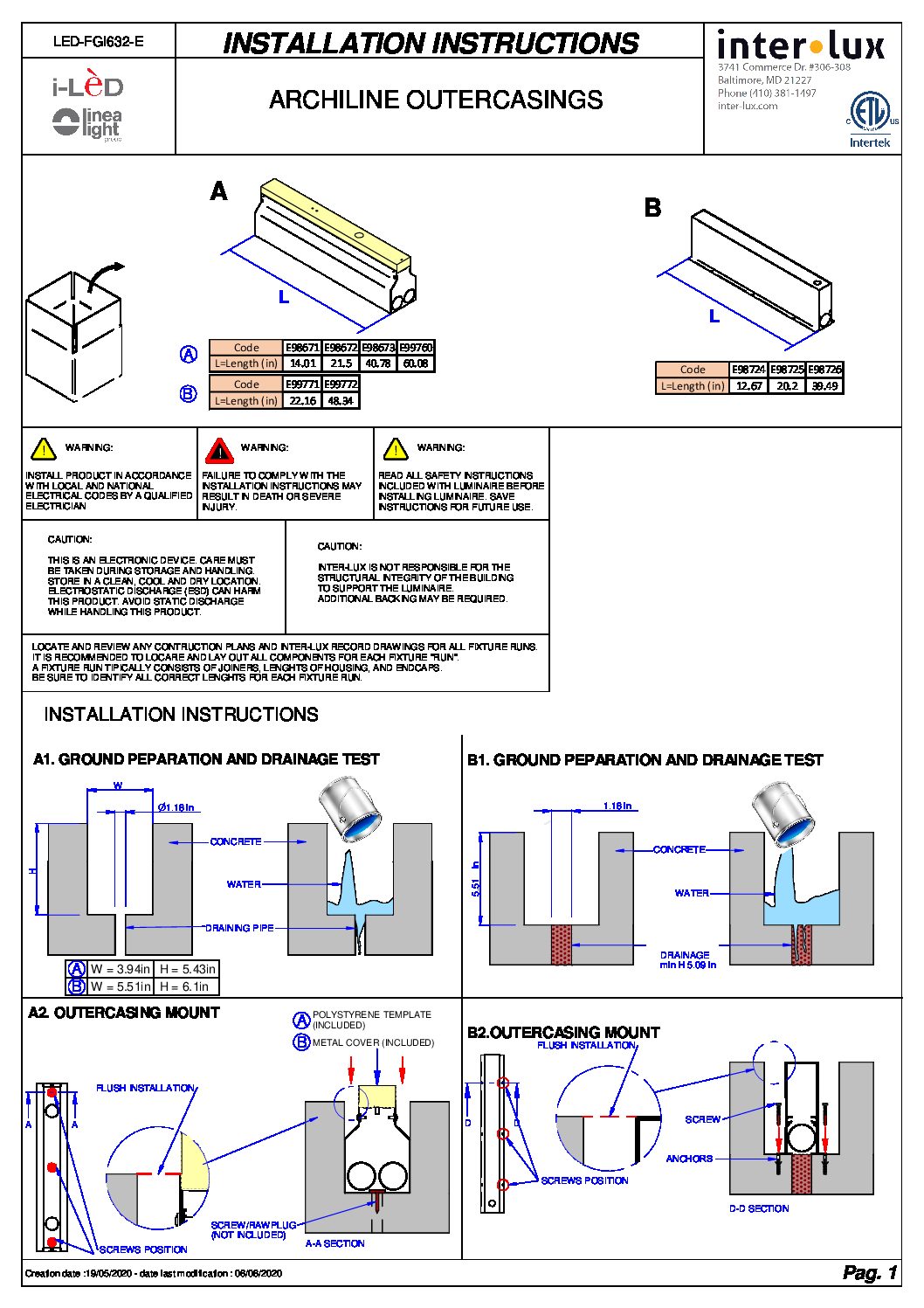

Quickship Housings Available: add QS in front of part number
