General Downlight Round Recessed (GDL)
2.4″ round aperture downlight for wide distribution general illumination. Available with round recessed cone with 0.7″ regressed 1″ diameter light aperture or high transmission, evenly illuminated flush full aperture diffuser.
- Efficacy up to 65 lumens per watt (delivered).
- CREE 2-step MacAdam LEDs.
- CRI > 80 standard, 92+ optional.
- L70 (TM21 Projected 85º C) 55,400 hrs.
- ETL and ETL-C for dry and damp location standard. Wet Location optional (shower rated).

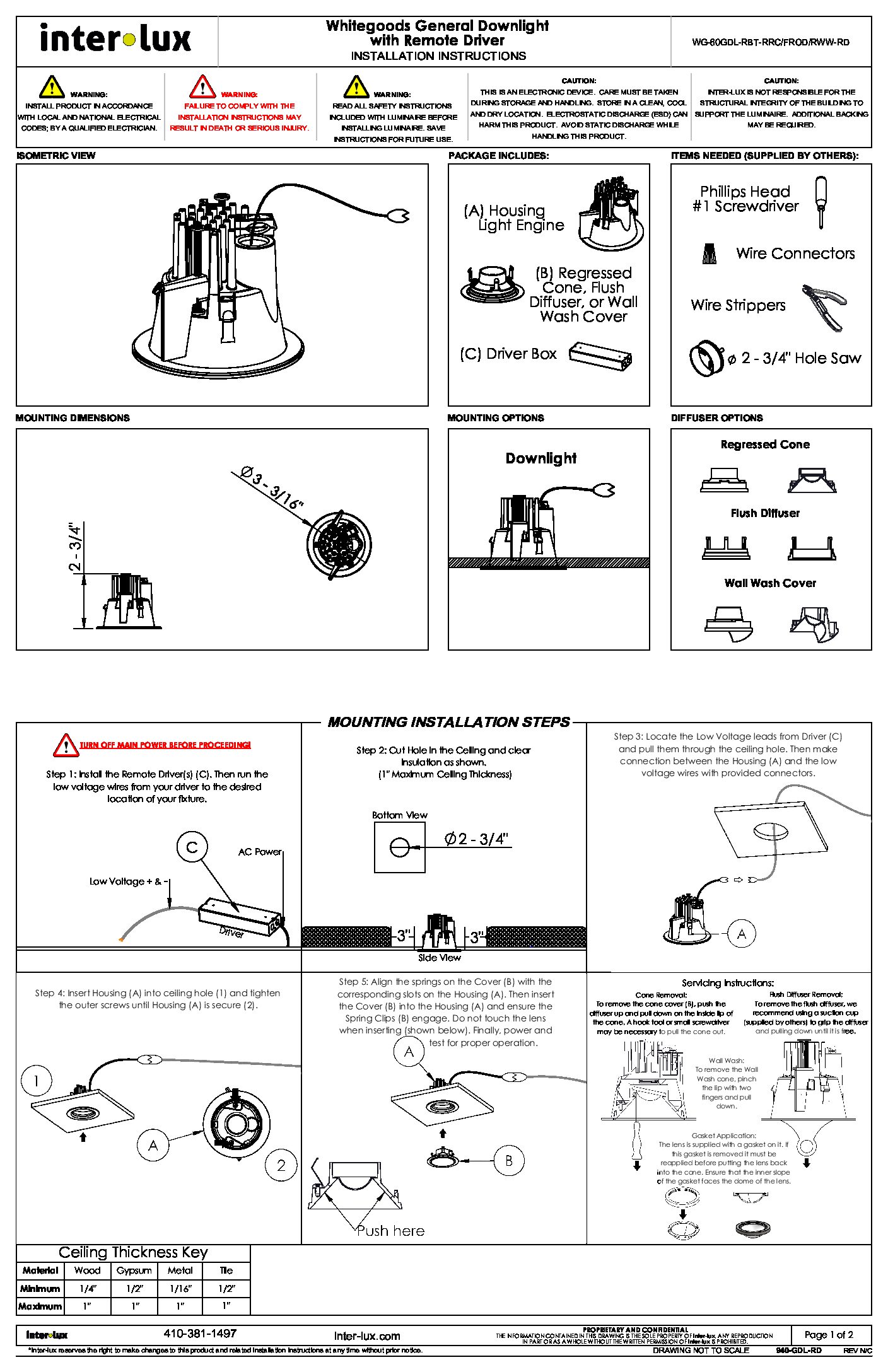

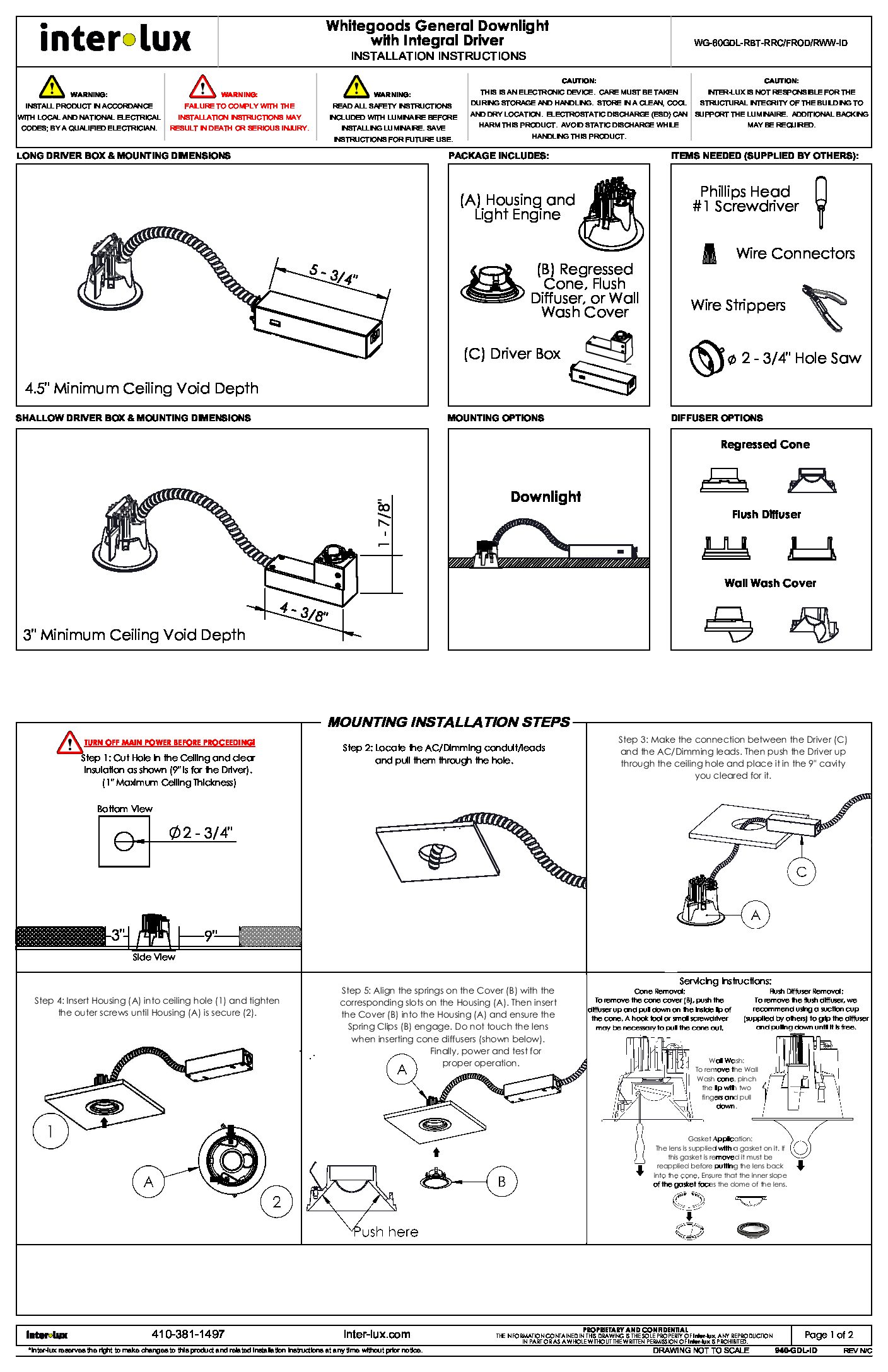

- Luminaire and driver installed and maintained from below the ceiling. Maximum ceiling thickness 1″ (25.4mm).
- Integral driver requires 4.5″ (114mm) minimum ceiling clearance (void). Remote driver optional.
View Downlights Flipbook
Selections download as one PDF

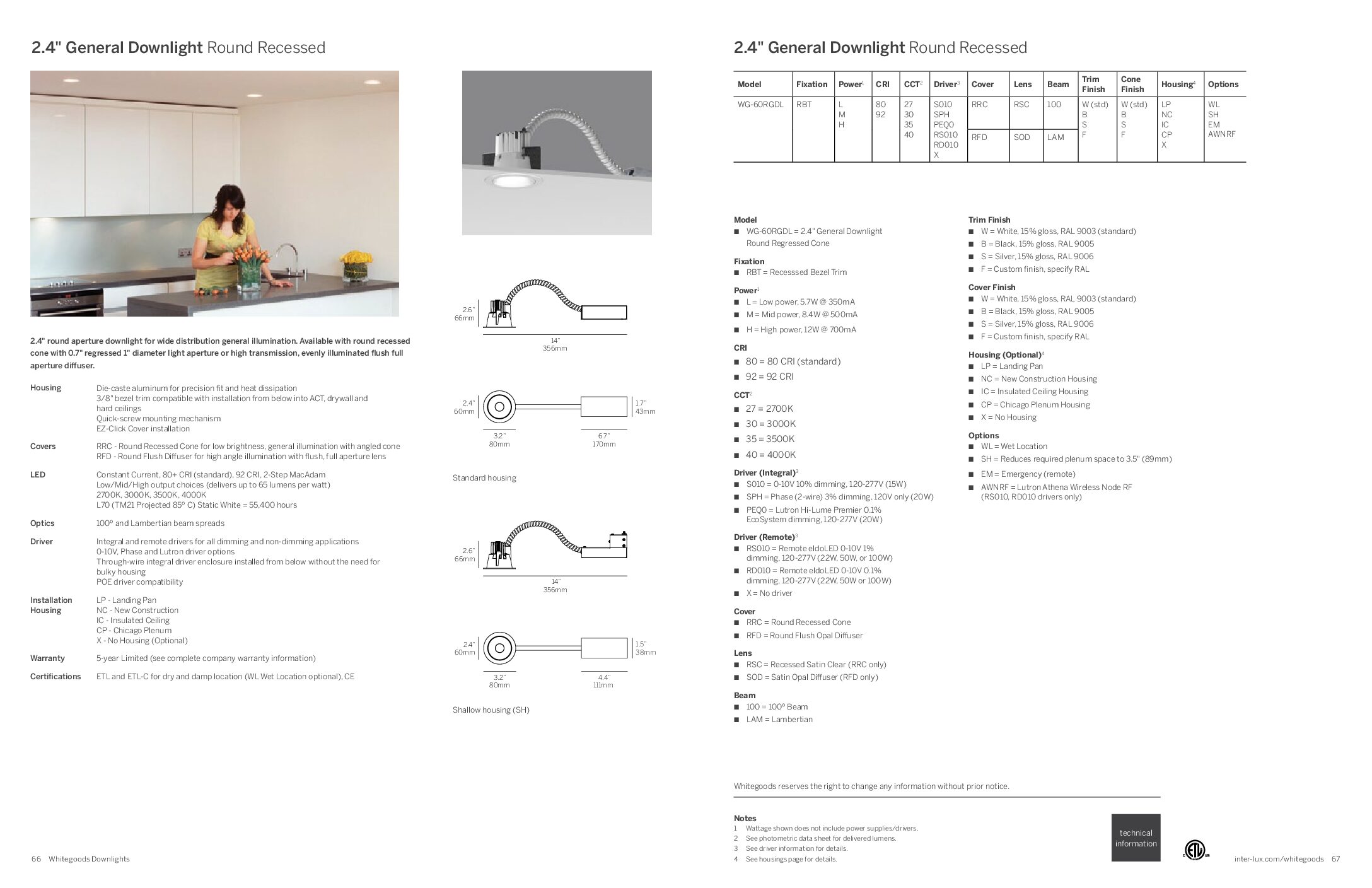

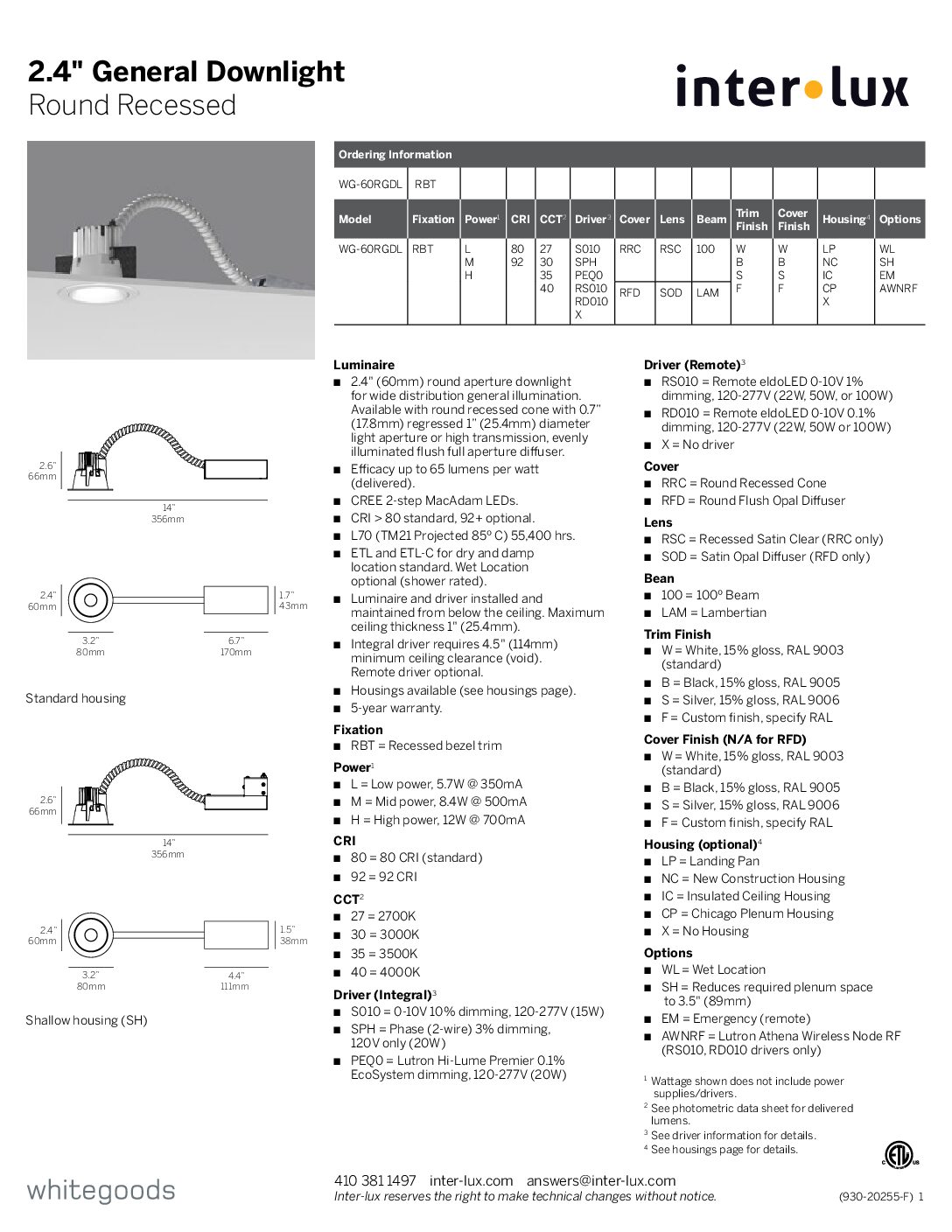

- Spec Page
-

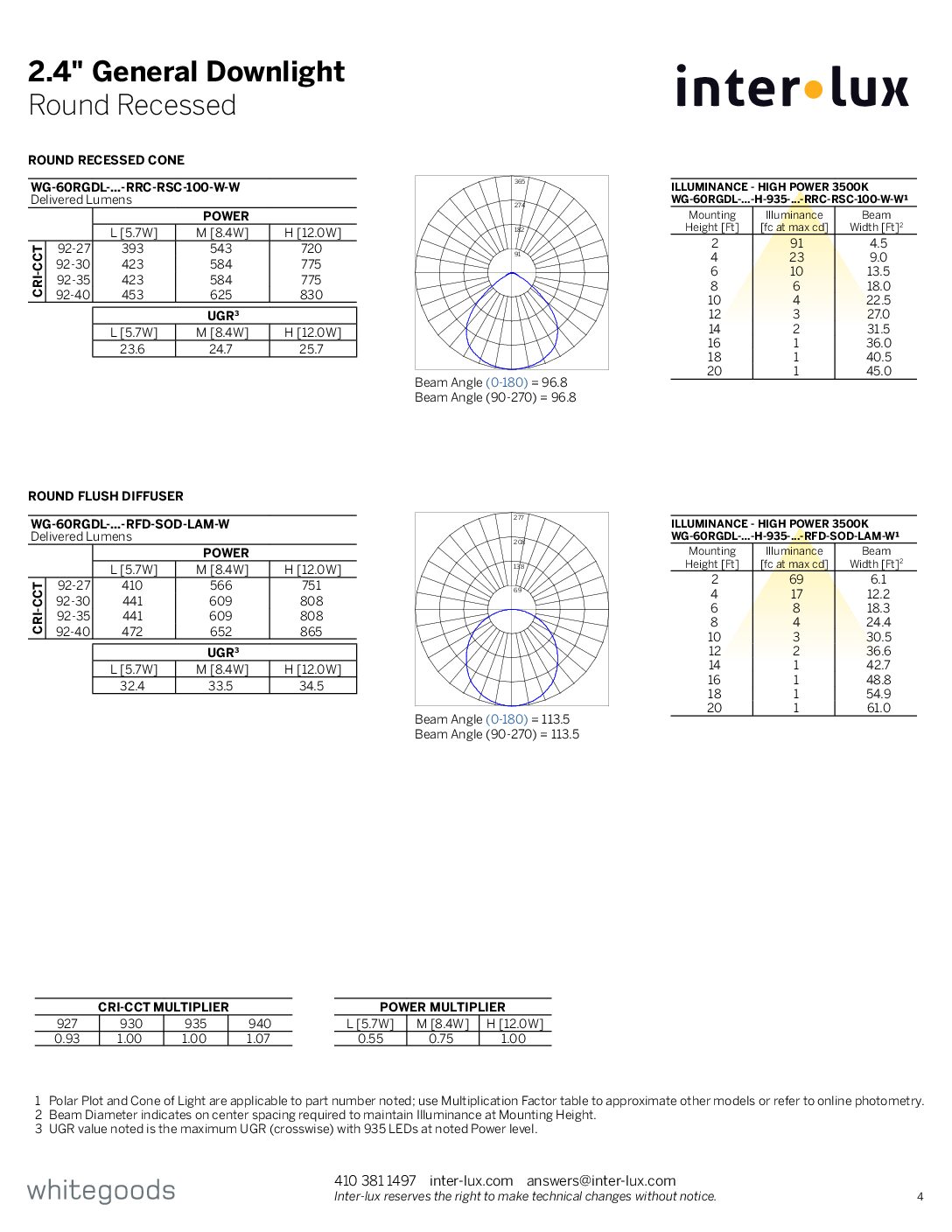

- Photometry
-

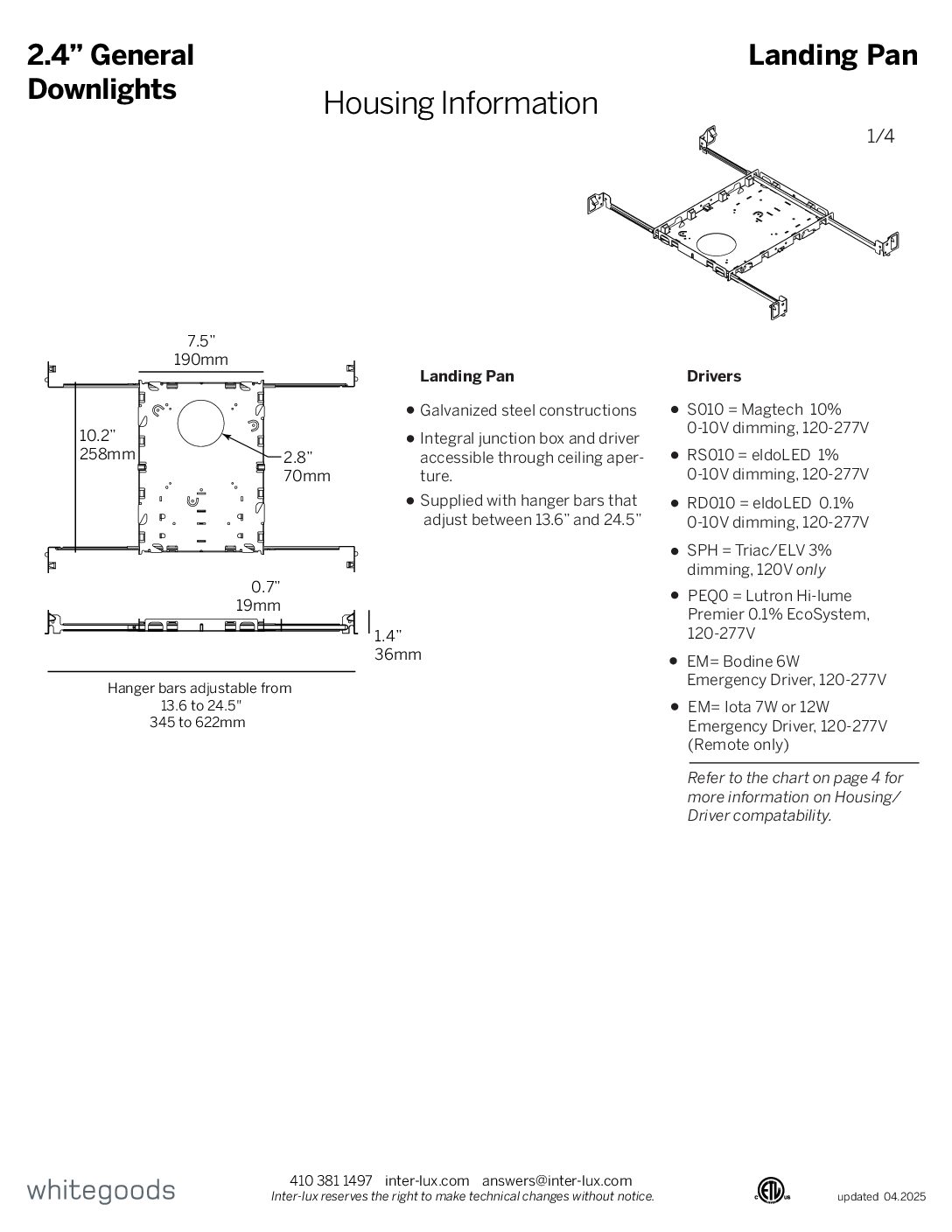

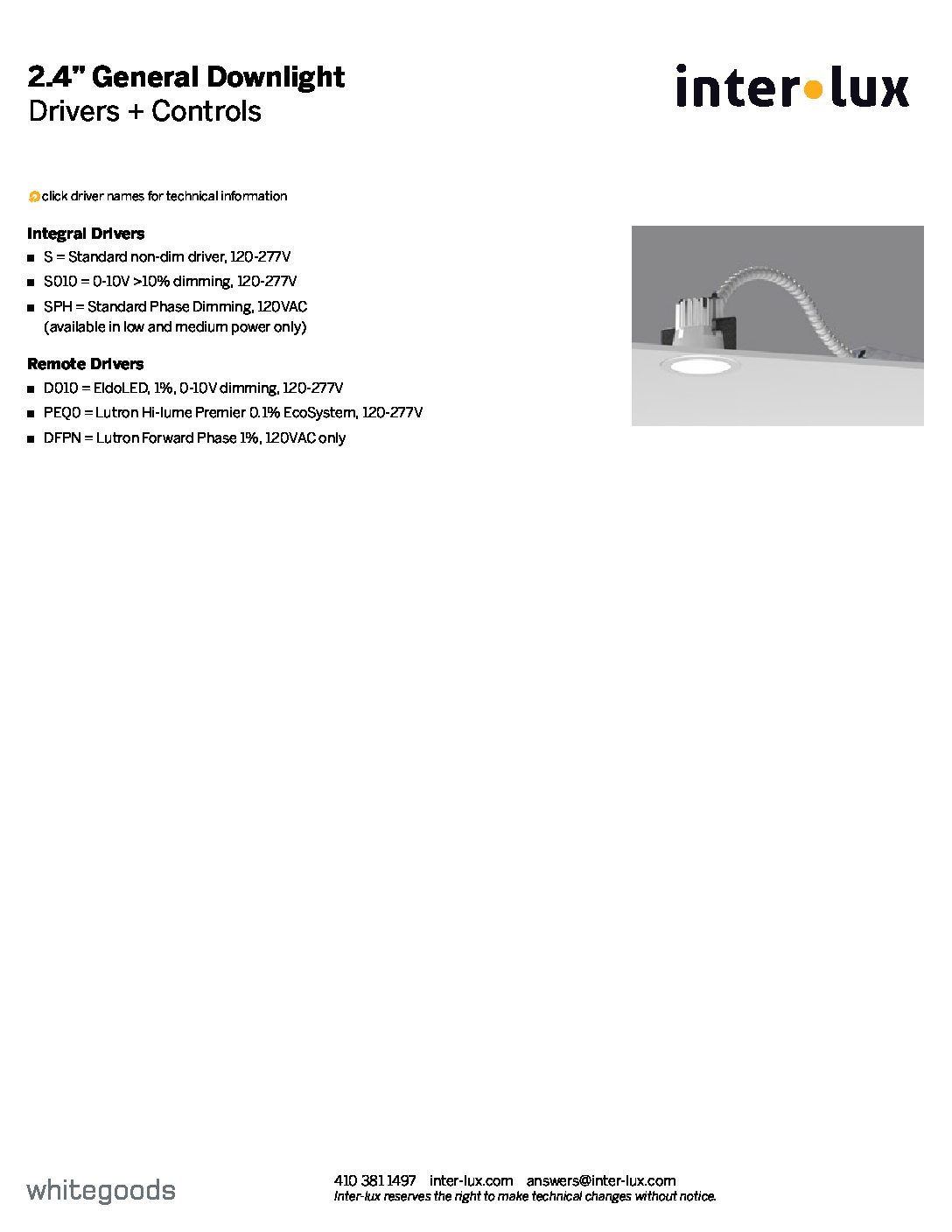

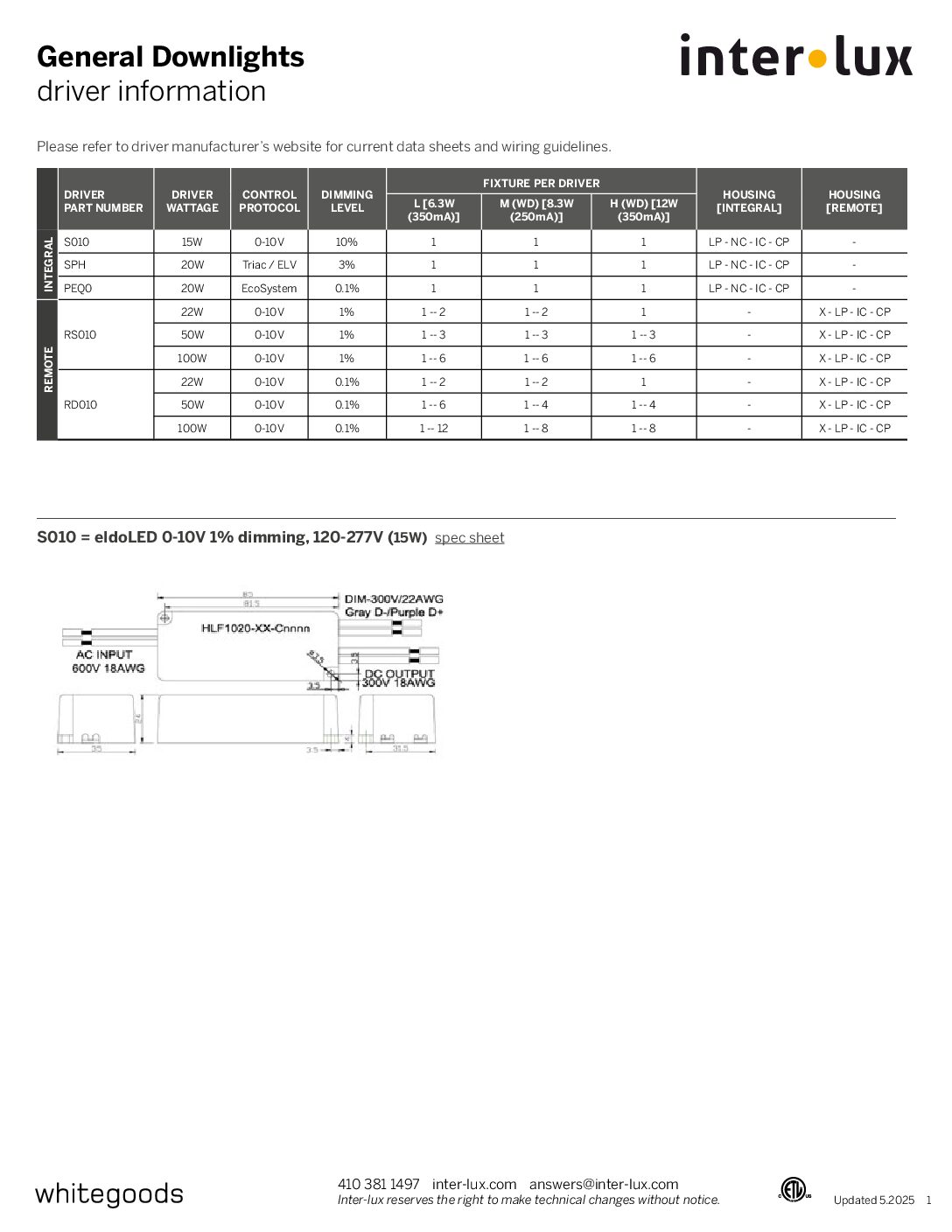

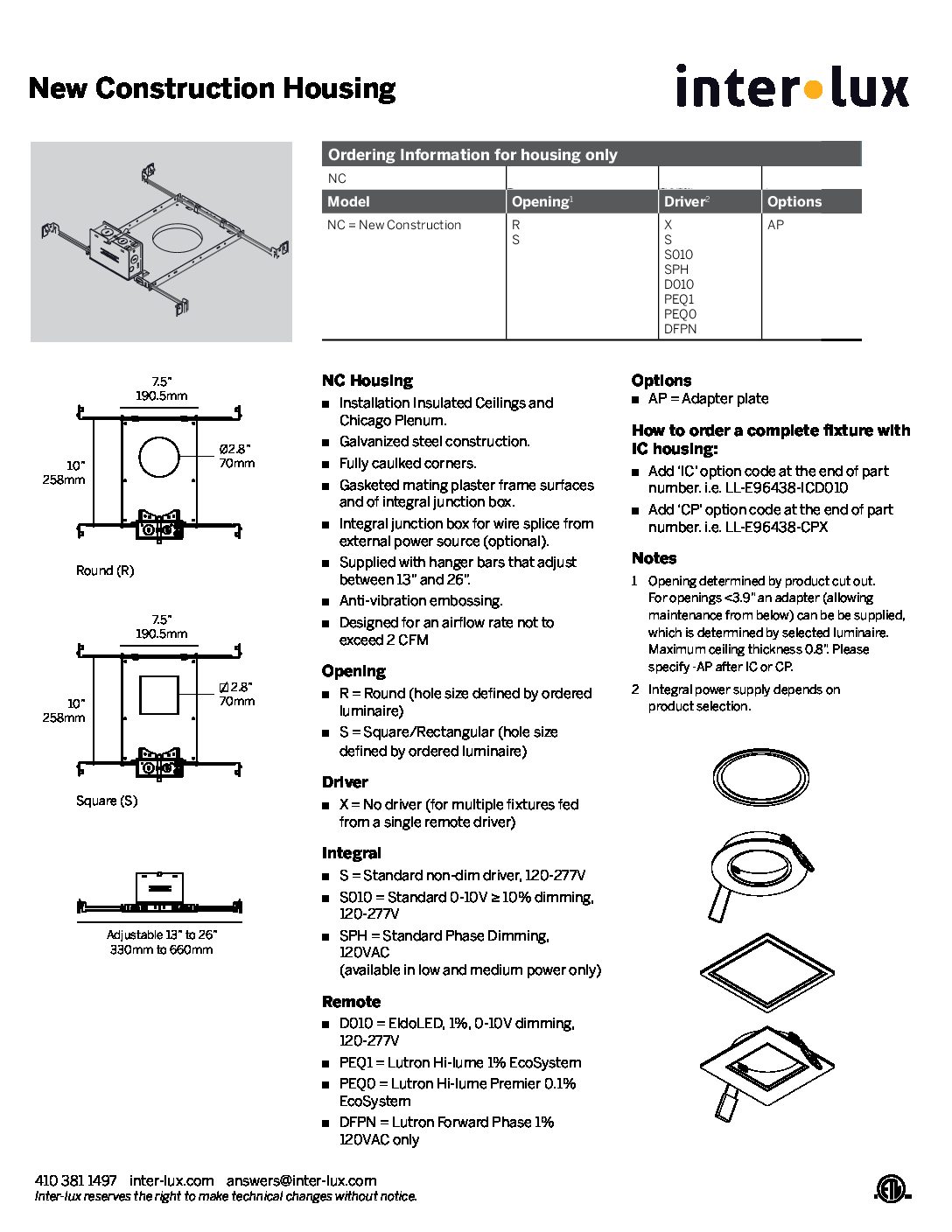

- Housings / Drivers
-
- Emergency Constant Current
-
