Guardian Wall Washer
Guardian is a family of outdoor LED down lights available in different sizes, output and trim finishes. Several beam spreads, color temperatures and recessed casings suitable for brick or concrete installation make Guardian the solution for most outdoor down light needs.
Fixture Body: Open pore anodized and Powder Coated Die-Cast Aluminum, anodized black.
Trim: Open pore anodized and Powder Coated Die-Cast Aluminum. Extra-clear, Tempered glass. Available in Black, Grey and White finish.
Mounting: Outer casing for brick or concrete-mounted installation.
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim (4.3” & 6.1”). Integral 120/277VAC Non-Dim (9.1”).
Wattages/Sizes: 7.2W (4.3”) – 12.6W (6.1”) – 33.6W (9.1”)
IP rating: IP67 for temporary flooding up to 3.28’ depth for up to a maximum of 30 mins.
ETL Certification: ETL, wet location
Optics: Fixed, Wall Washer.
Color temperatures: 2700K – 3000K – 4000K.

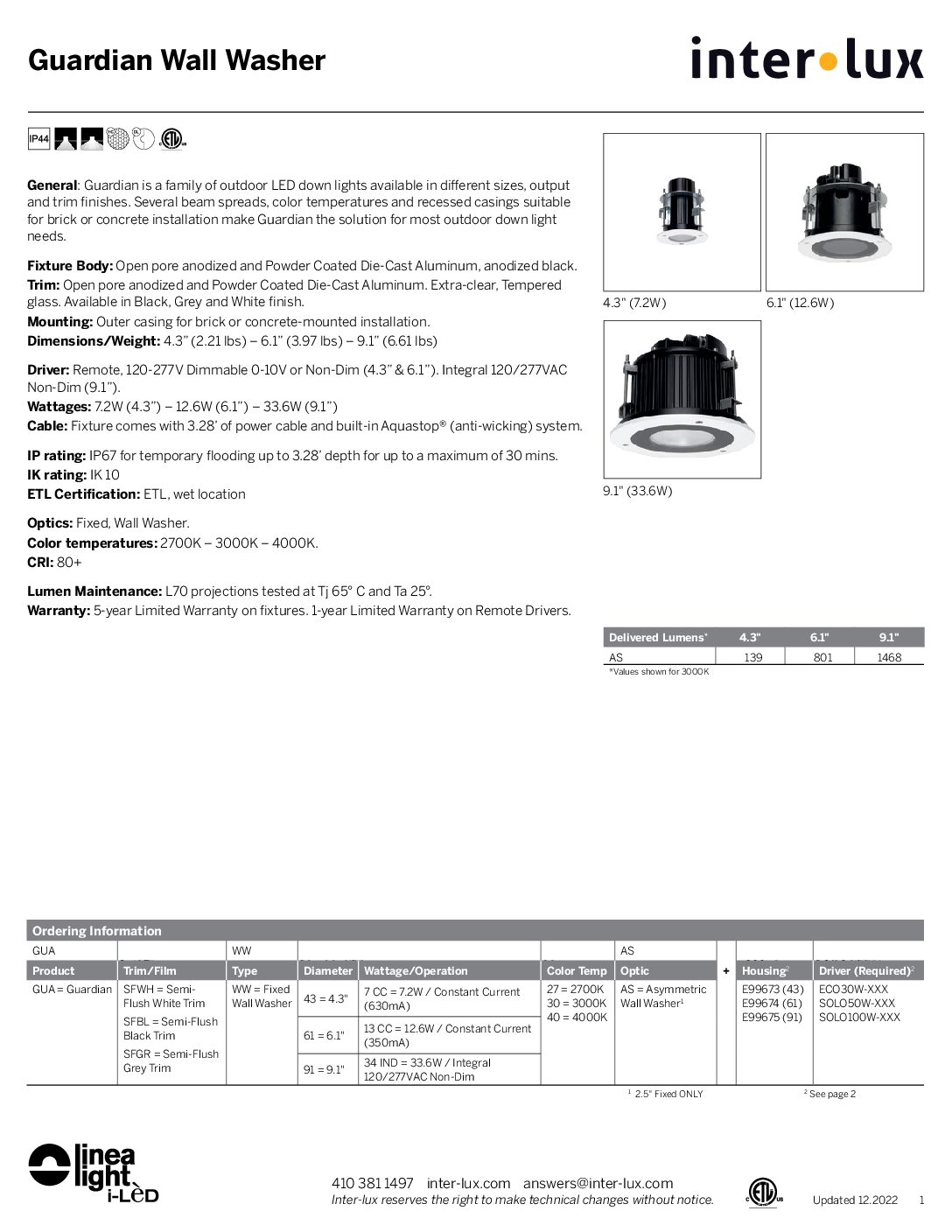

- Spec Page
-

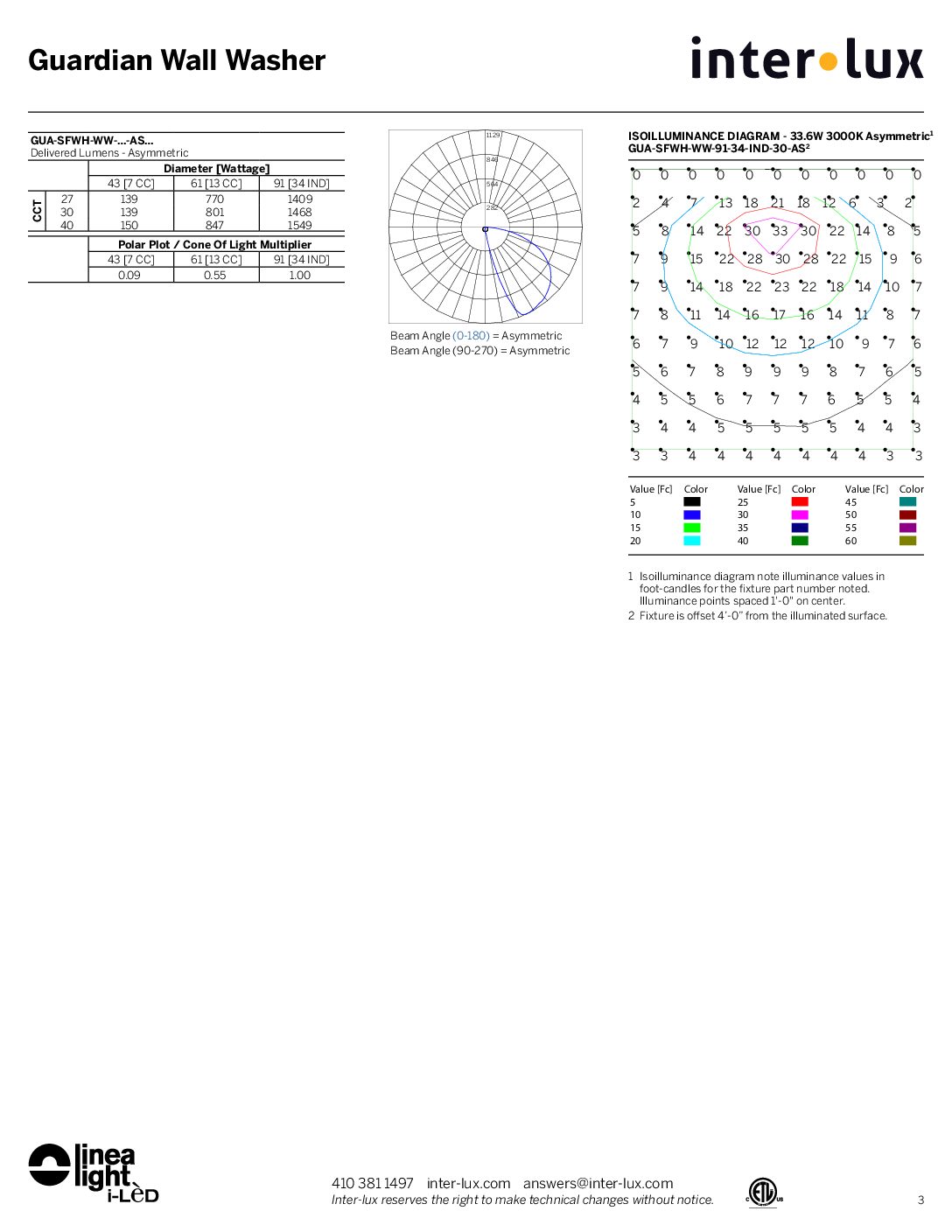

- Photometry
-
