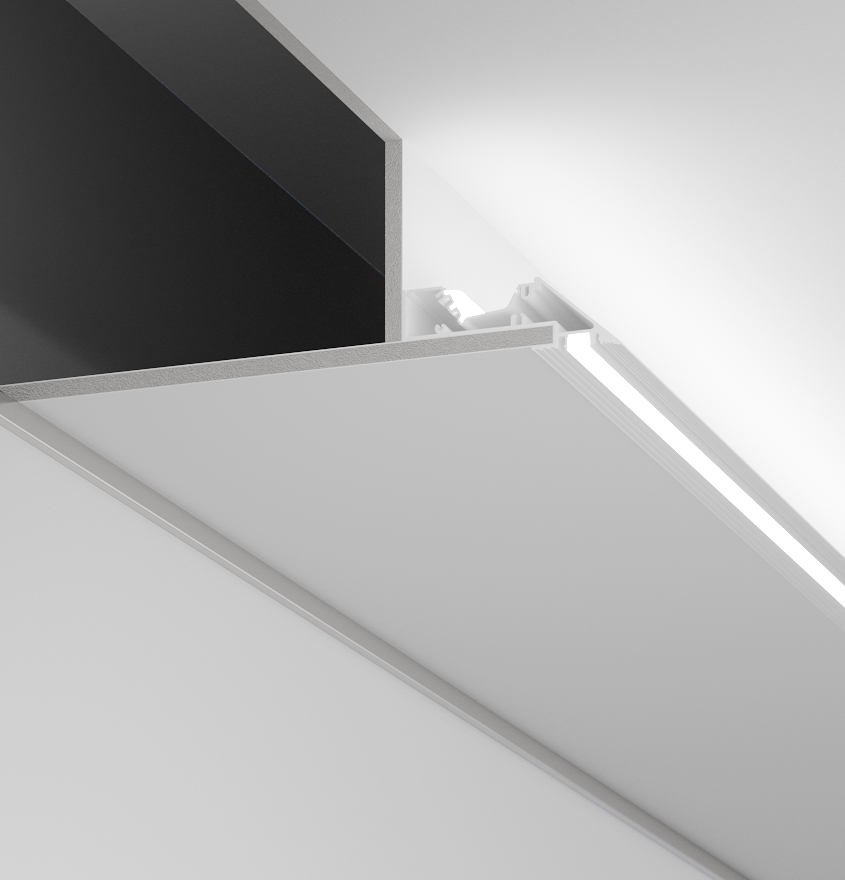

Mini Edgeless Cove + 20 Linear Direct
-
- Continuous plaster-in knife edge cove system that delivers an even wash of directed light to the ceiling above, and redirected light to softly illuminate the back of the cove. Slim recessed line of light at the bottom edge of the cove to provide direct illumination and highlight the perimeter of the ceiling opening.
- Light source positioned for optimum vertical spread of illumination. Extruded aluminum housing, easily installed internal LED tray assembly. Remote driver. Field replaceable LED boards. Powdercoat painted.
- Satin clear diffuser for high efficiency and soft edge beam without striations for Indirect with flush, diffuse lens for Direct.
- Lengths and angles factory cut to exact field dimensions. Standard and custom corners.
- 90+ CRI, 3 Step MacAdam.
- L70 (TM21 Projected 85ºC), 60,000 hours. RGBW 50,000 hours. WD 36,000 hours.
- ETL and ETL-C for dry and damp locations.

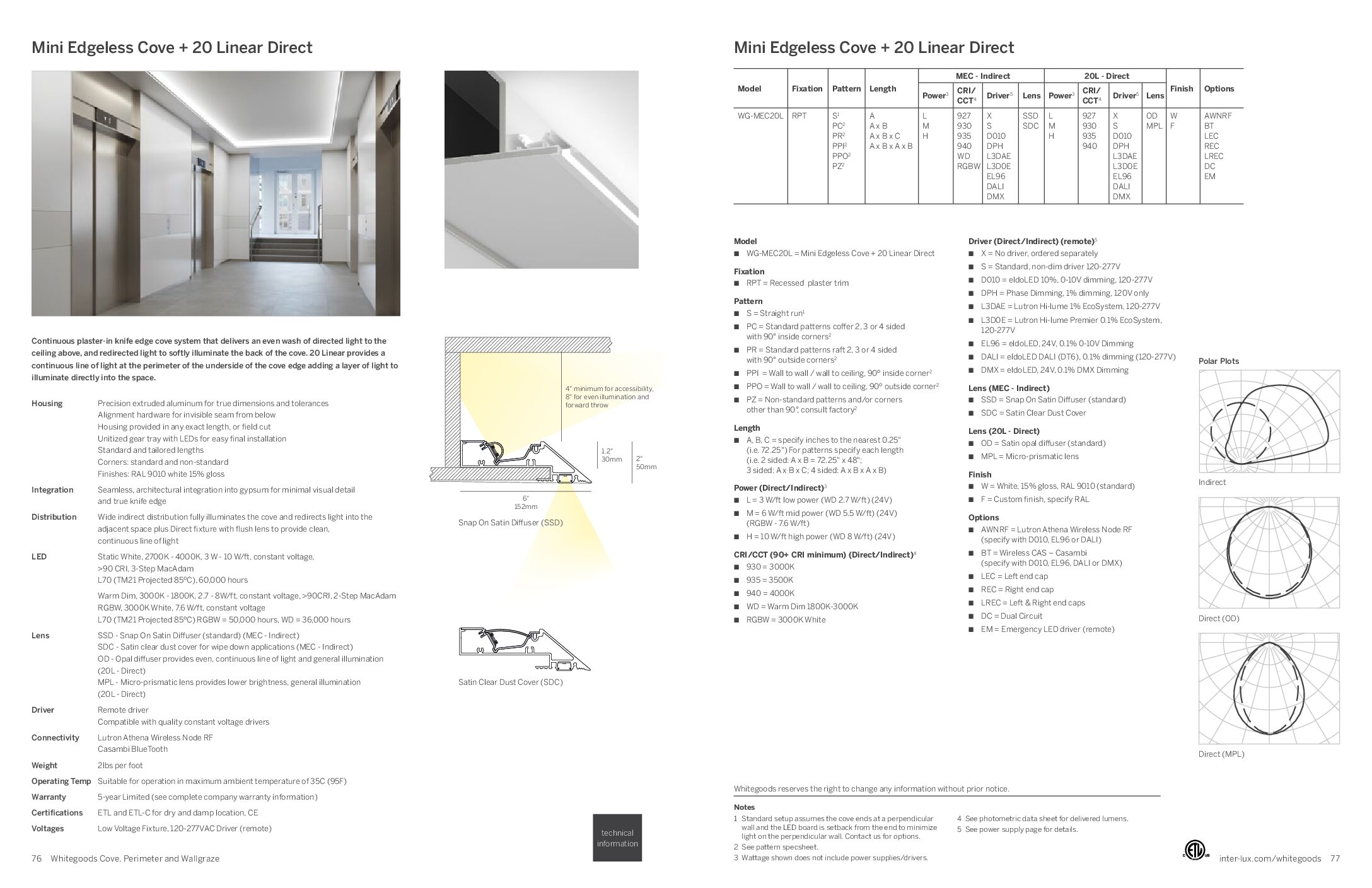

View Coves Perimeter Flipbook >
Selections download as one PDF

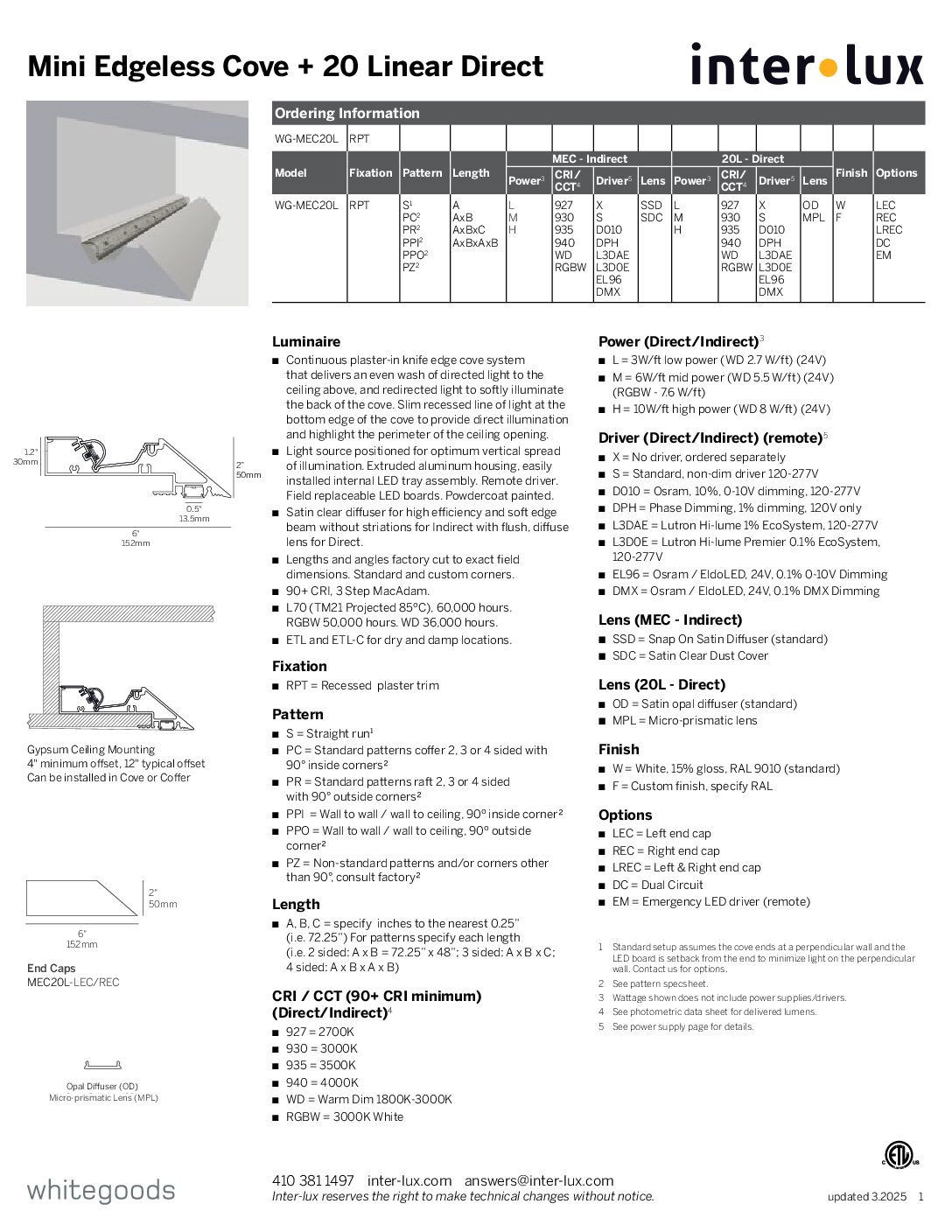

- Spec Page
-

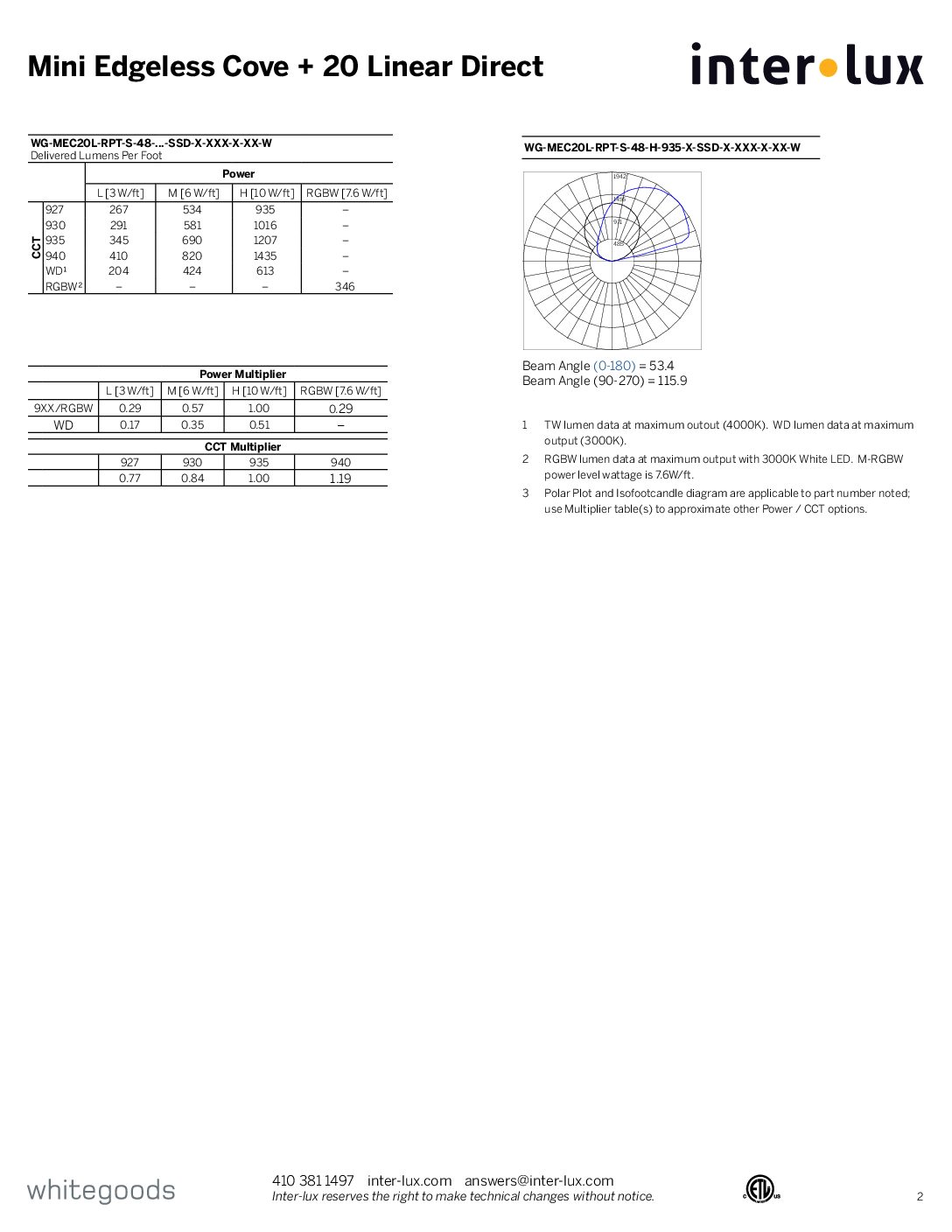

- Photometry
-

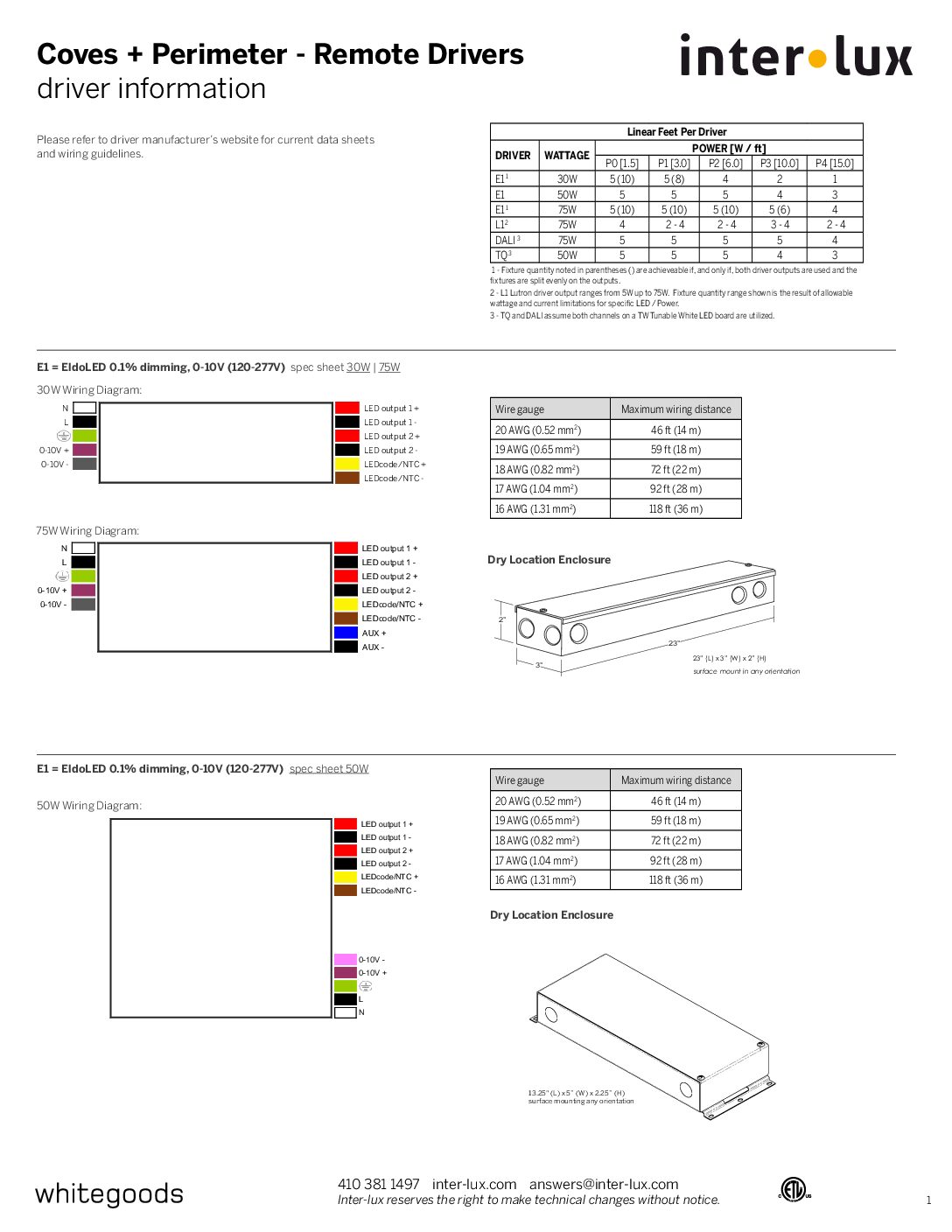

- Driver Information Constant Current
-
- Emergency Constant Current
-

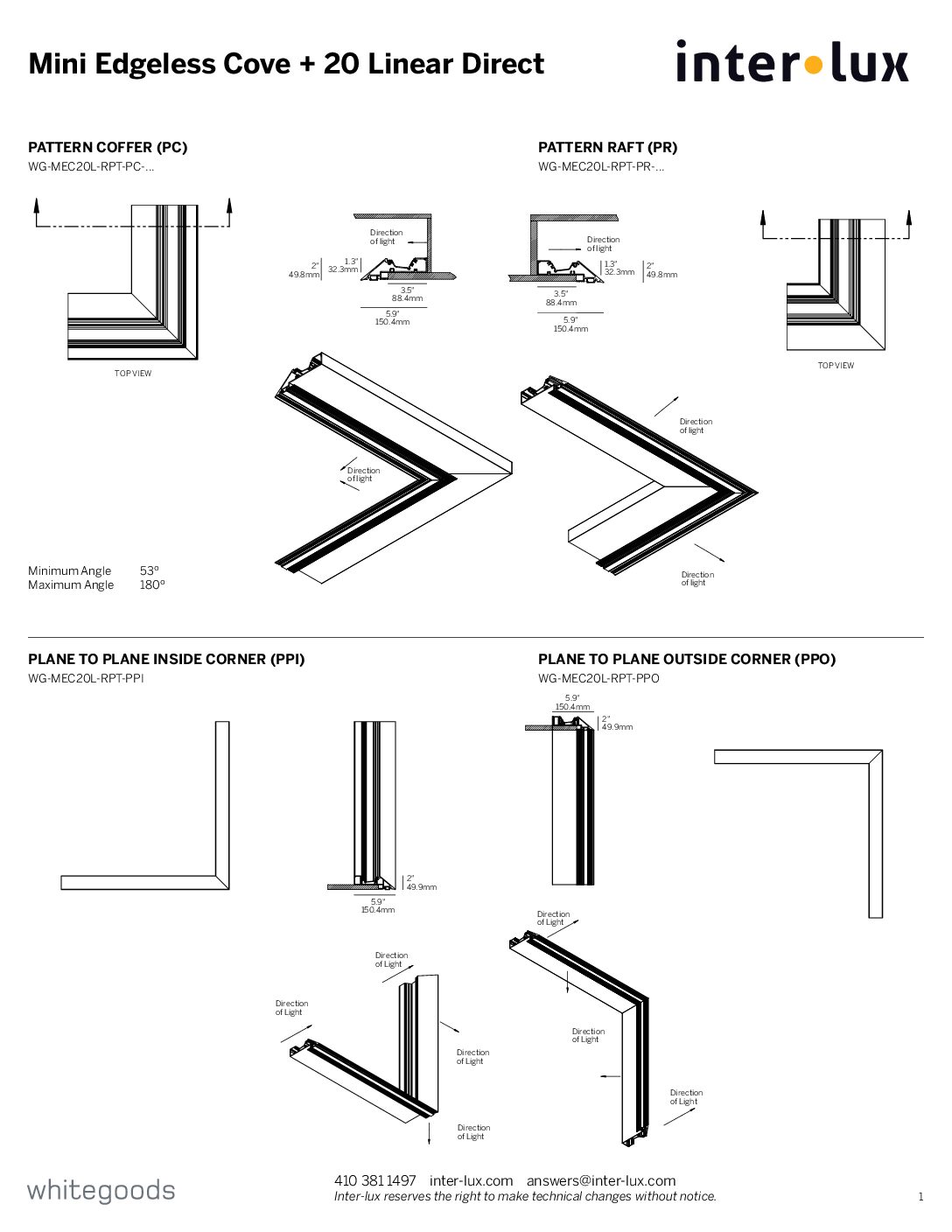

- Details
-
