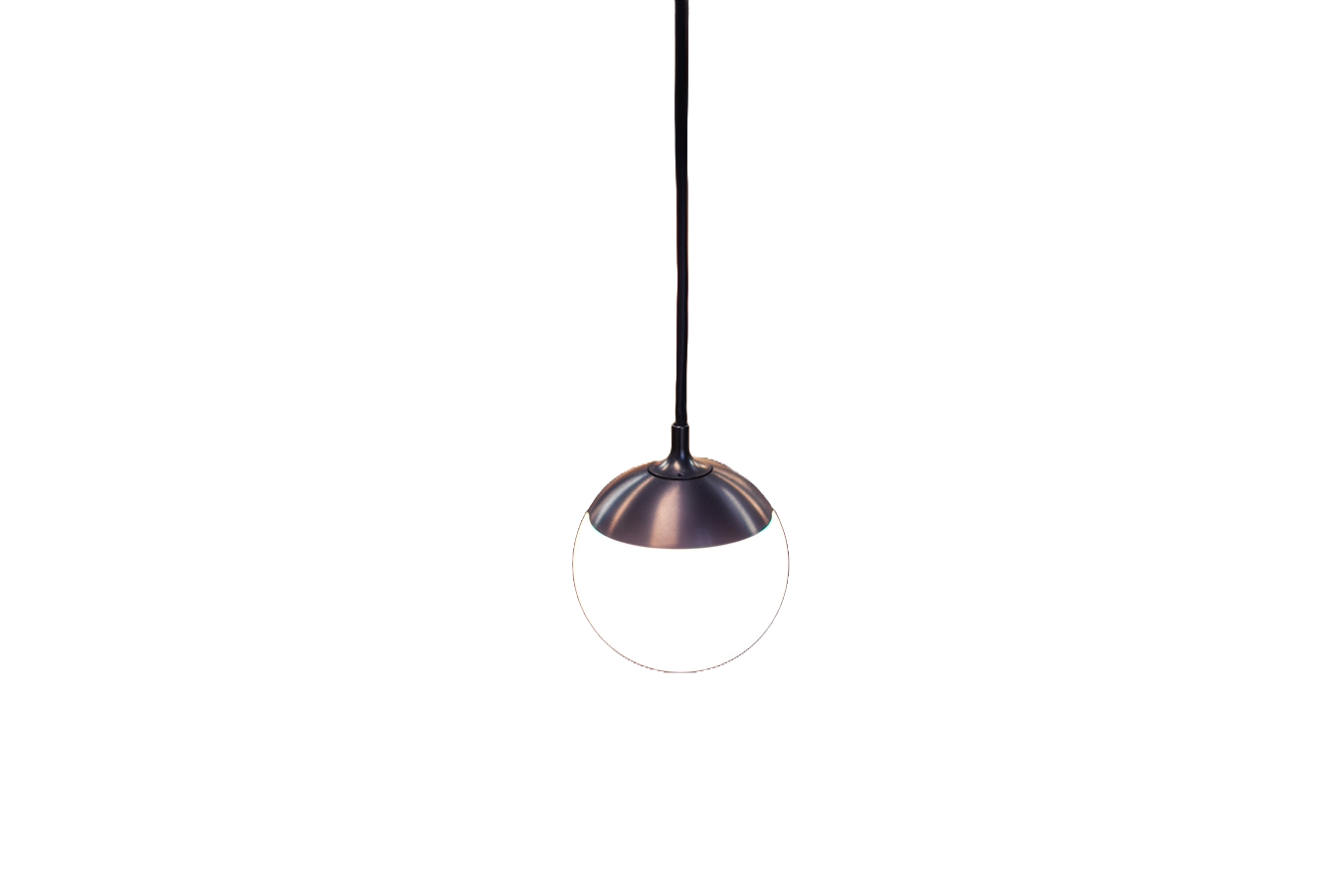

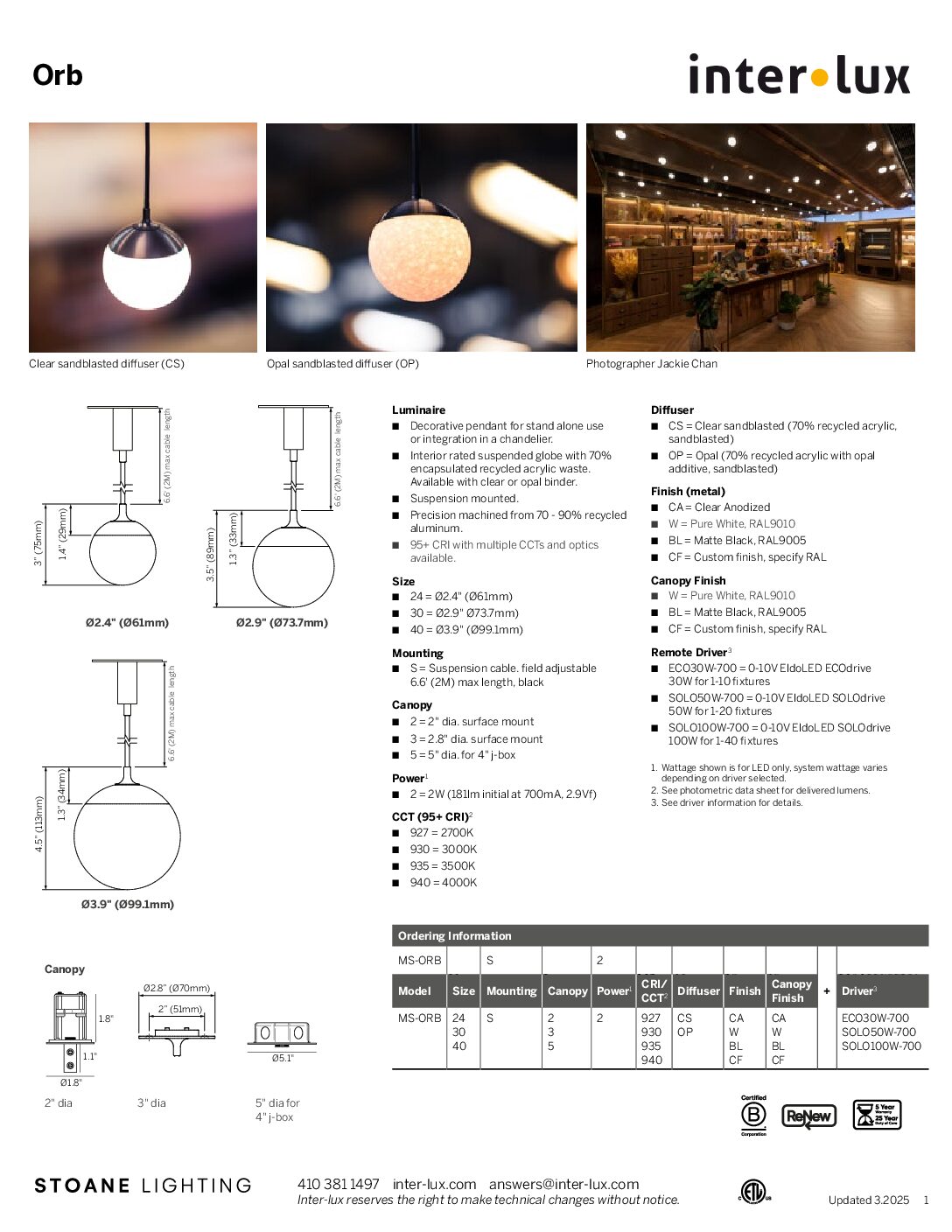

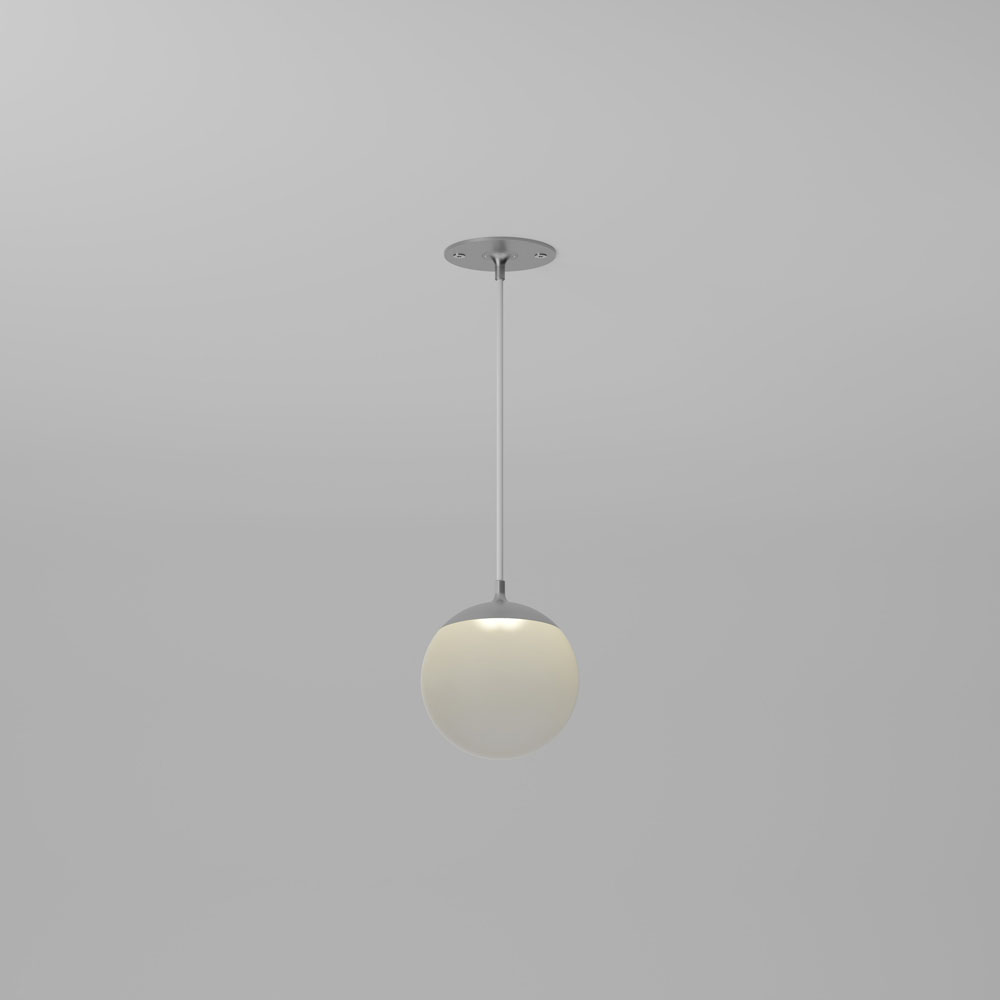

Orb

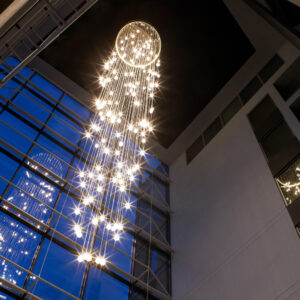

Decorative pendant for stand alone use or integration in a chandelier.
- Interior rated suspended globe with 70% encapsulated recycled acrylic waste. Available with clear or opal binder.
- Suspension mounted.
- Precision machined from 70 – 90% recycled aluminum.
- 95+ CRI with multiple CCTs and optics available.
Size
- 24 = Ø2.4″ (Ø61mm)
- 30 = Ø2.9″ Ø73.7mm)
- 40 = Ø3.9″ (Ø99.1mm)
Mounting
- S = Suspension cable. field adjustable 6.6′ (2M) max length, black
Canopy
- 2 = 2″ dia. surface mount
- 3= 2.8″ dia. surface mount
- 5 = 5″ dia. for 4″ j-box
Power
- 2 = 2W (181lm initial at 700mA, 2.9Vf)
CCT (95+ CRI)
- 927 = 2700K
- 930 = 3000K
- 935 = 3500K
- 940 = 4000K
Diffuser

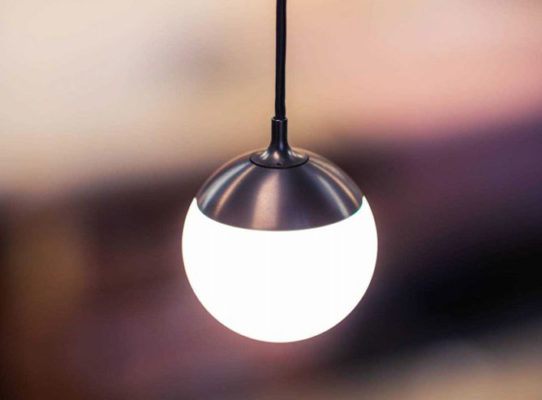

- CS = Clear sandblasted (70% recycled acrylic, sandblasted)

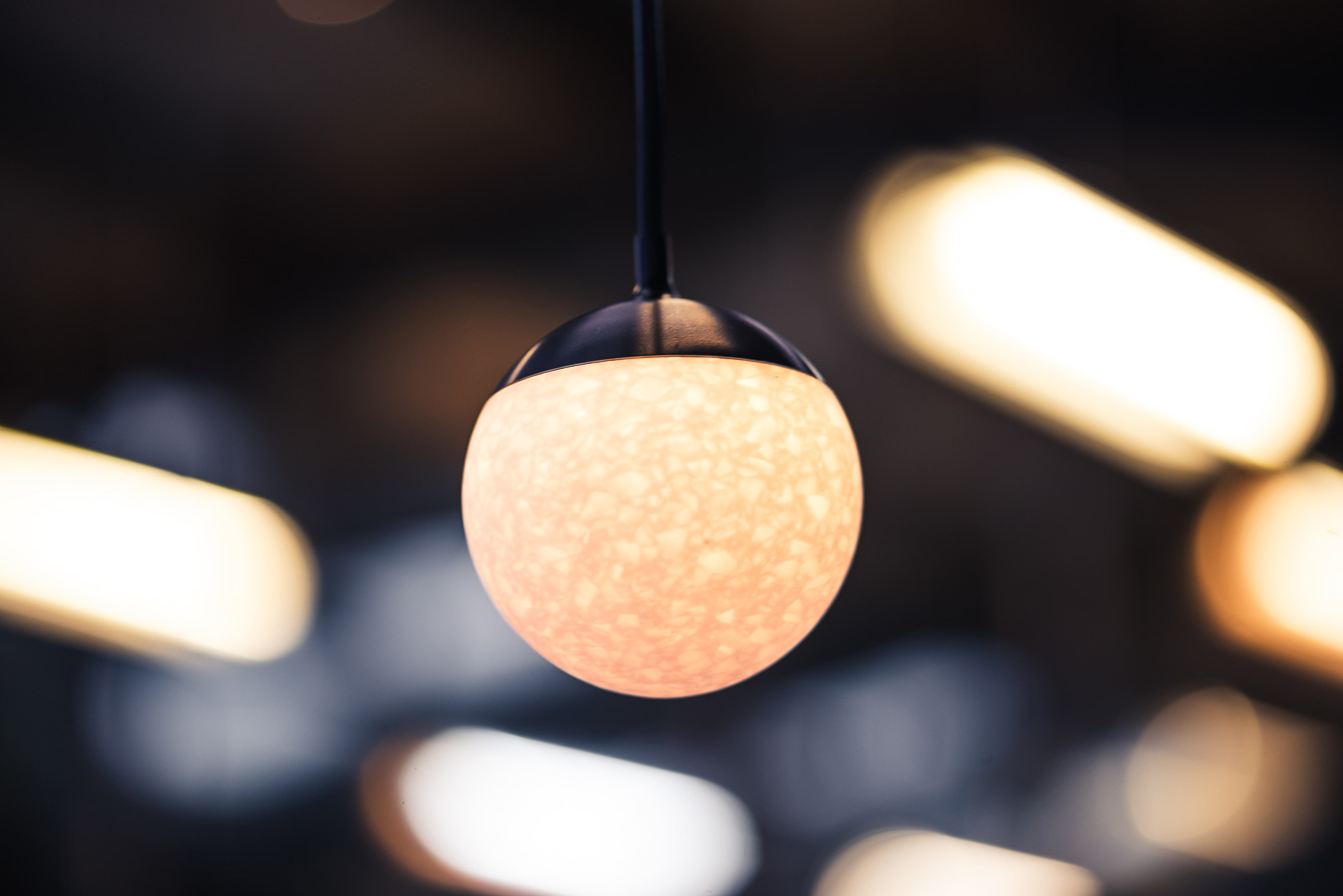

- OP = Opal (70% recycled acrylic with opal additive, sandblasted)
Finish (metal)
- CA = Clear Anodized
- W = Pure White, RAL9010
- BL = Matte Black, RAL9005
- CF = Custom finish, specify RAL
Canopy Finish
- W = Pure White, RAL9010
- BL = Matte Black, RAL9005
- CF = Custom finish, specify RAL

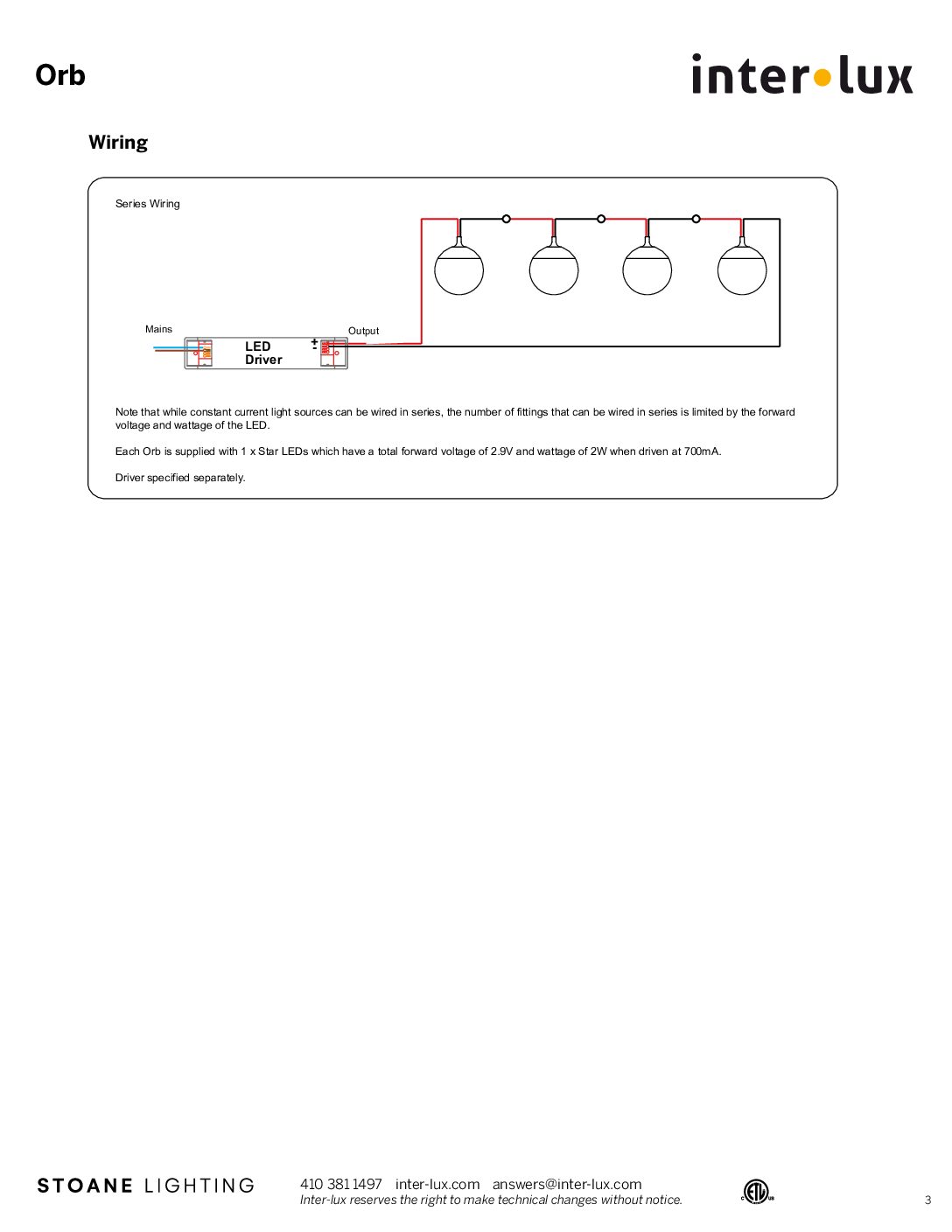

Remote Driver
- ECO30W-700 = 0-10V EldoLED ECOdrive 30W for 1-10 fixtures
- SOLO50W-700 = 0-10V EldoLED SOLOdrive 50W for 1-16 fixtures
- SOLO100W-700 = 0-10V EldoLED SOLOdrive 100W for 1-32 fixtures
