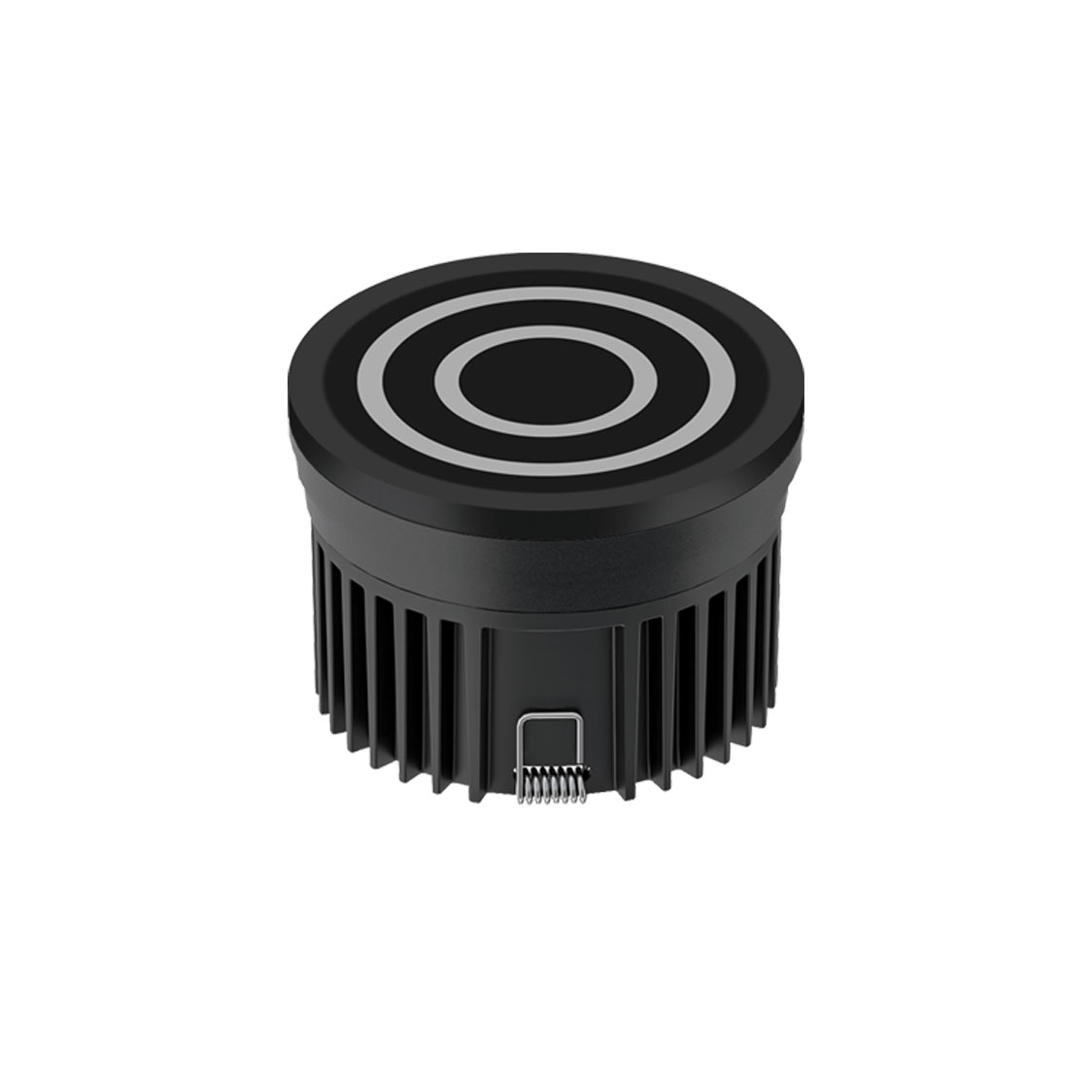

ORMA Concentric
Orma is a compact and shallow family of round LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting. The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market.
Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm)
Trim: Trimless version has Extra-clear, Tempered glass with silk-screening on underside – Semi-flush version has clear glass rings and sandblasted rounds.
Drive-over: 1.6″/2.2” up to 4,409 lbs.
Walk-over: 3.4″/5.0″ walk-over.
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages (CC/CV) / Sizes: 1.5W (1.65″, CV Only) – 1W/1.5W (2.2″) – 2W/2.5W (3.4″) – 4W/5W (5″)
IP rating: IP68
ETL Certification: ETL, wet location
Optics: General Illumination / Concentric Rings of light.
Color temperatures: 2700K – 3000K – 4000K.

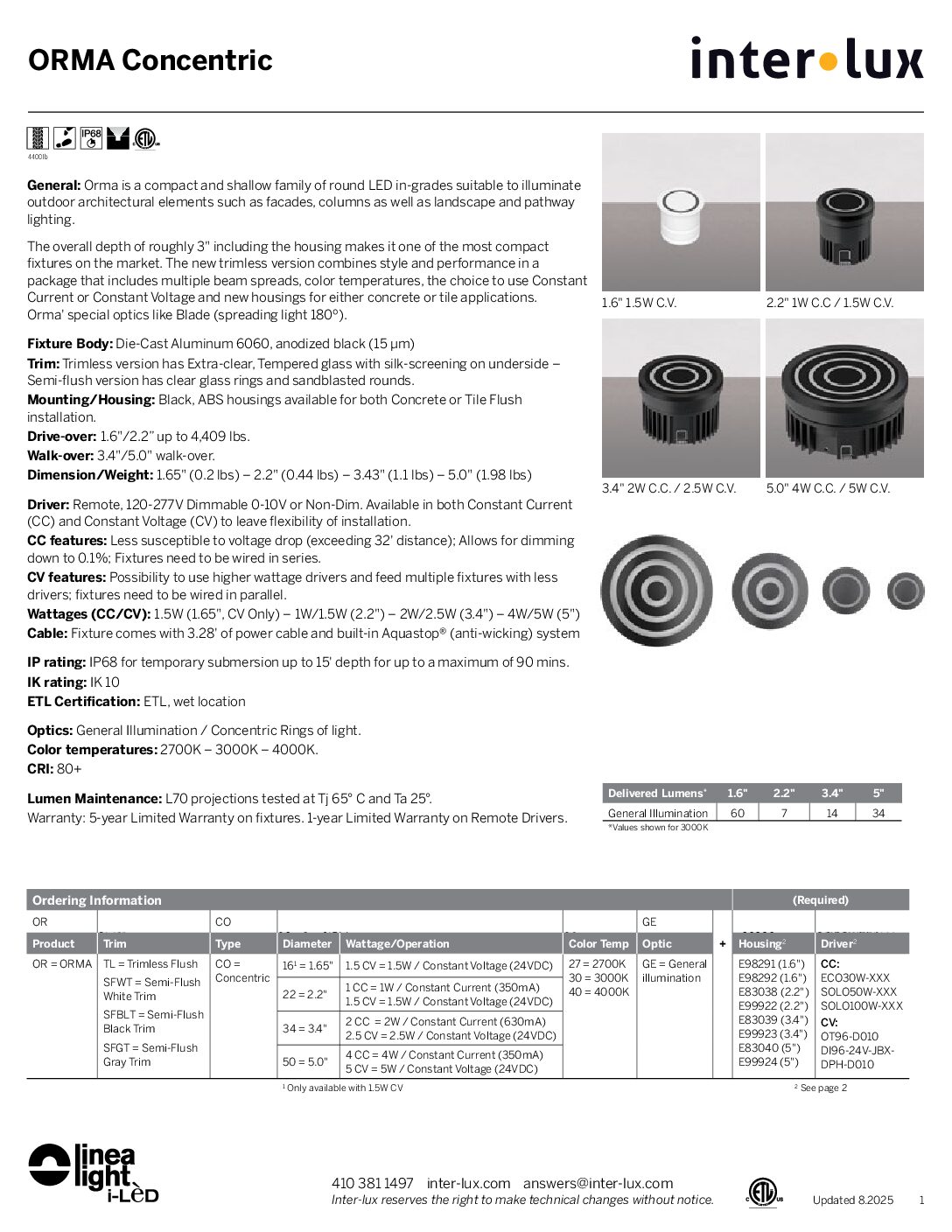

• View + download Orma brochure
Quickship Housings Available: add QS in front of part number

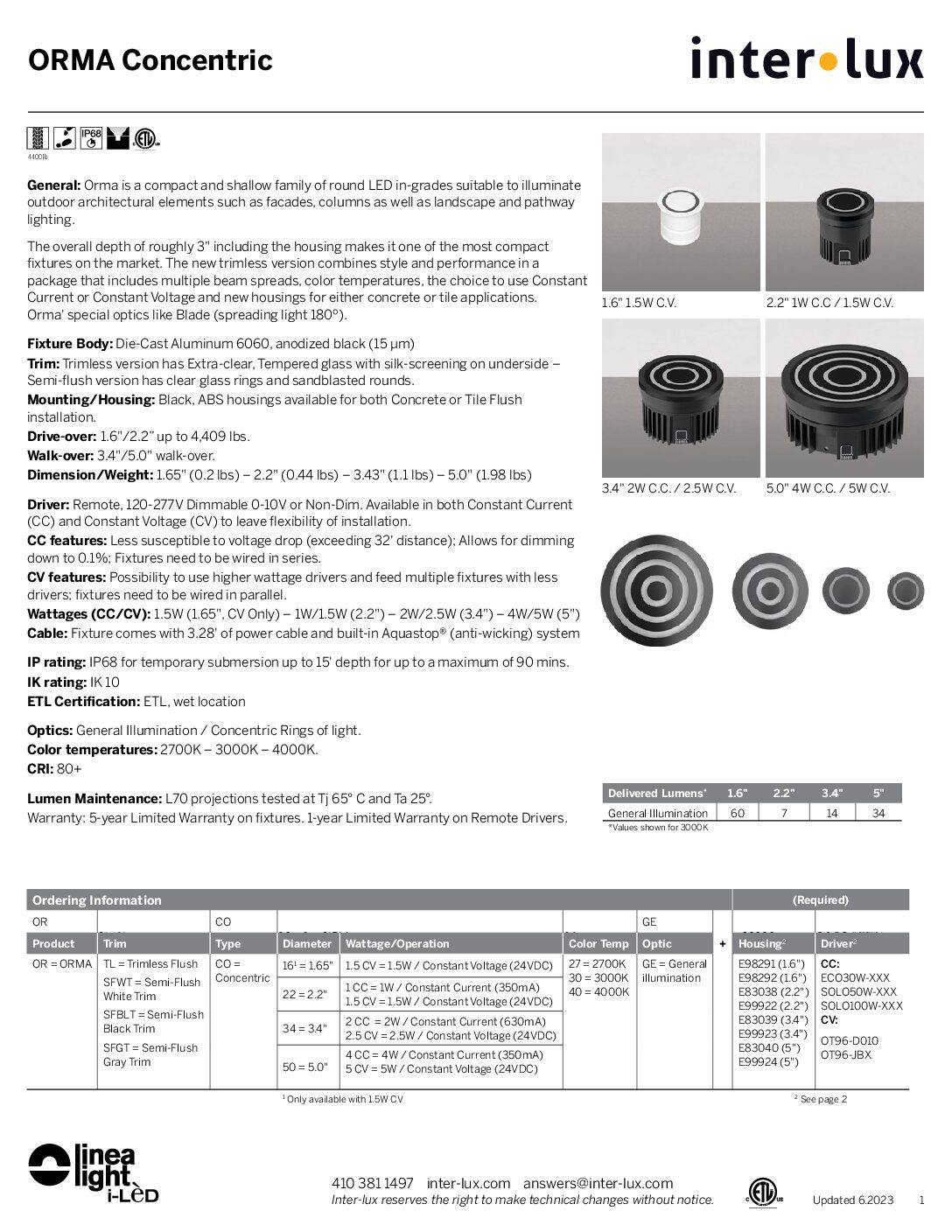

- Spec Page
-

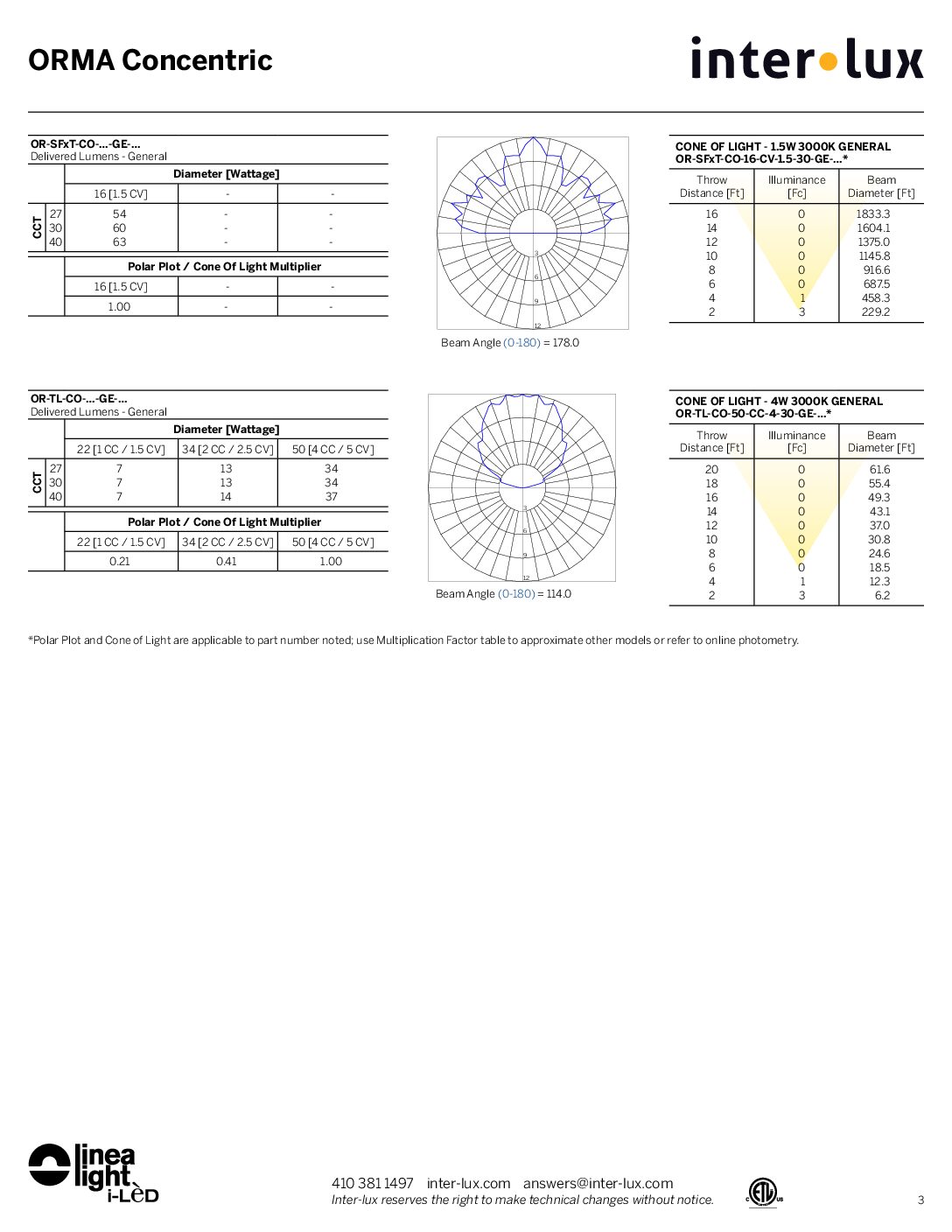

- Photometry
-
