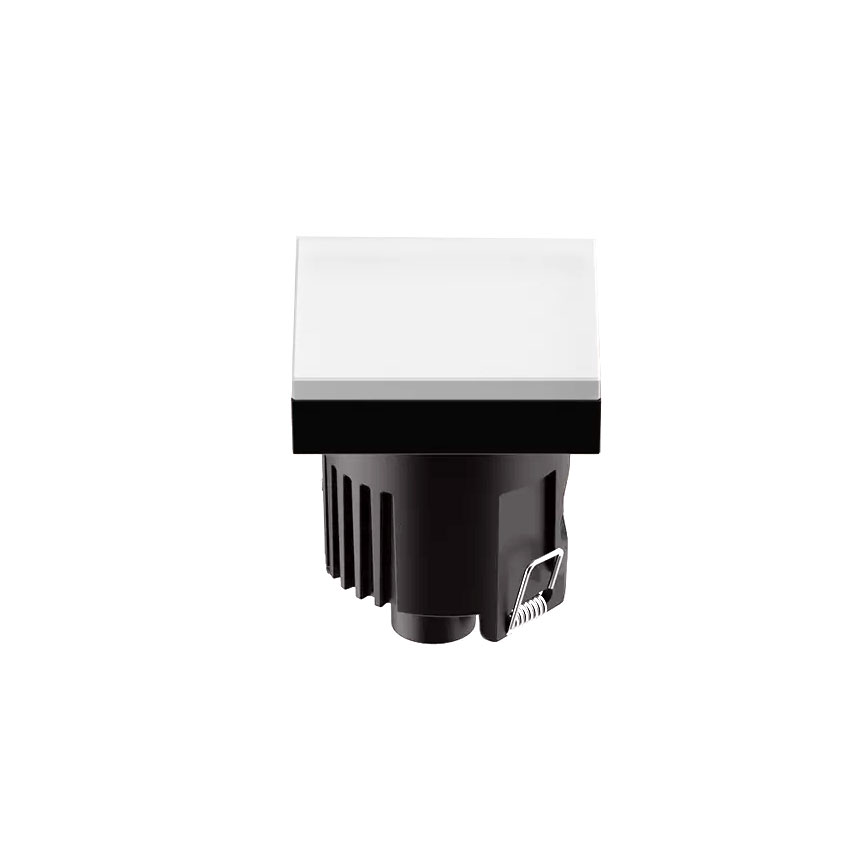

ORMA Square Trimless Flush Frosted
Orma is a compact and shallow family of round and square LED in-grades suitable to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting.
The overall depth of roughly 3″ including the housing makes it one of the most compact fixtures on the market. The new trimless version combines style and performance in a package that includes multiple beam spreads, color temperatures, the choice to use Constant Current or Constant Voltage and new housings for either concrete or tile applications.
Fixture Body: Die-Cast Aluminum 6060, anodized black (15 μm). 1.4″ version is made of stainless steel.
Trim: Trimless. Glass is Frosted, Tempered and Anti-slip.
Mounting/Housing: Black, ABS casings available for Concrete installation.
Drive-over: Up to 4,409 lbs.
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. Available in both Constant Current
(CC) and Constant Voltage (CV) to leave flexibility of installation.
CC features: Less susceptible to voltage drop (exceeding 32′ distance); Allows for dimming
down to 0.1%; Fixtures need to be wired in series.
CV features: Possibility to use higher wattage drivers and feed multiple fixtures with less drivers; fixtures need to be wired in parallel.
Wattages (CC/CV): 1W/1.5W (1.4″) – 1.5W/2W (2.4″) – 2W/2.5W (3.5″).
IP rating: IP68
ETL Certification: ETL, wet location.
Optics: Fixed, Diffused.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+

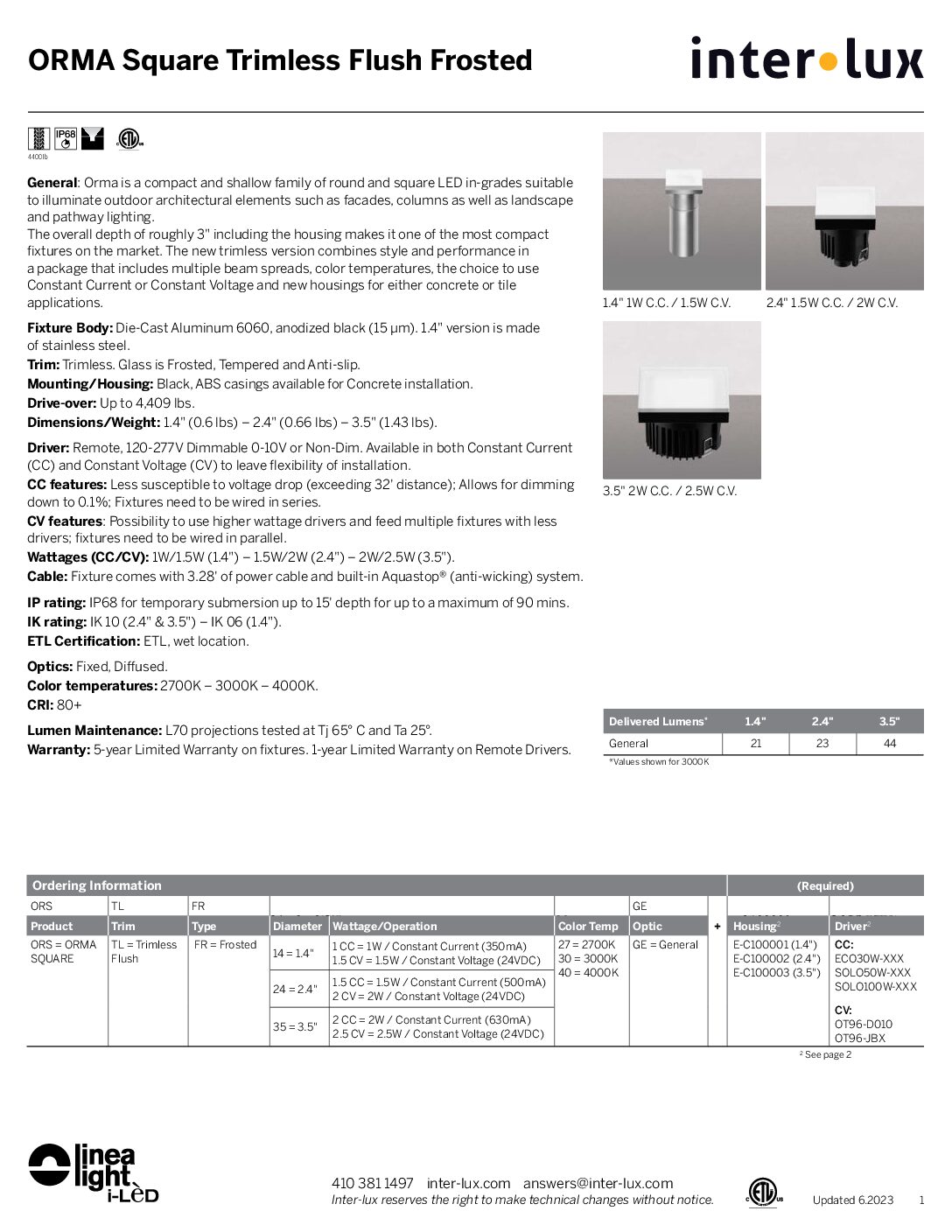

- Spec Page
-

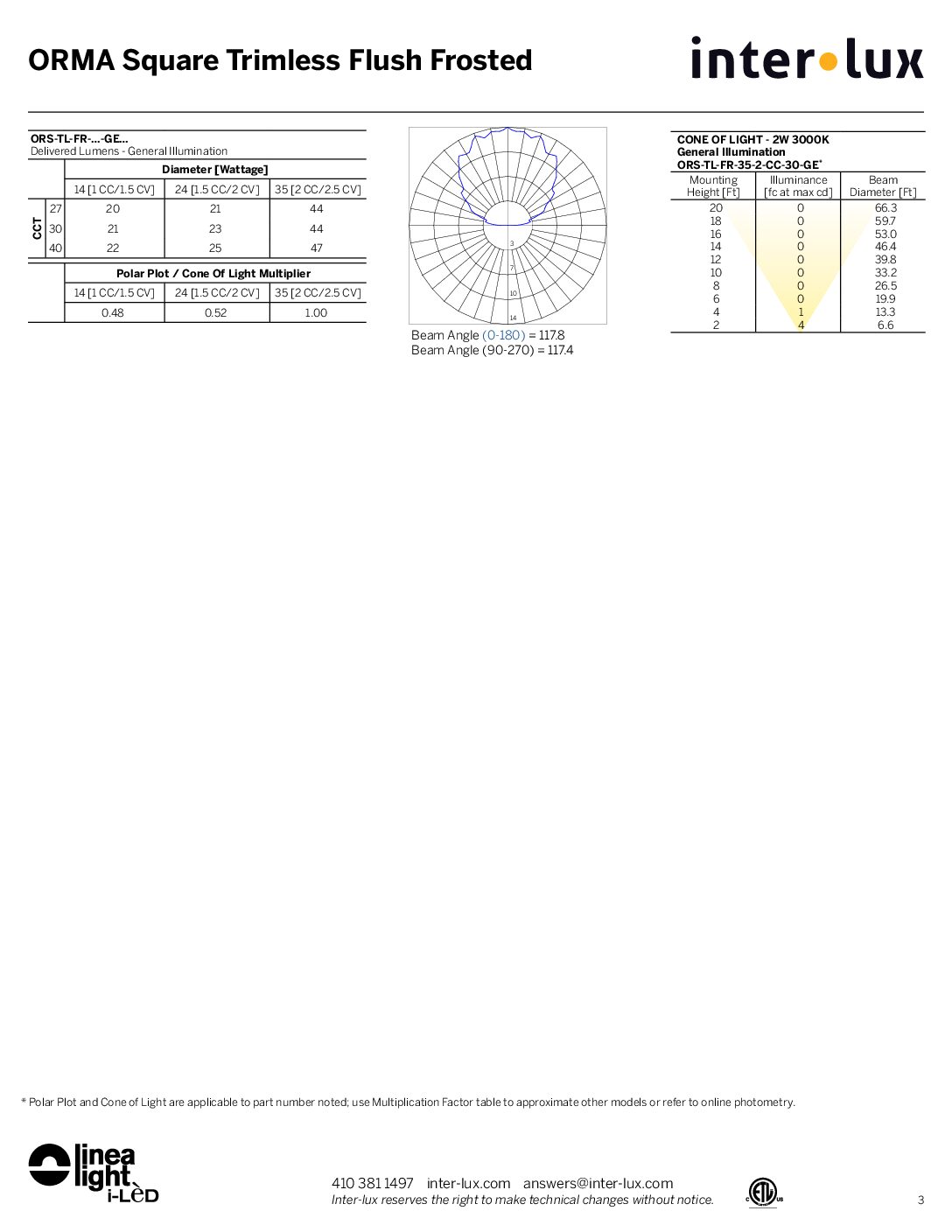

- Photometry
-
