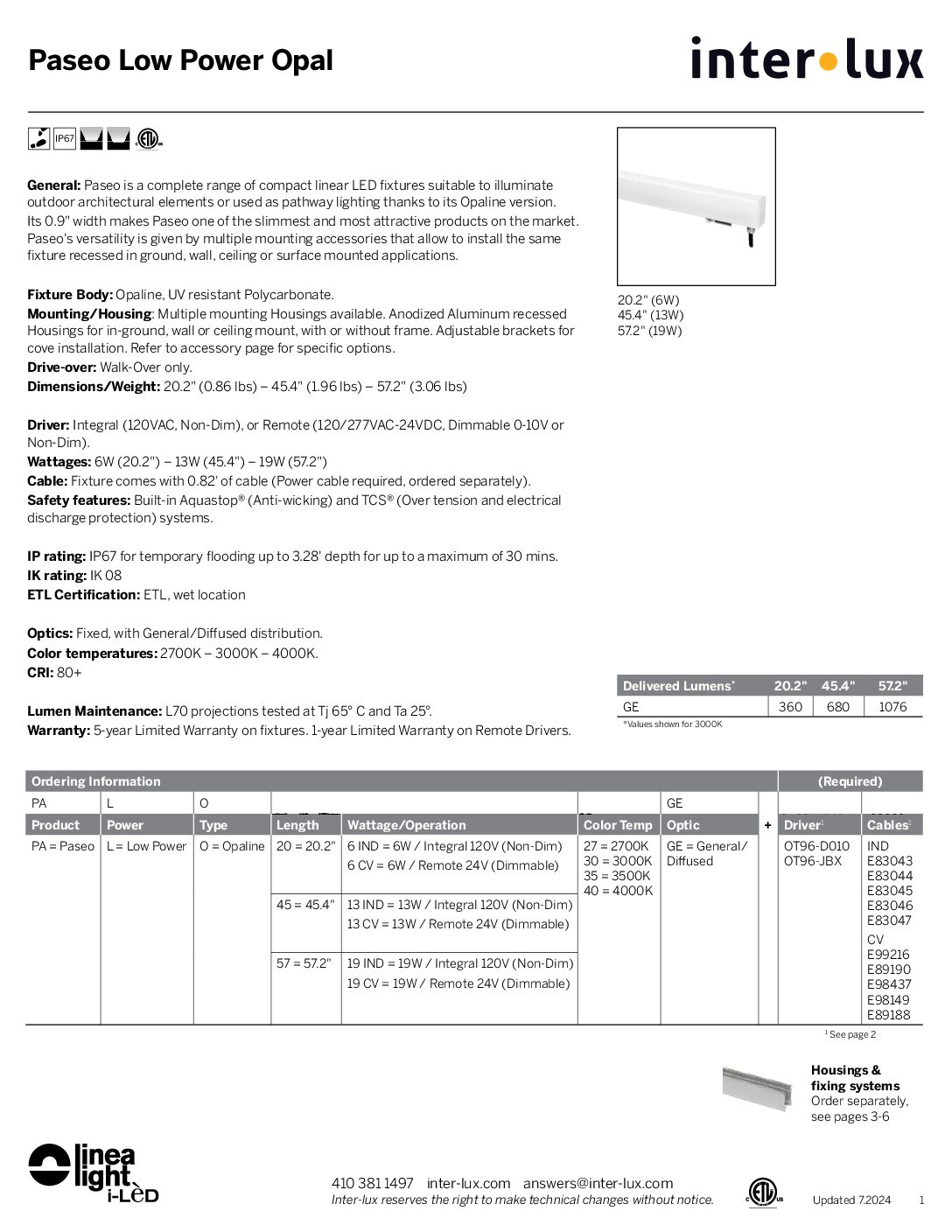

Paseo Low Power Opal

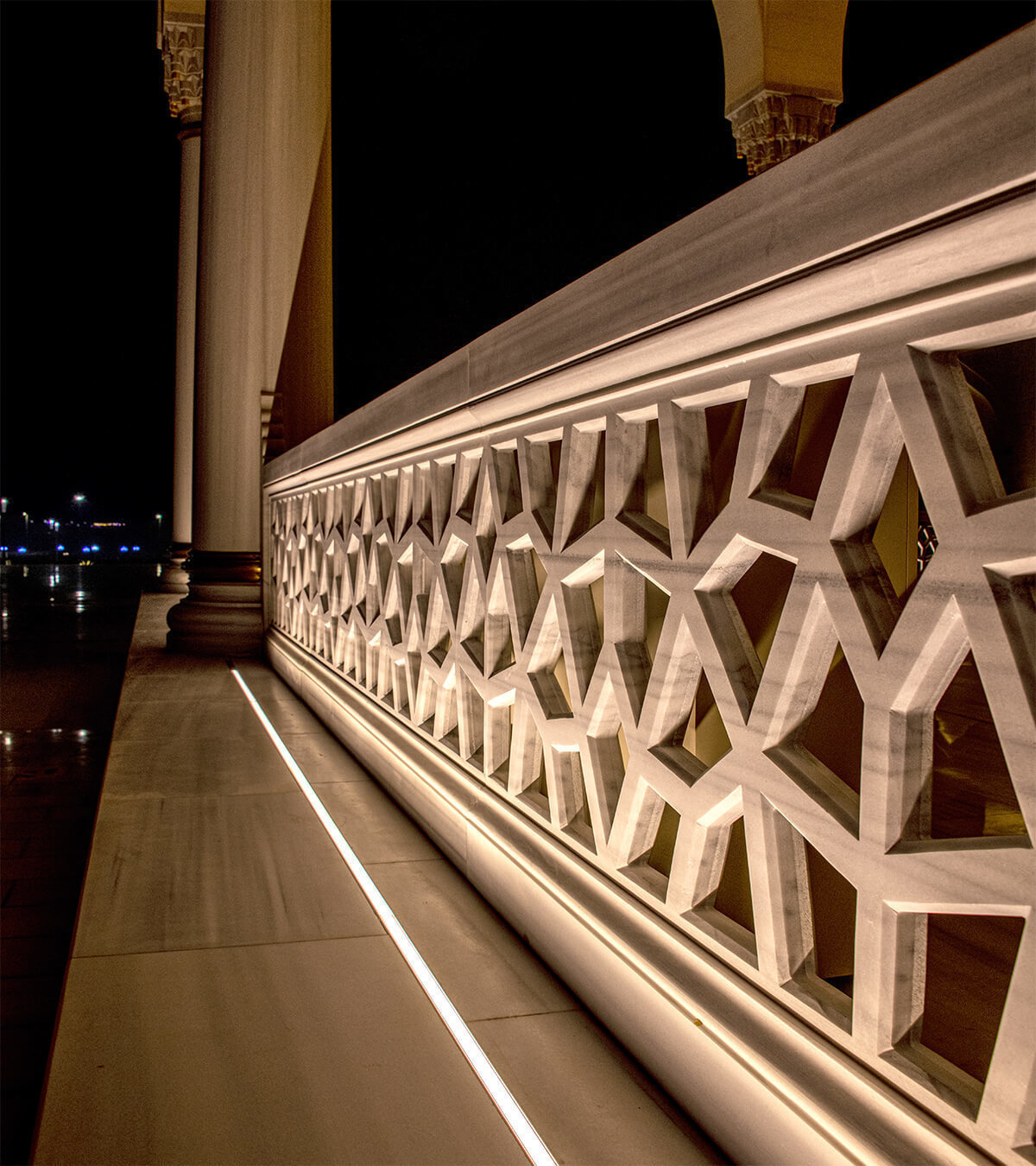

Paseo is a complete range of compact linear LED fixtures suitable to illuminate outdoor architectural elements or used as pathway lighting thanks to its Opaline version. Its 0.9″ width makes Paseo one of the slimmest and most attractive products on the market. Paseo’s versatility is given by multiple mounting accessories that allow to install the same fixture recessed in ground, wall, ceiling or surface mounted applications.
Fixture Body: Clear, UV resistant Polycarbonate.

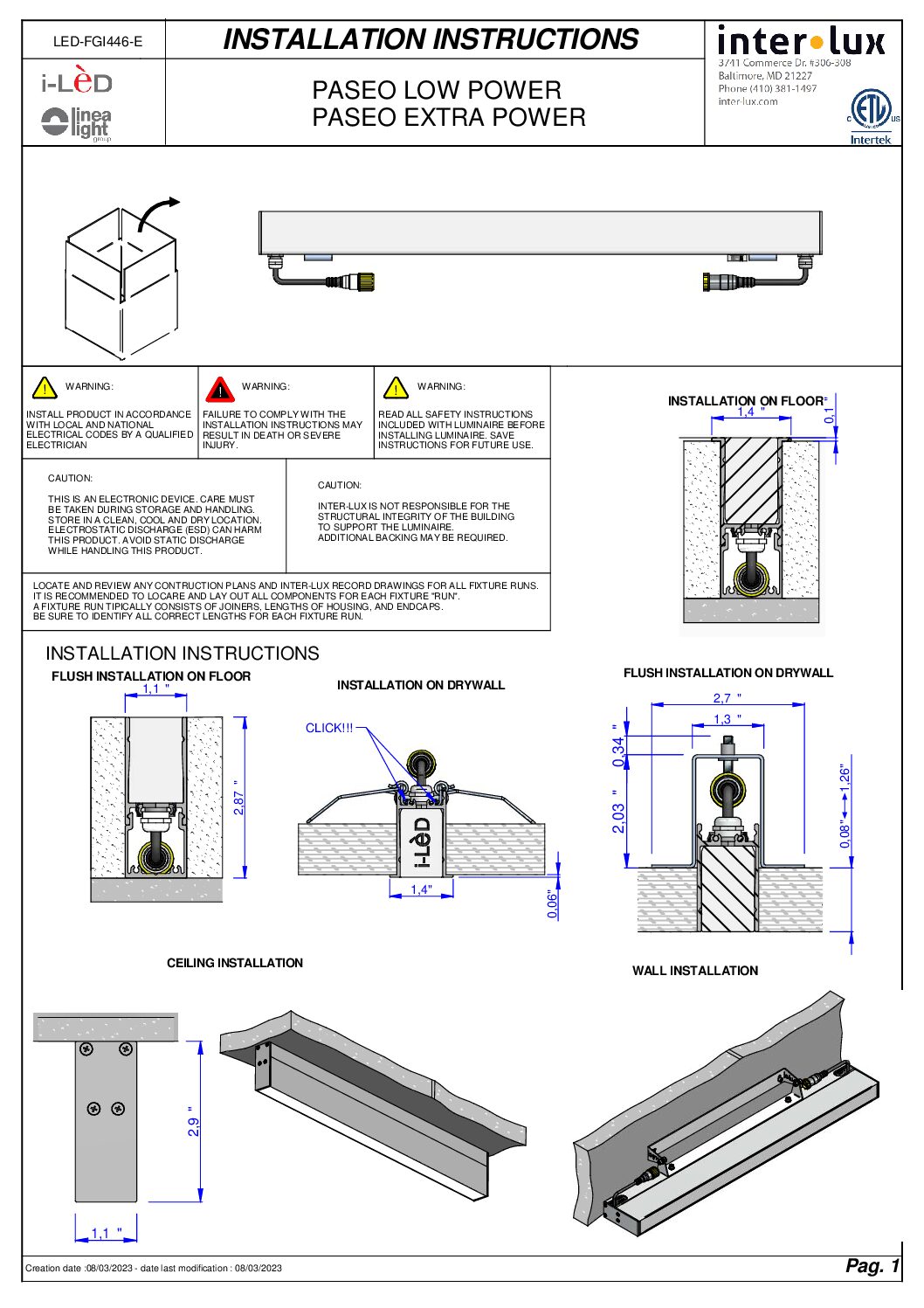

Mounting/Housing: Multiple mounting HOUSINGs available. Anodized Aluminum recessed HOUSINGs for in-ground, wall or ceiling mount, with or without frame. Adjustable brackets for cove installation. Refer to accessory page for specific options.
Drive-over: Walk-Over only.
Driver: Integral (120VAC, Non-Dim), or Remote (120/277VAC-24VDC, Dimmable 0-10V or Non-Dim).
Wattages/Sizes: 6W (20.2″) – 13W (45.4″) – 19W (57.2″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.
IP rating: IP67
ETL Certification: ETL, wet location

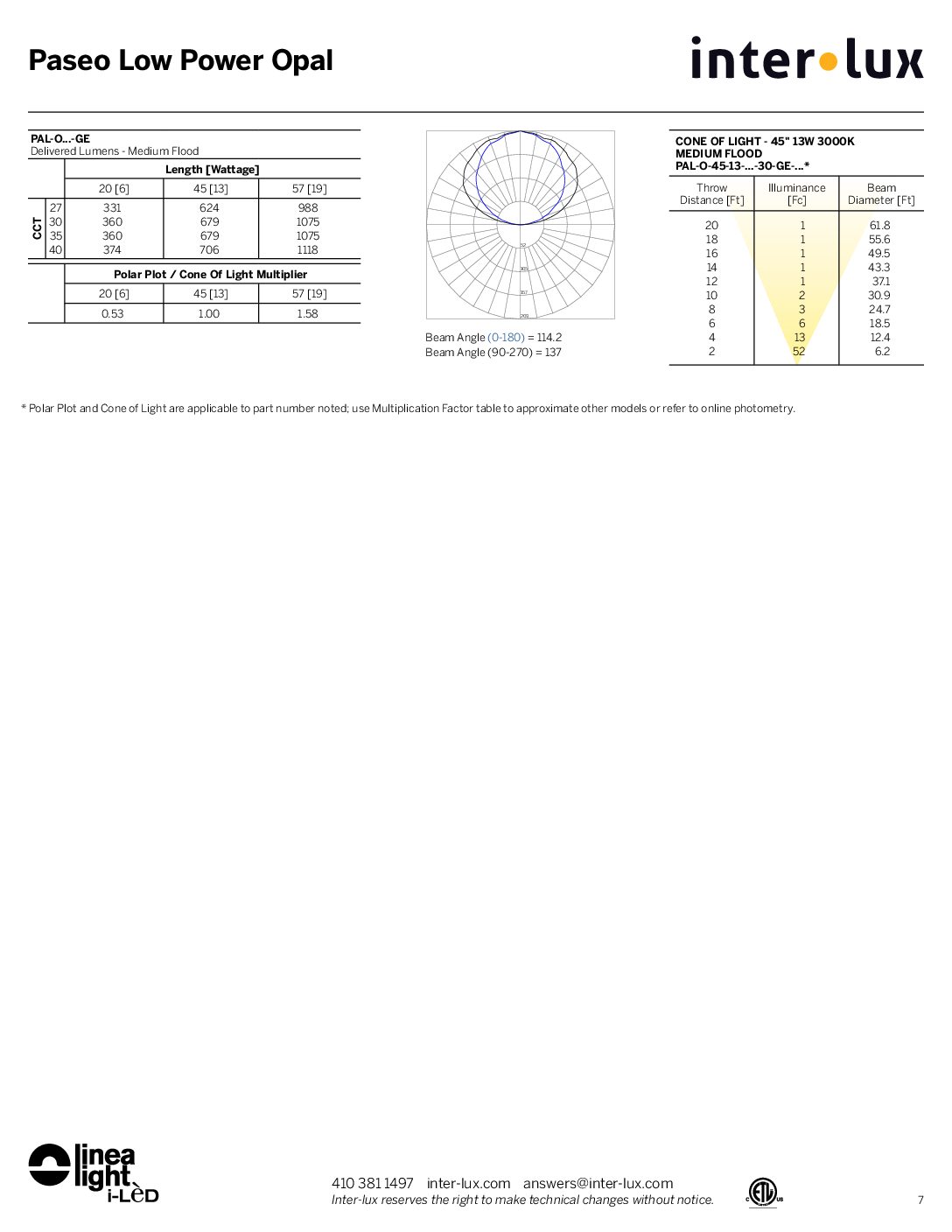

Optics: Fixed. Available in Narrow Flood or Asymmetric Wall Washer. 20.2″ and 45.4″ available with Anti-Glare system.
Color temperatures: 2700K – 3000K – 4000K.
Quickship Housings Available: add QS in front of part number
