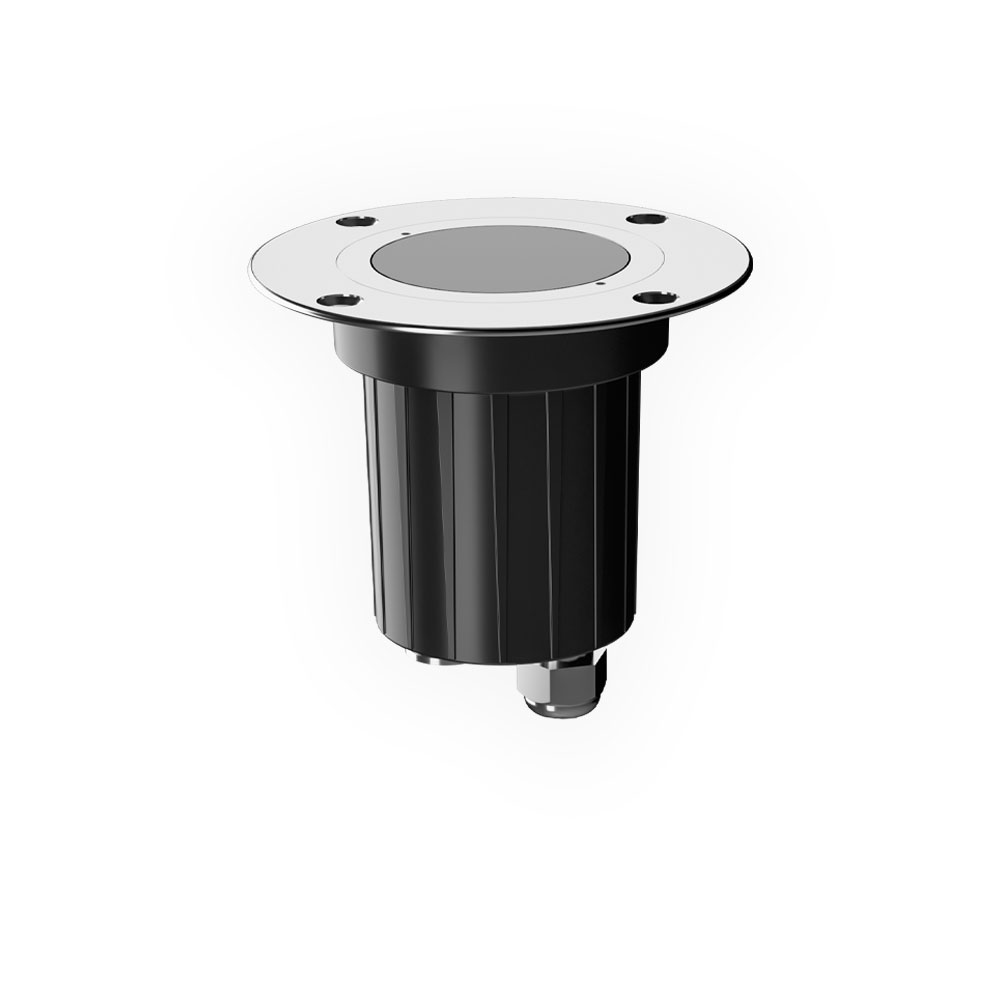

SUELO Fixed Optics Vandal Resistant
Spec PageSuelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.
Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations.
Drive-over: Up to 5,511 lbs.
CC version: (4.4″ & 6.7″) Remote 120-277V Constant Current driver 0-10V dimmable down to 0.1%. Less susceptible to voltage drop (up to 200′ wiring distance); Fixtures need to be wired in series.
CV version: (4.4″) Remote 120-277V Constant Voltage 24VDC. Driver options in 0-10V (typical dim level 10%, dry location) or Non-dim (wet location). Possibility to use higher wattage drivers and feed multiple fixtures with fewer wiring runs; fixtures need to be wired in parallel.
IND version: (9.1″) Integral driver 120-277V non-dim.
Wattages: 8W CC / 9W CV (4.4″) – 13W CC (6.7″) – 33.6W IND (9.1″) – 2W CC / 2.5W CV (4.4″ HSP)
IP rating: IP67
ETL Certification: ETL, wet location
Optic: Fixed. Available in Hyper Spot – Narrow Spot – Spot – Flood – Wide Flood – Elliptical. Some variants can also mount Honeycomb and Dark Light, anti-glare accessories.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
• View + download Suelo brochure
Quickship Housings Available: add QS in front of part number

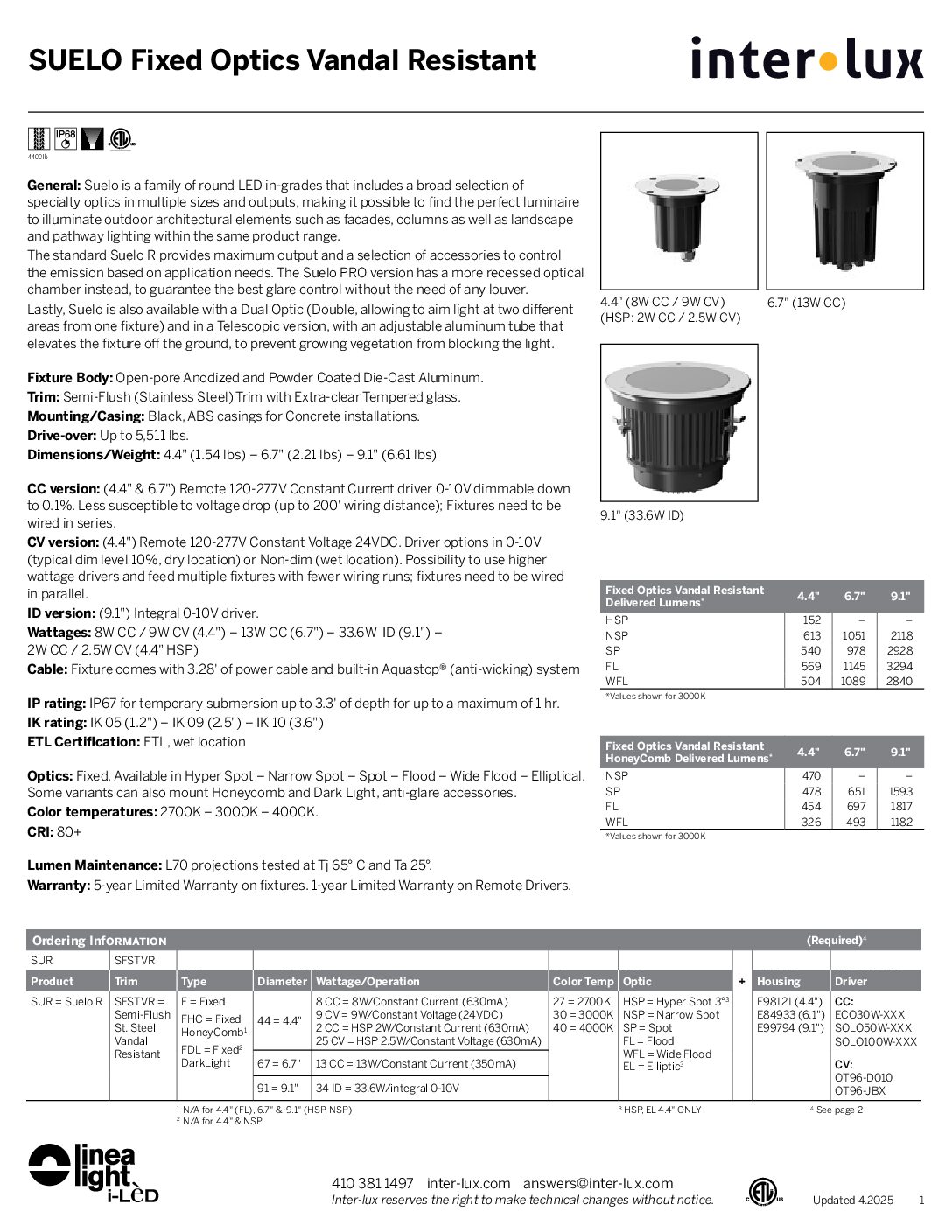

- Spec Page
-

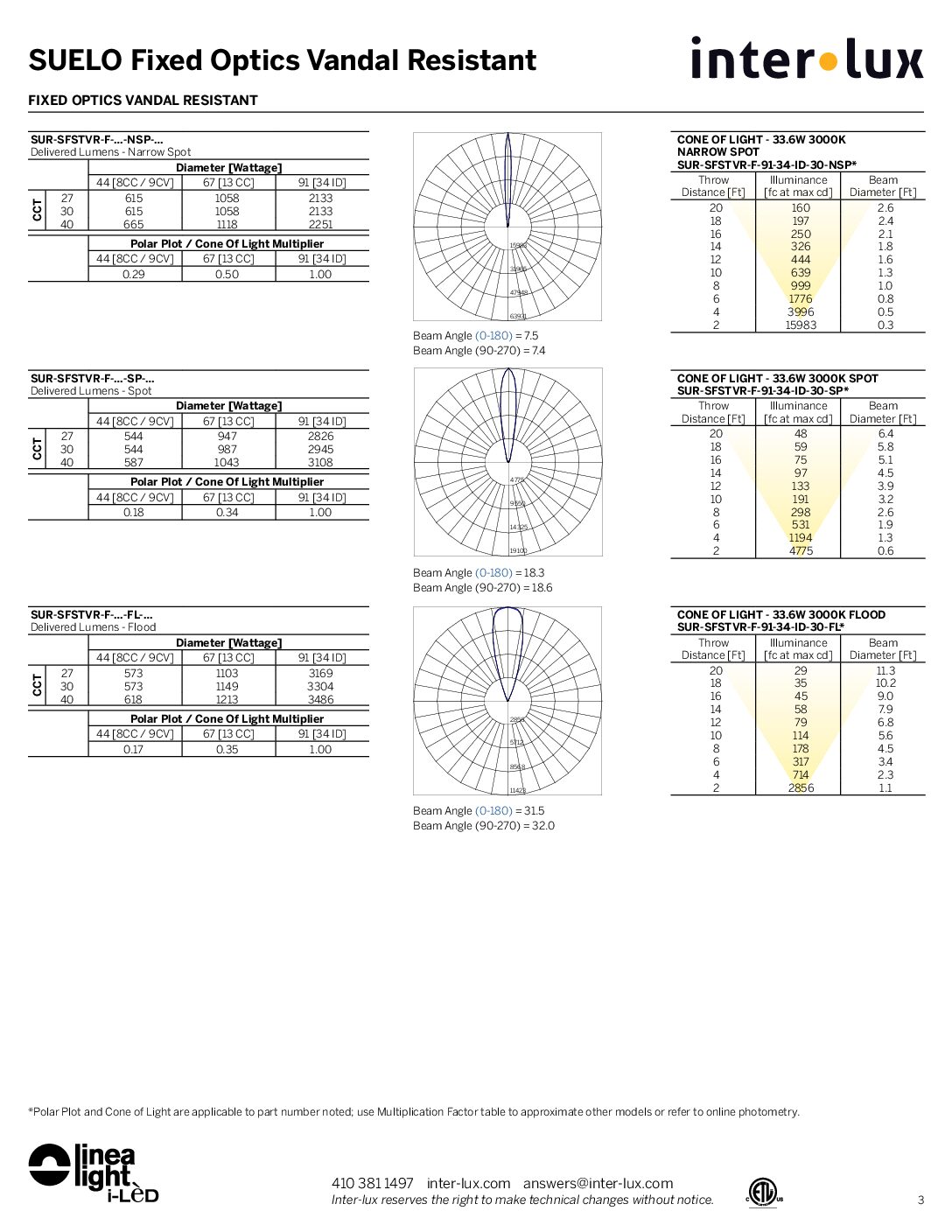

- Photometry
-
