SUELO Adjustable Optics Vandal Resistant
Suelo is a family of round LED in-grades that includes a broad selection of specialty optics in multiple sizes and outputs, making it possible to find the perfect luminaire to illuminate outdoor architectural elements such as facades, columns as well as landscape and pathway lighting within the same product range. The standard Suelo R provides maximum output and a selection of accessories to control the emission based on application needs.
Fixture Body: Open-pore Anodized and Powder Coated Die-Cast Aluminum.
Trim: Semi-Flush (Stainless Steel) Trim with Extra-clear Tempered glass.
Mounting/Casing: Black, ABS casings for Concrete installations. Vandal Resistant, secured with Hex or Torx screws (check installation instructions for details).
Drive-over: Up to 5,511 lbs.
Driver: Remote, 120-277V Dimmable 0-10V or Non-Dim. 4.4″ variant available in both Constant Current (CC) and Constant Voltage (CV) to leave flexibility of installation.
Wattages/Sizes: 8W / 9W (4.4″) – 13W (6.7″) – 33.6W (9.1″) – 48.2W (12.1″ & 12.4″)
IP rating: IP67
ETL Certification: ETL, wet location
Optics: Adjustable. Available in Ultra Spot – Spot – Narrow Flood – Flood – Medium Wide Flood – Wide Flood.
Color temperatures: 2700K – 3000K – 4000K.
CRI: 80+
• View + download Suelo brochure
Quickship Housings Available: add QS in front of part number

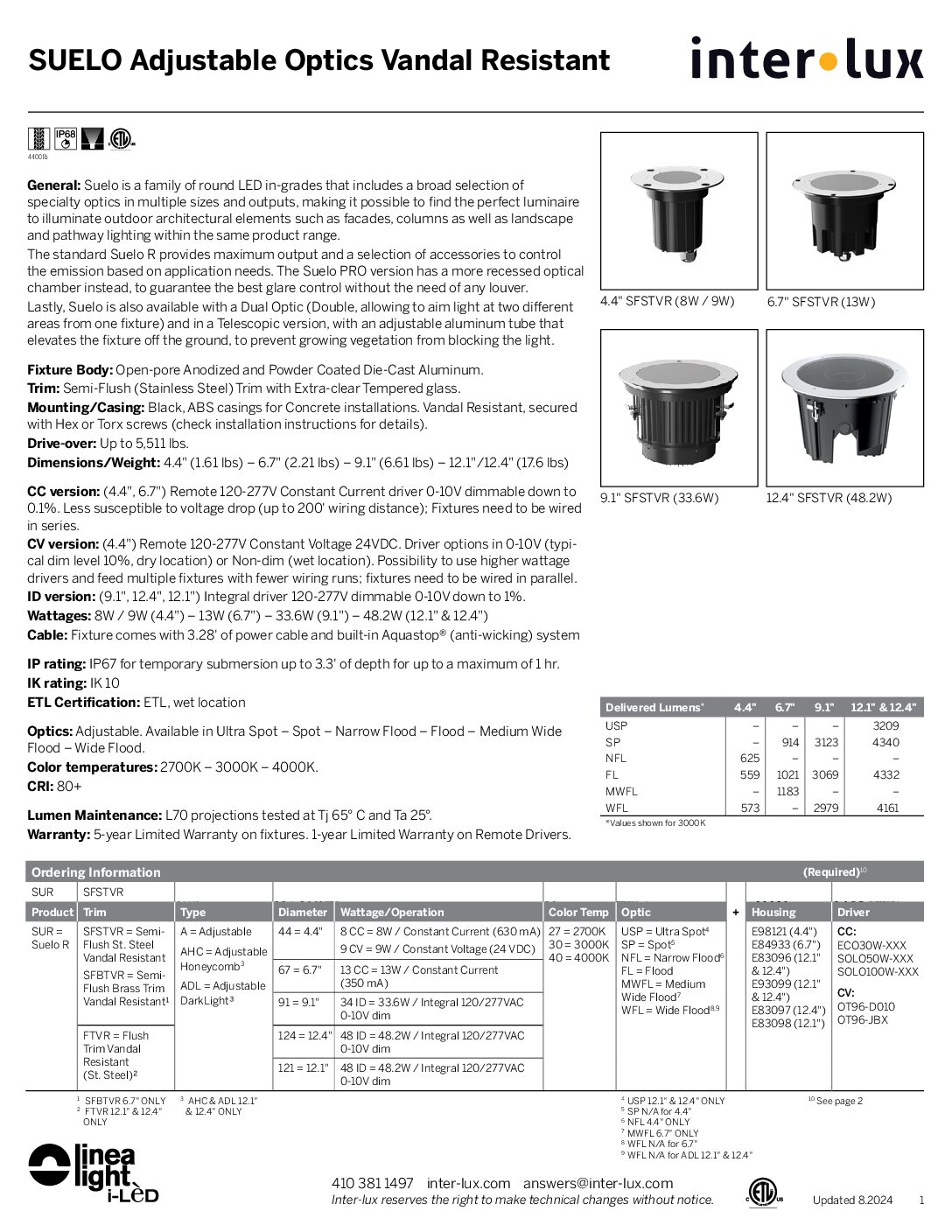

- Spec Page
-

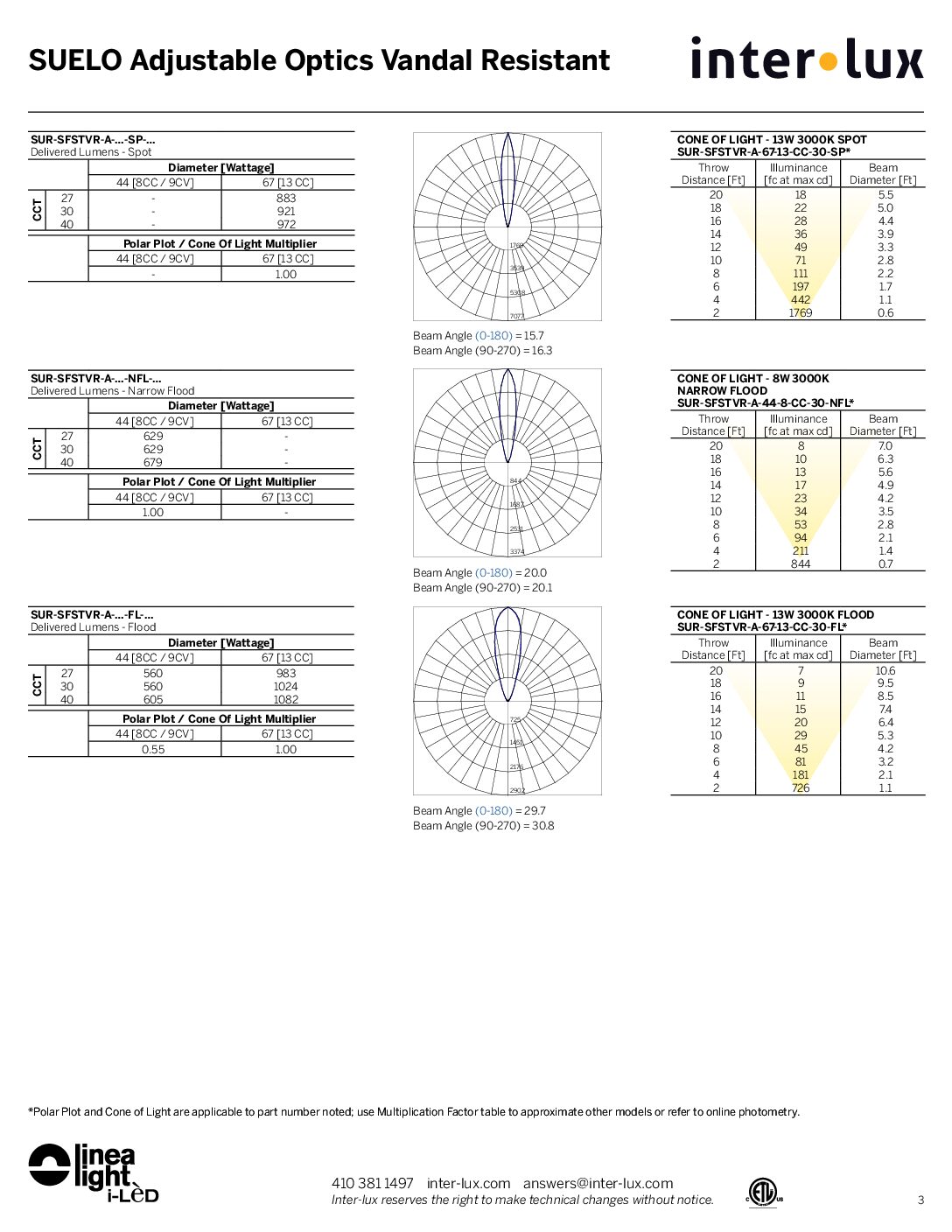

- Photometry
-
