Xenia Recessed Optics Integral Driver
Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).
Trim: Frameless, ideal for continuous runs.
Mounting: Adjustable steel brackets, available in different lengths.
Driver: Integral, 120/277VAC Non-Dim.
Wattages/Sizes: 8.2W (14.4”) – 14.2W (24.8”) – 21.4W (36.6”) – 27.8W (48.4”) – 37W (60.2”)
Safety features: Built-in TCS® (Moisture protection), Over tension and Electrical discharge protection systems.
IP rating: IP66
ETL Certification: ETL, wet location
Optics: Fixed. Available in Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer. Anti-glare visors available as accessory.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
Quickship Housings Available: add QS in front of part number

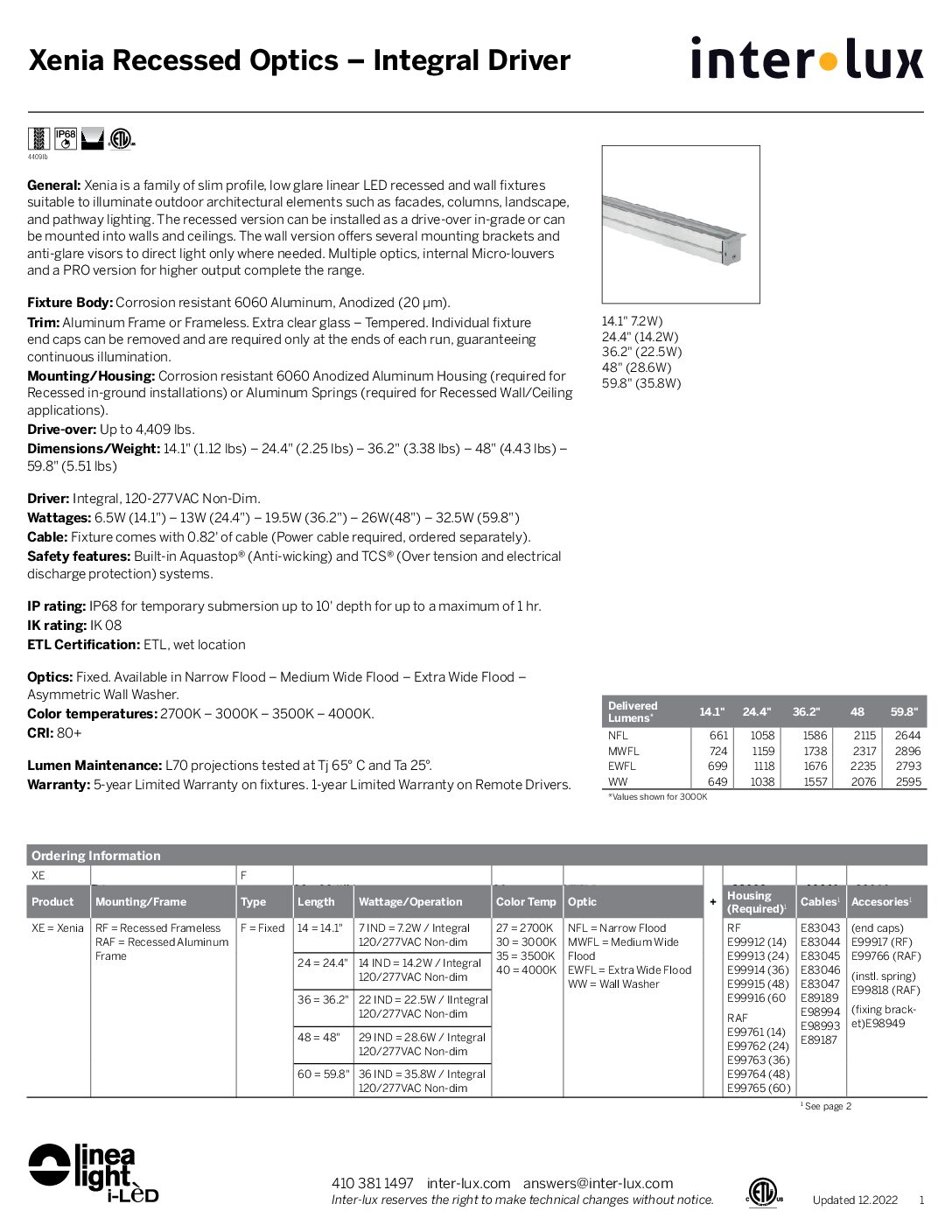

- Spec Page
-

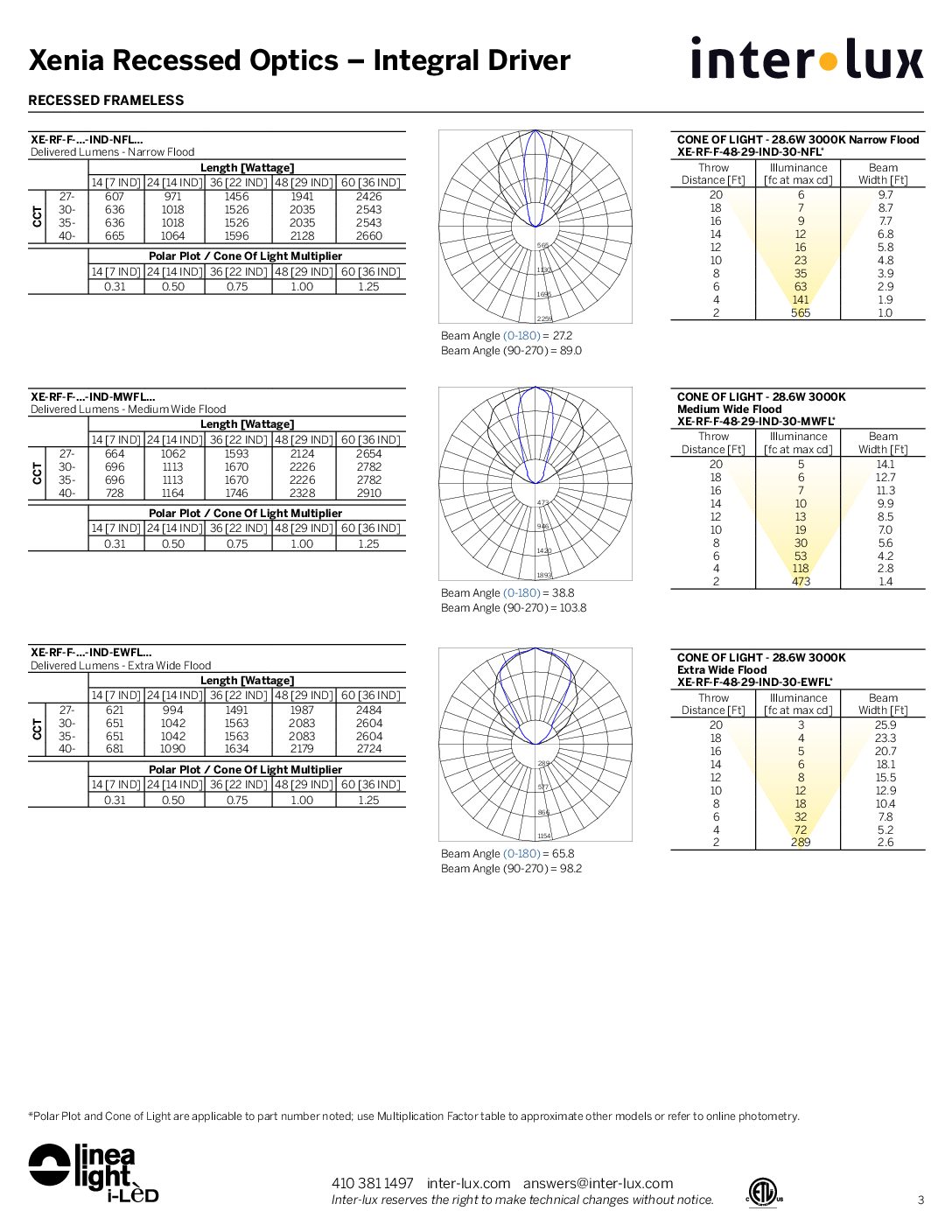

- Photometry
-
