Xenia Recessed Optics Remote Driver
Xenia is a family of slim profile, low glare linear LED recessed and wall fixtures suitable to illuminate outdoor architectural elements such as facades, columns, landscape, and pathway lighting. The recessed version can be installed as a drive-over in-grade or can be mounted into walls and ceilings.
Fixture Body: Corrosion resistant 6060 Aluminum, Anodized (20 μm).

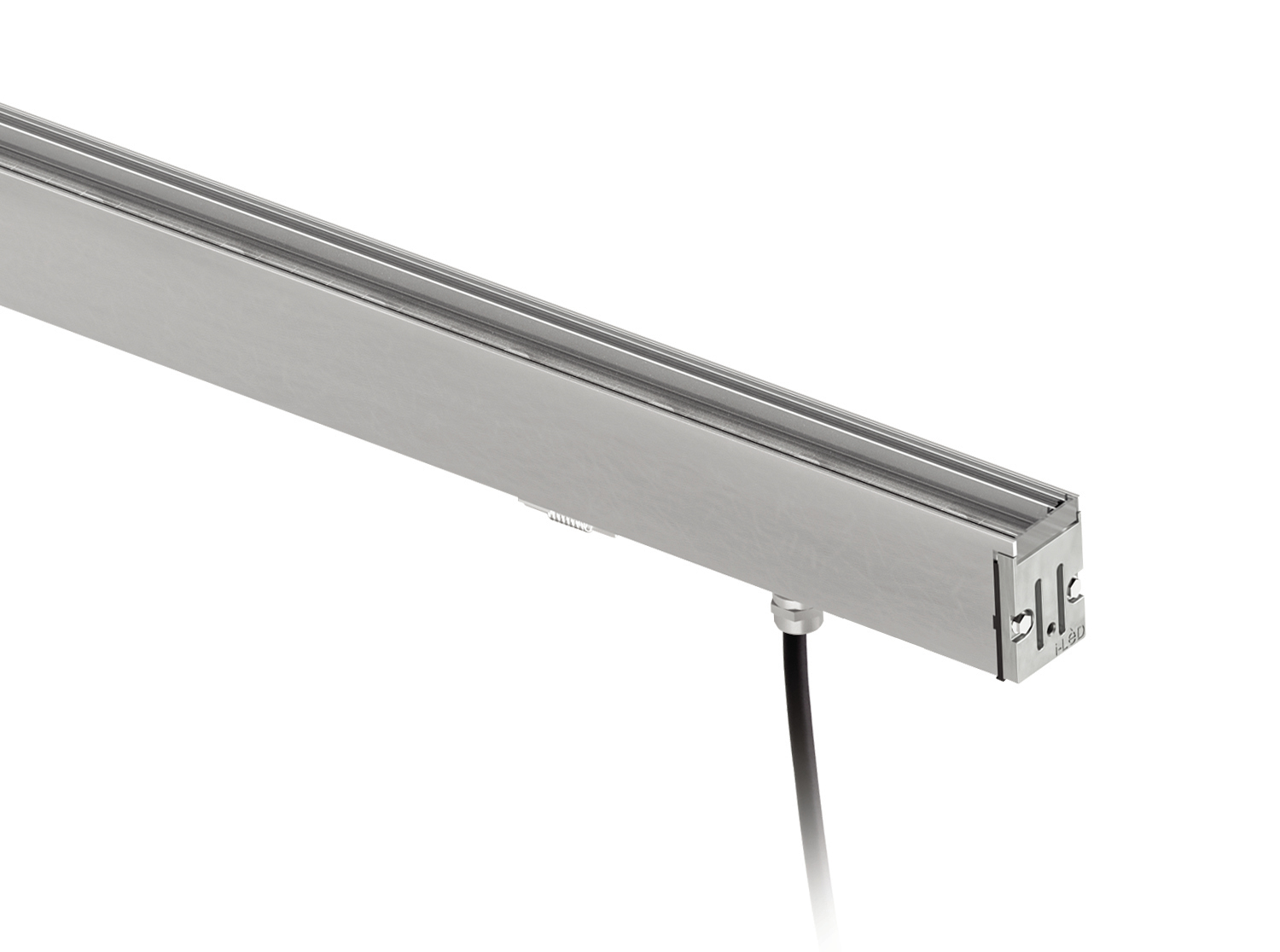

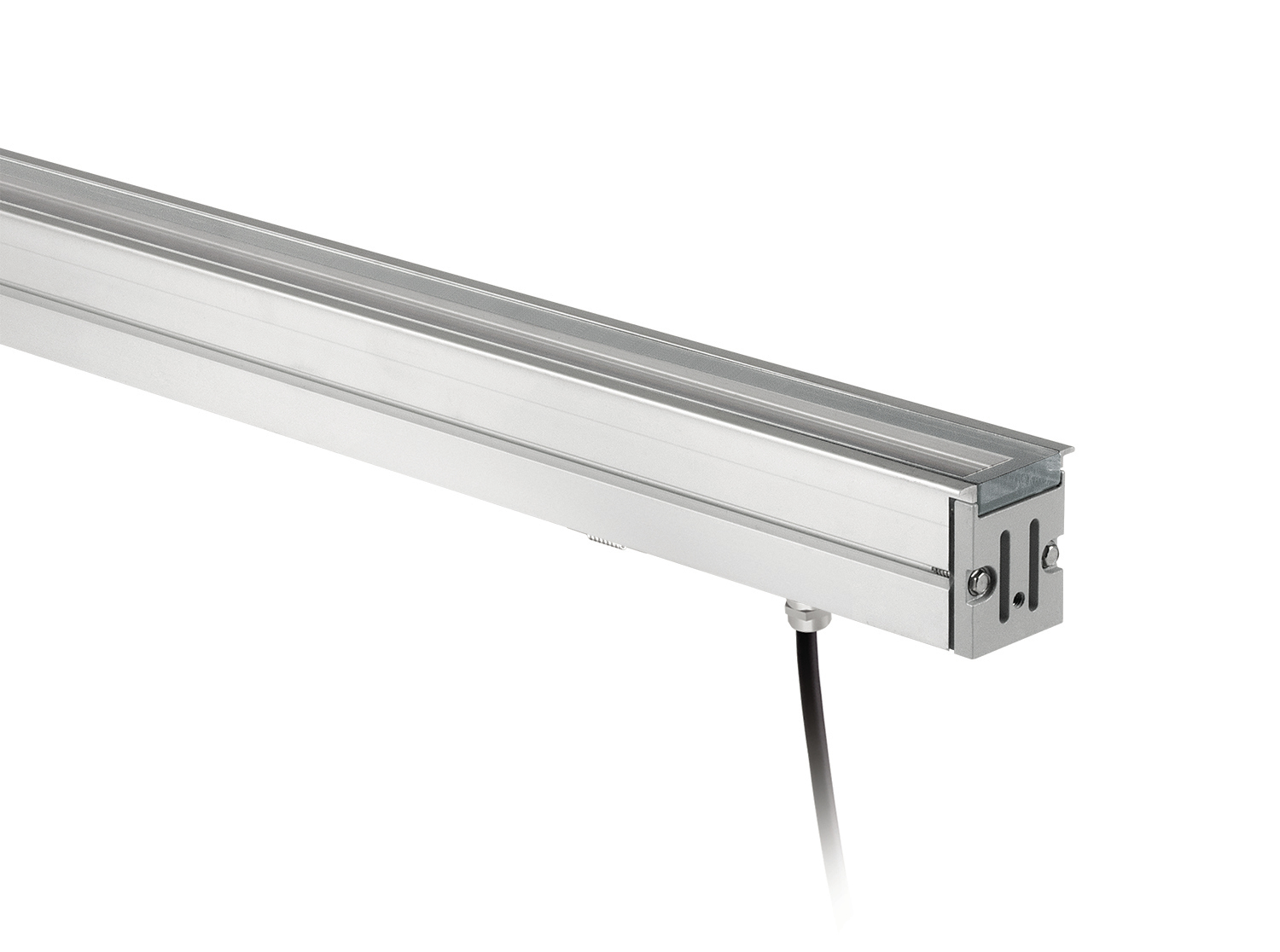

Trim: Aluminum Frame or Frameless. Extra clear glass – Tempered. Aluminum Frame version requires end caps only at the ends of each run, guaranteeing continuous illumination.
Mounting/Housing: Corrosion resistant 6060 Anodized Aluminum casing (required for Recessed in-ground installations) or Aluminum Springs (required for Recessed Wall/Ceiling applications).
Drive-over: Up to 4,409 lbs.
Driver: Remote CV, 120-277V Dimmable 0-10V or Non-Dim.
Wattages/Sizes: 6.5W (14.4″) – 13W (24.4″) – 19.5W (36.2″) – 26W(48″) – 32.5W (59.8″)
Safety features: Built-in Aquastop® (Anti-wicking) and TCS® (Over tension and electrical discharge protection) systems.
IP rating: IP68
ETL Certification: ETL, wet location
Optics: Fixed. Available in Narrow Flood – Medium Wide Flood – Extra Wide Flood – Asymmetric Wall Washer. Some variants are available with Integrated Micro Louver.
Color temperatures: 2700K – 3000K – 3500K – 4000K.
Quickship Housings Available: add QS in front of part number

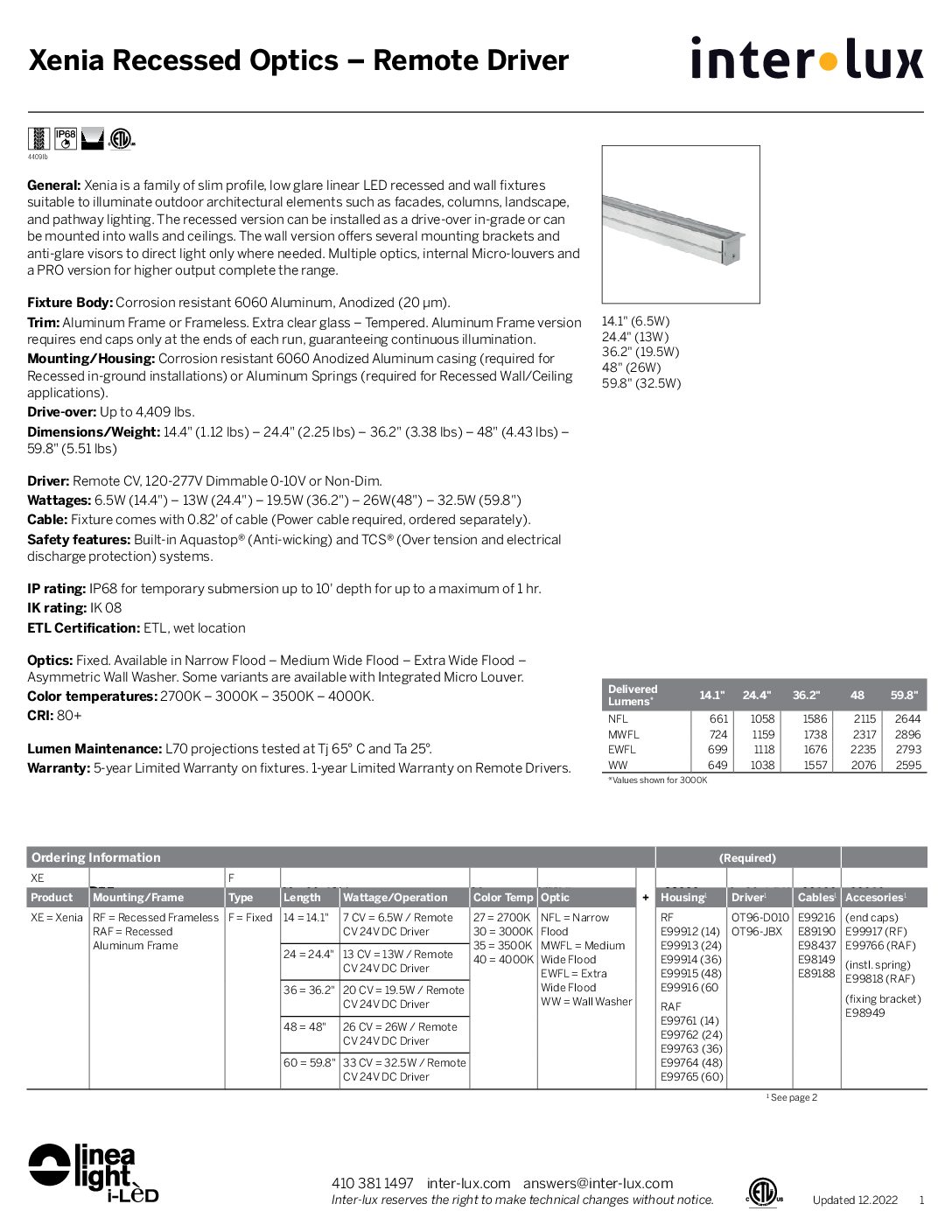

- Spec Page
-

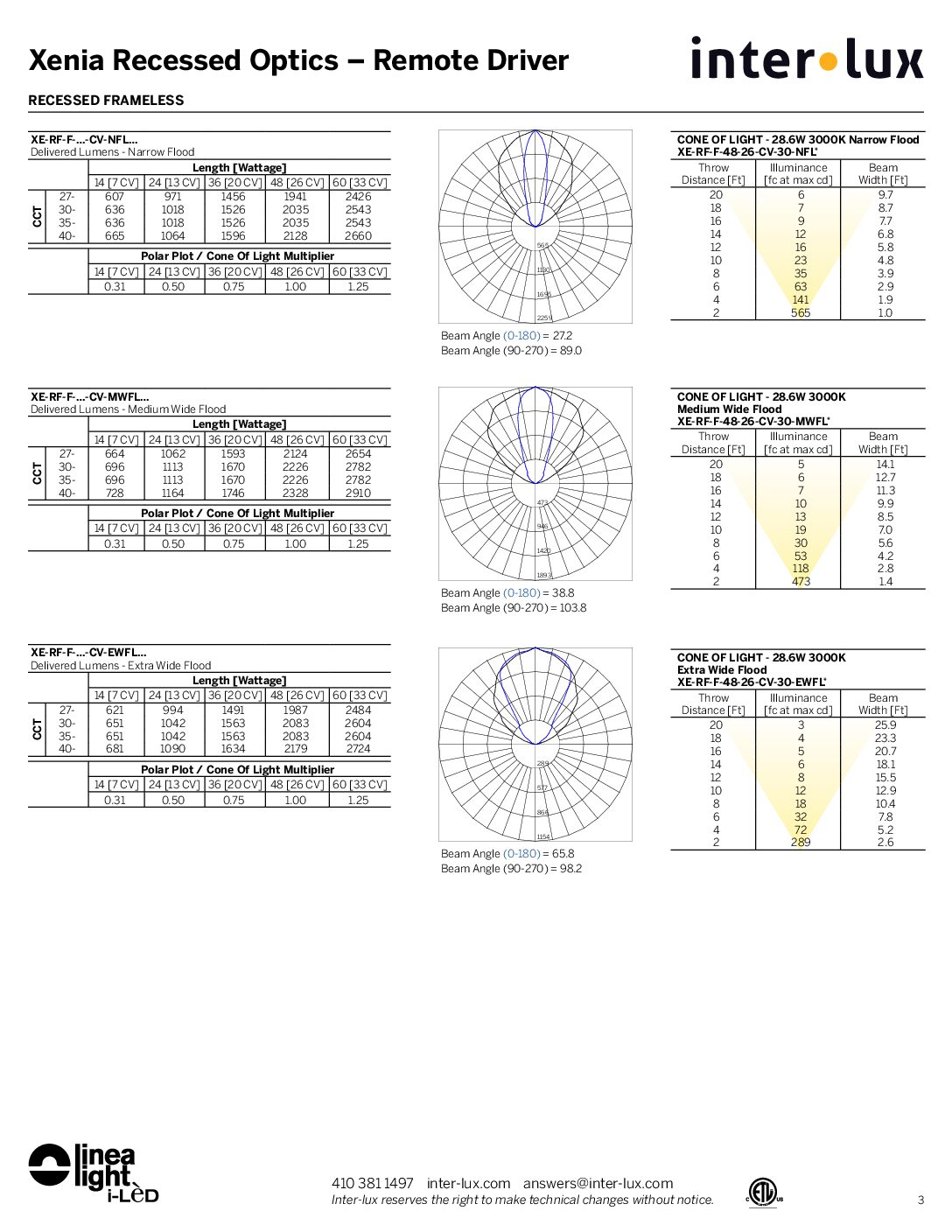

- Photometry
-
