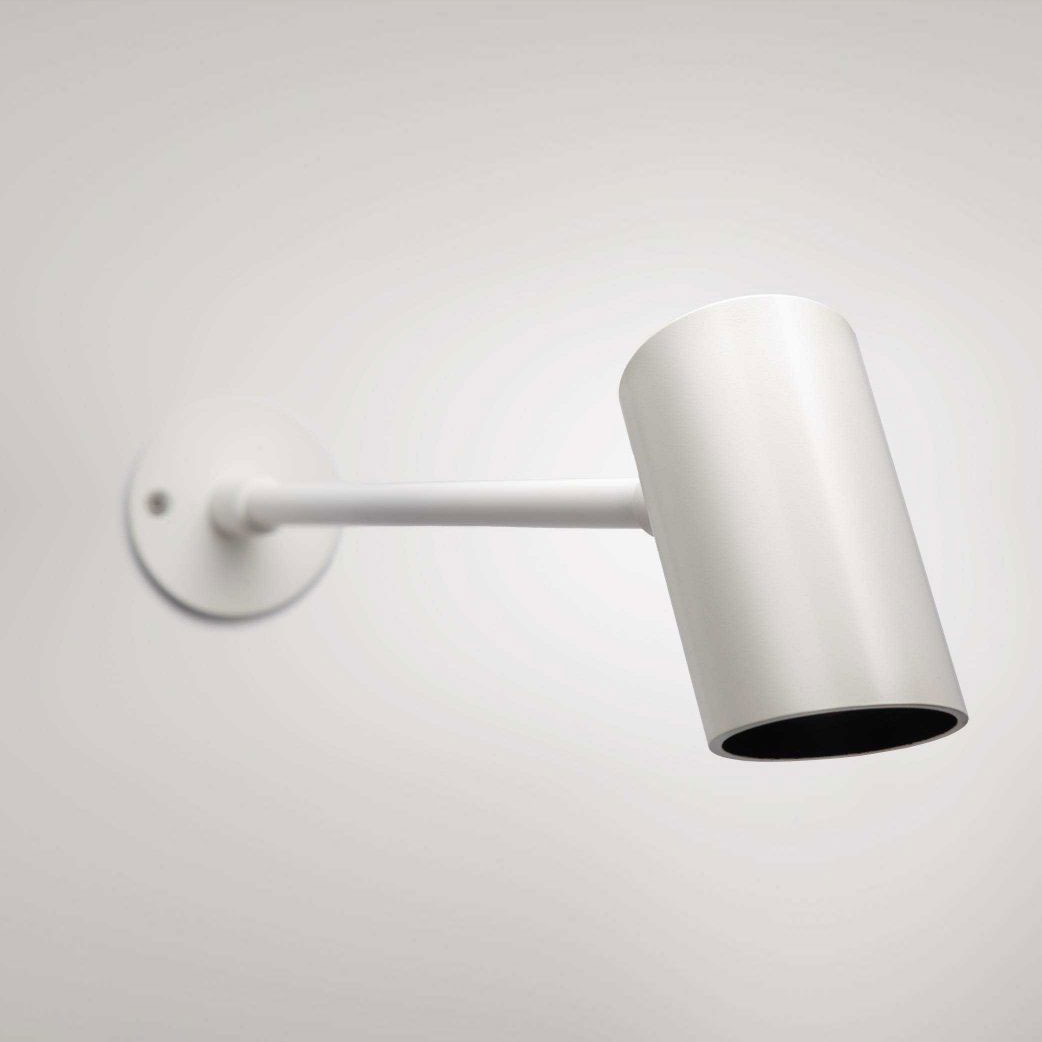

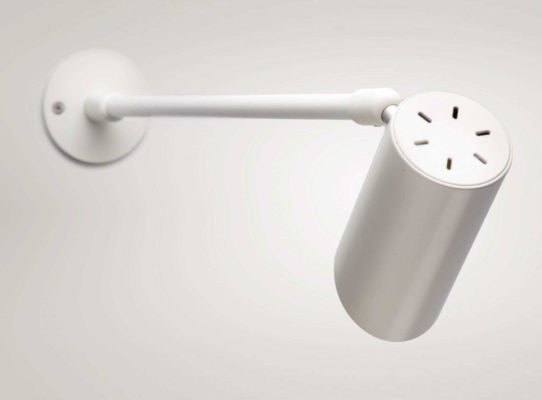

ZTA.50.G-Stick
Interior rated ‘Graphic Stick’. Designed for the circular economy. Suited to a multitude of applications from museum and gallery, retail, heritage, private residential and commercial.
- Surface wall mounted.
- Precision machined from 70 – 90% recycled aluminum.
- 95+ CRI with multiple CCTs and optics available.
Mounting
- SW = Surface Wall Mounted
Arm Length
- 6 = 6″ (152.4mm)
- 12 = 12″ (304.8mm)
- 19 = 19″ (482.6mm)
- XX = Specify custom length to the nearest 0.25″ (6.4mm), 19.7″ (500mm) max
Power
- 12 = 12W (1590lm initial at 350mA, 36.3Vf)
CCT (95+ CRI)
- 927 = 2700K
- 930 = 3000K
- 935 = 3500K
- 940 = 4000K
Optic
- WW = Wall Wash (66° x 41º)
Finish (interior always matte black)

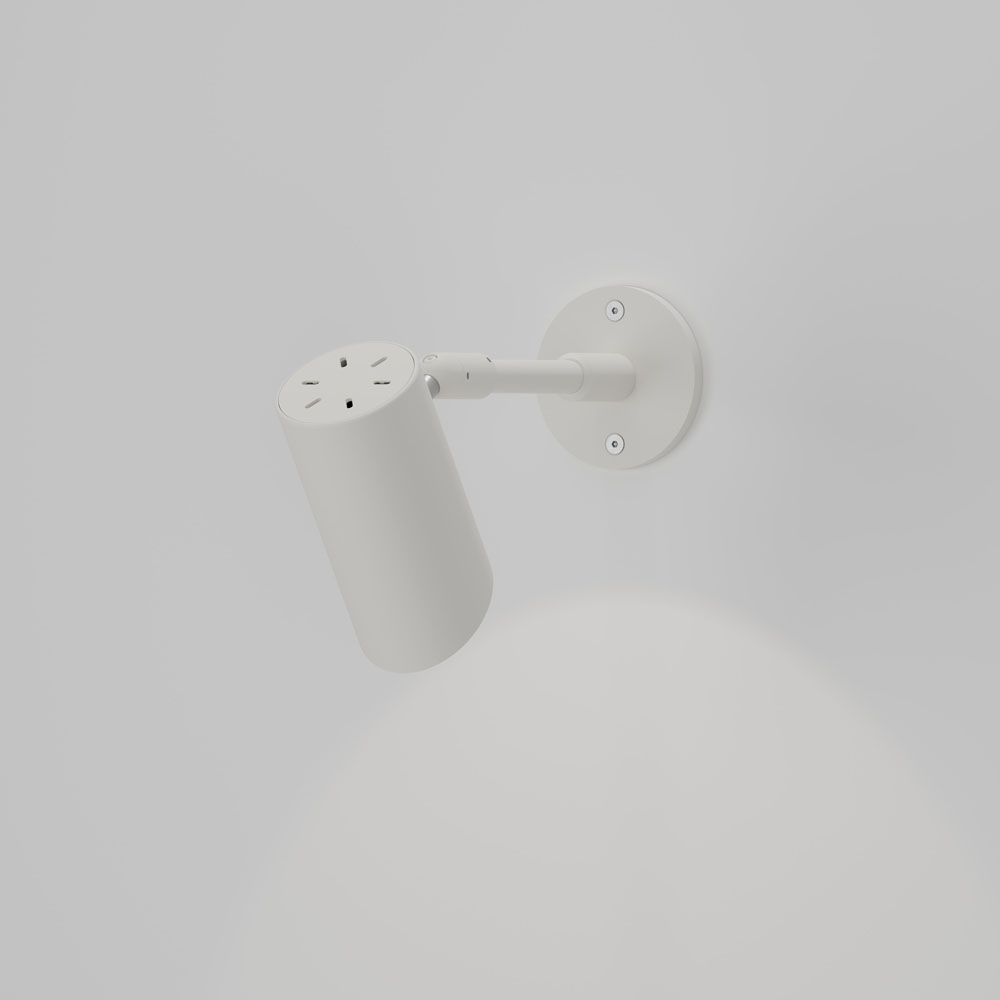

- W = Pure White, RAL9010

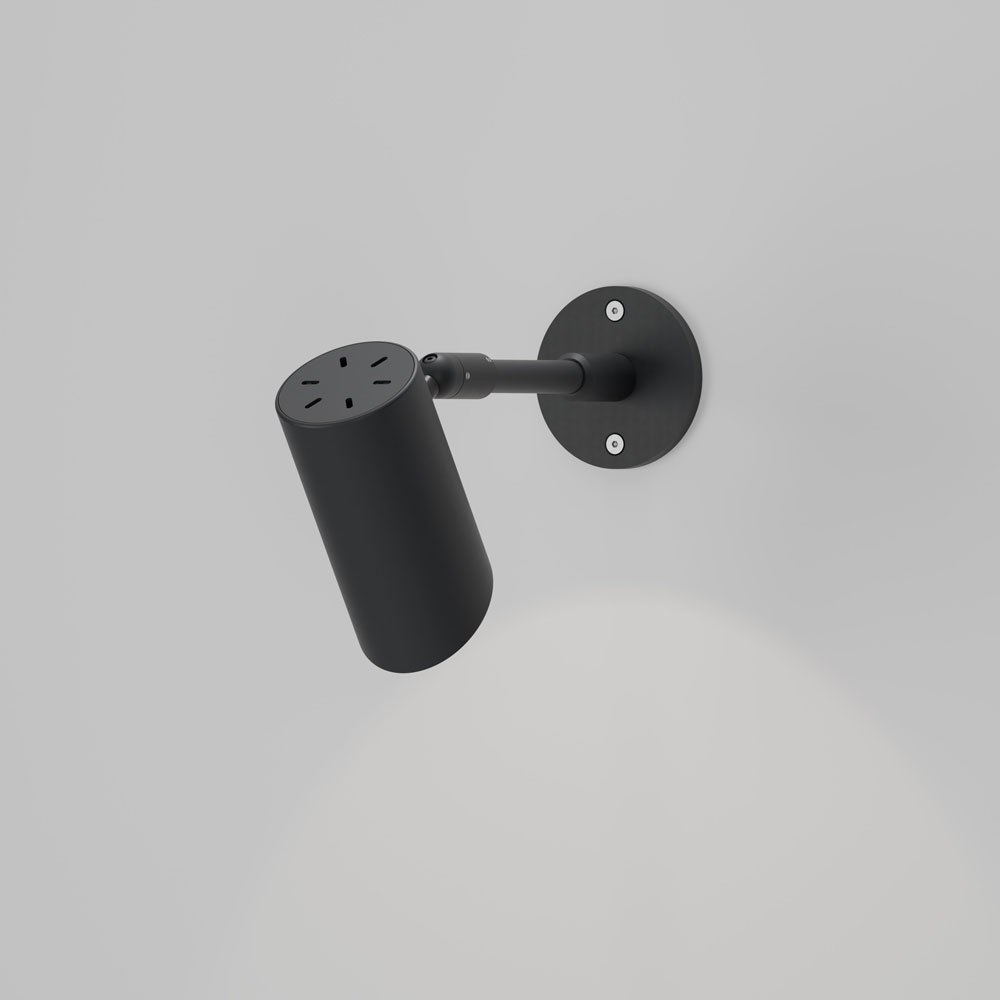

- BL = Matte Black, RAL9005
- CF = Custom finish, specify RAL

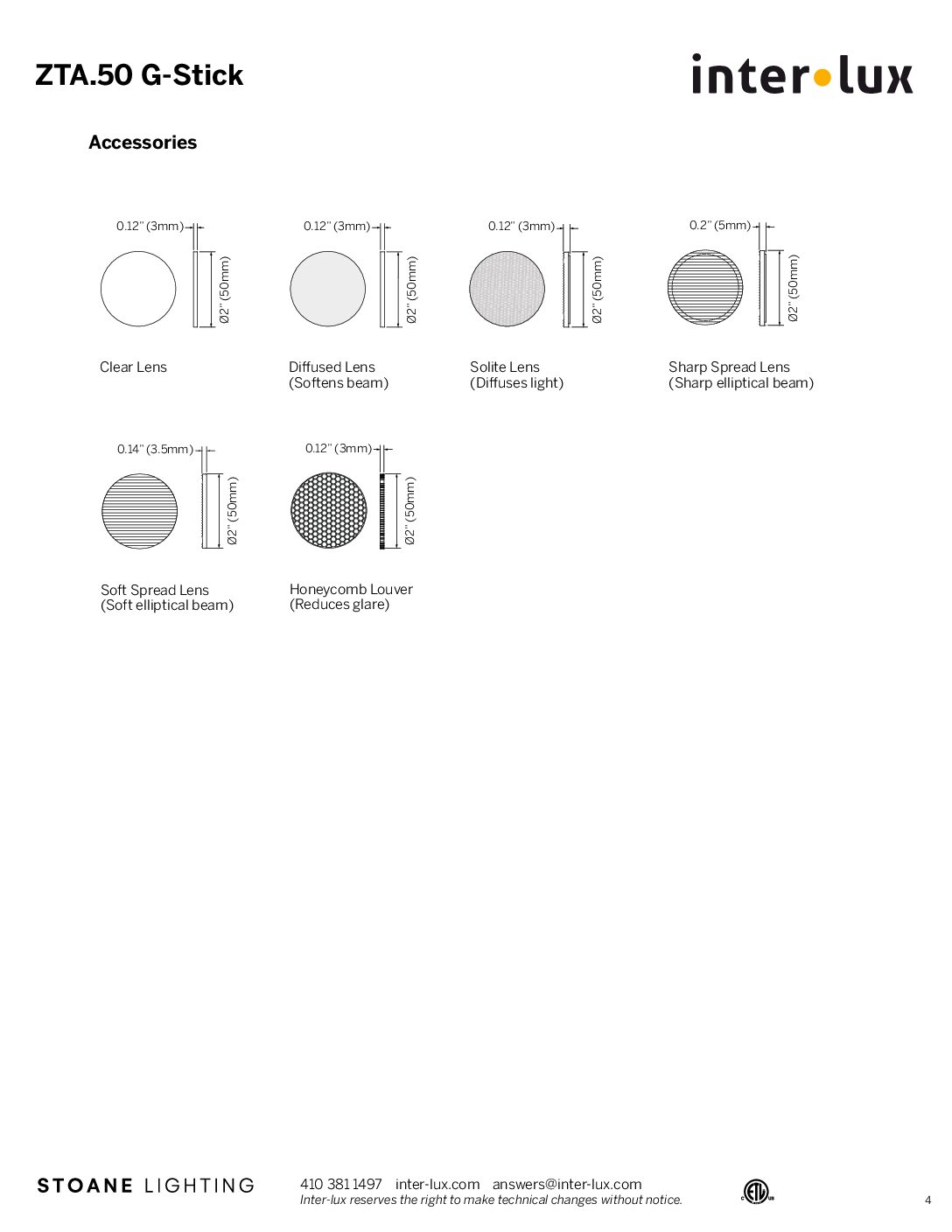

Accessories
- CL = Clear Lens
- DL = Diffused Lens
- HCL = Honeycomb Louver
- SOL = Solite Lens
- SHS = Sharp Spread Lens
- SOS = Soft Spread Lens
Remote Driver
- ECO30W-500 = 0-10V EldoLED ECOdrive 30W for 1 fixture
- SOLO50W-500 = 0-10V EldoLED SOLOdrive 50W for 1-2 fixtures (1 per output)
- SOLO100W-500 = 0-10V EldoLED SOLOdrive 100W for 1-4 fixtures (1 per output)
Selections download as one PDF

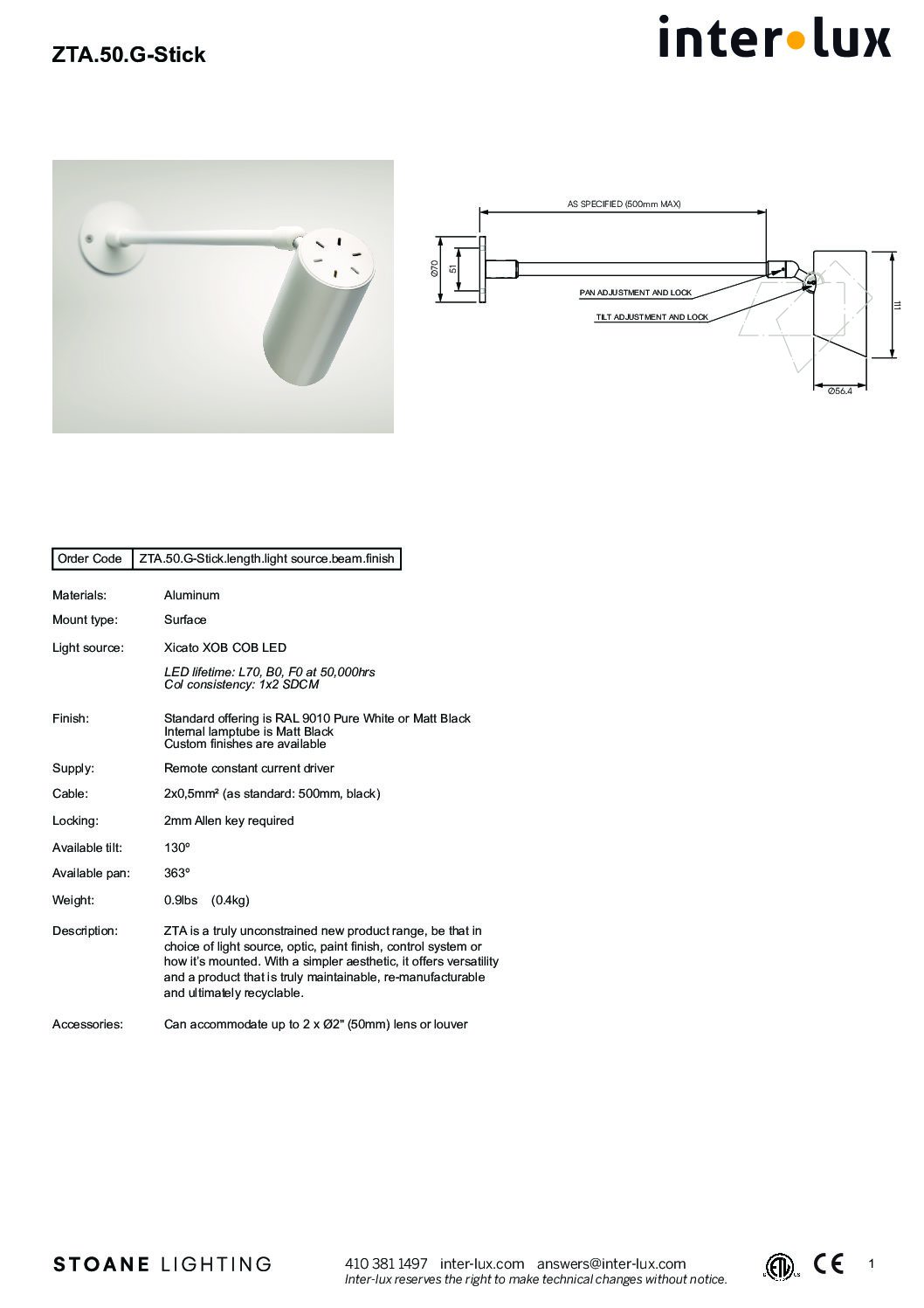

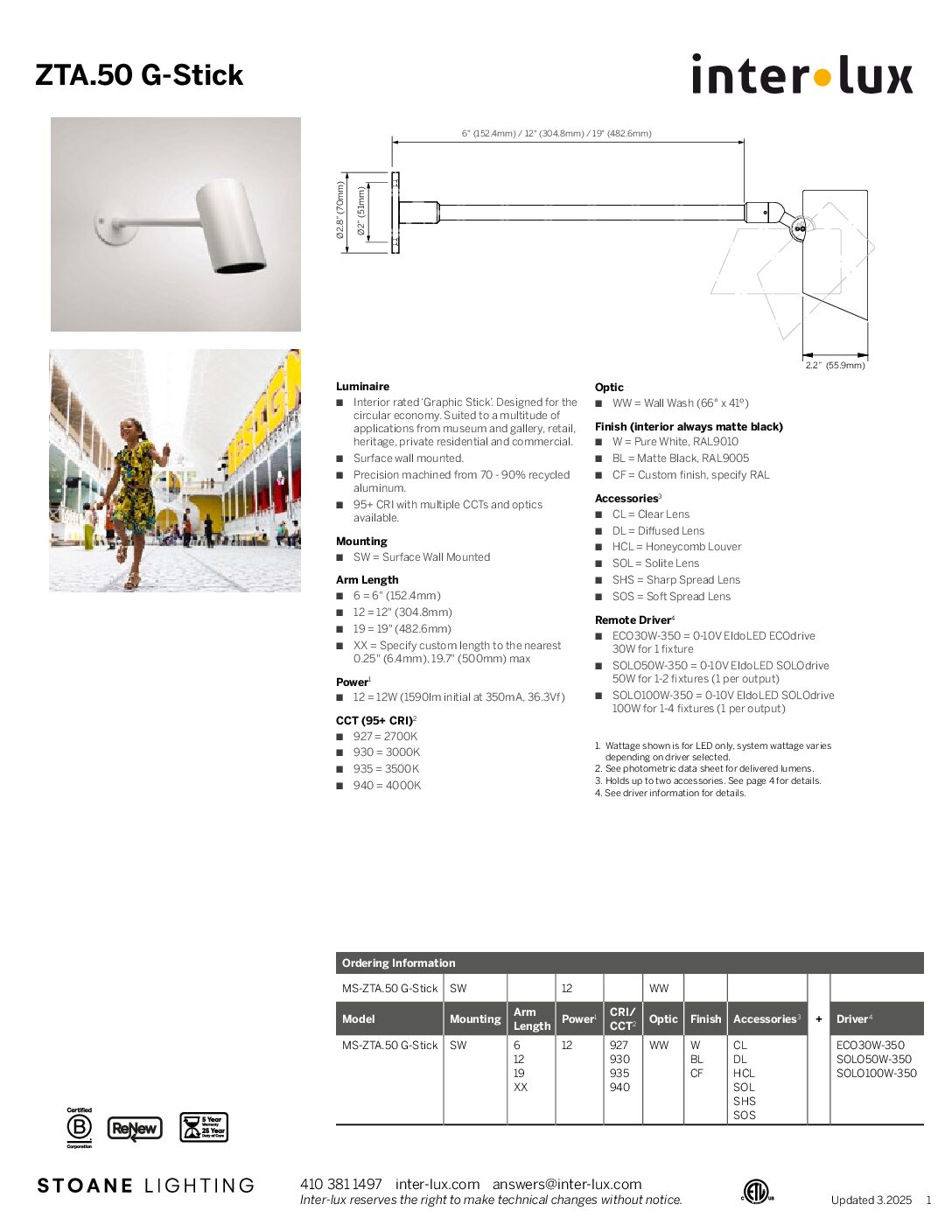

- Spec Page
-

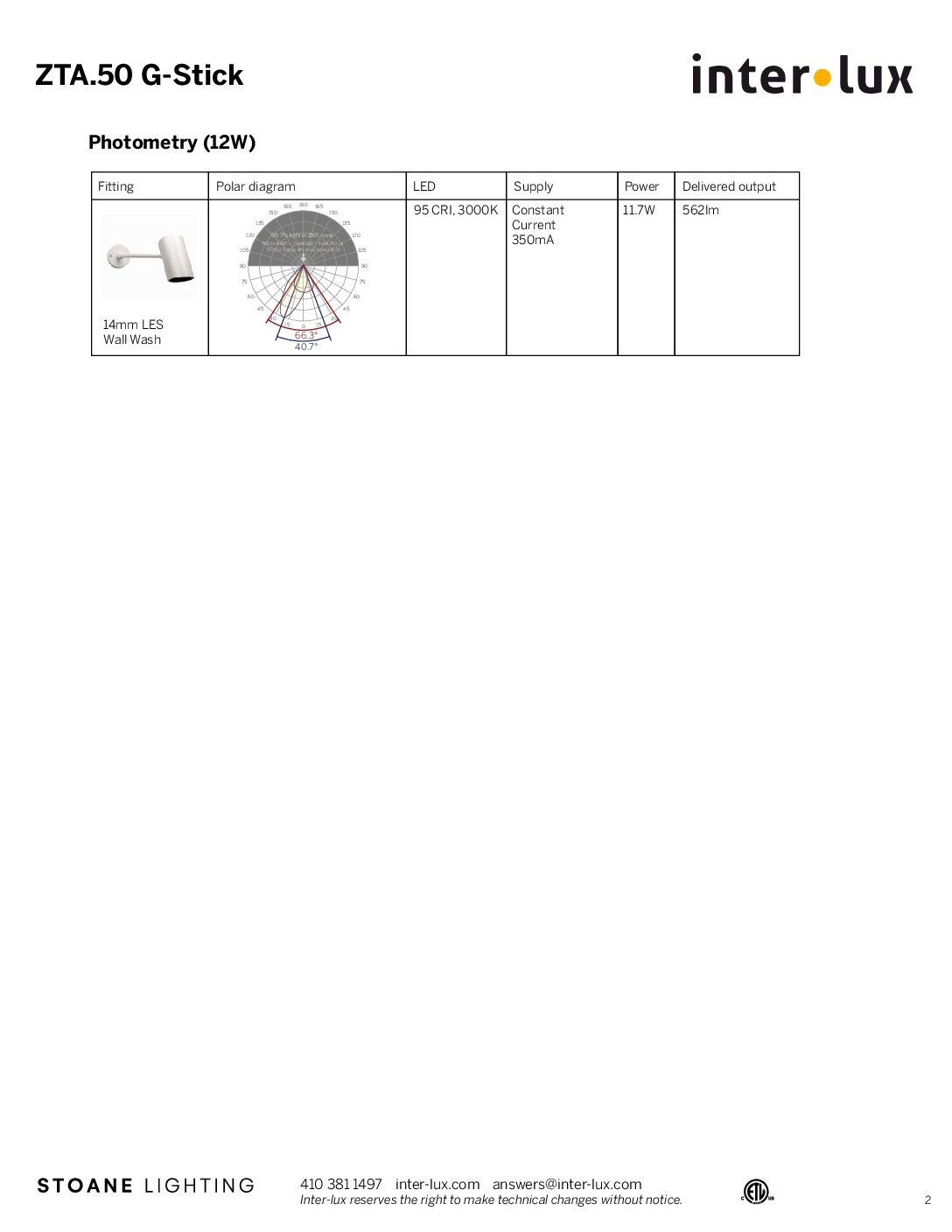

- Photometry
-

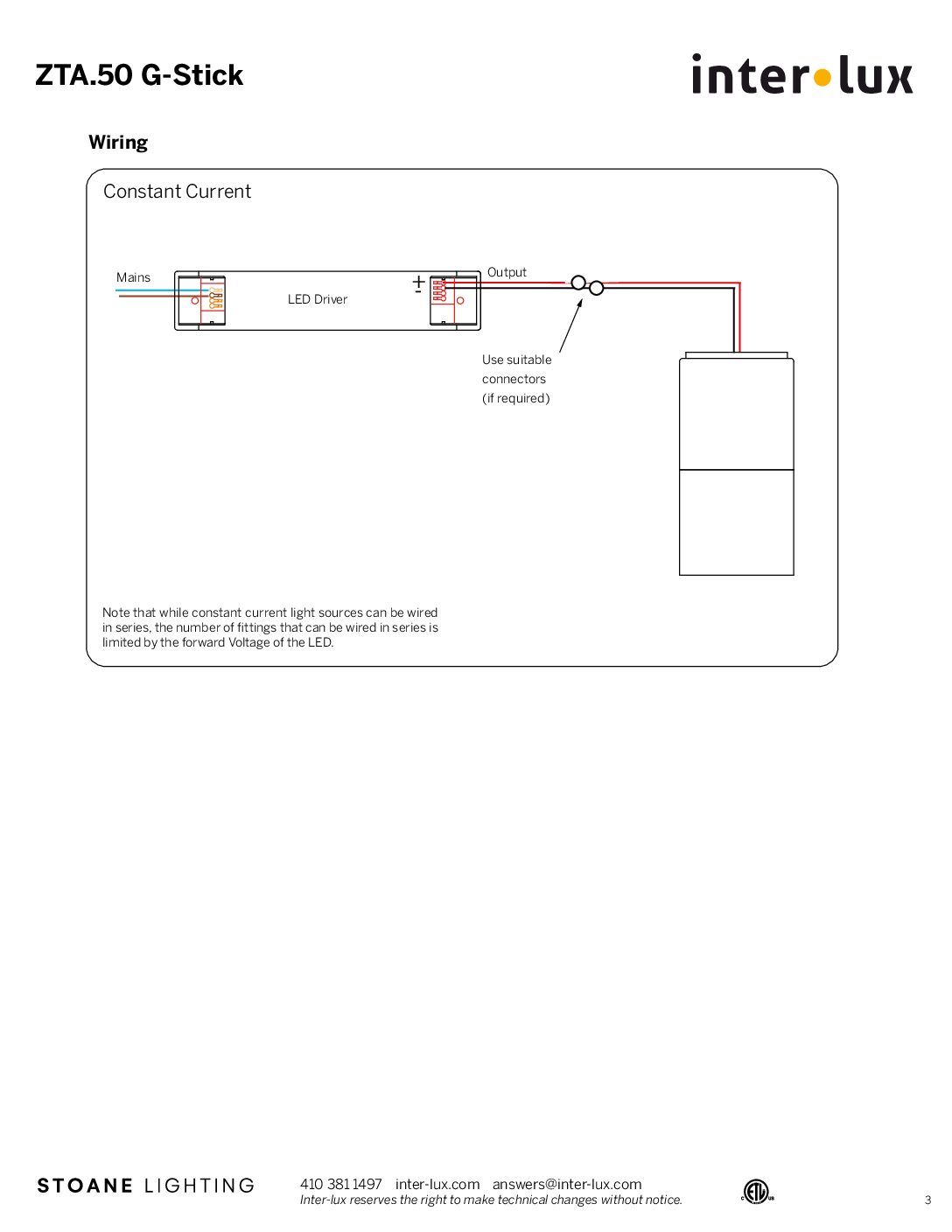

- Wiring
-
- ZTA 50 G-Stick Accessories
-
