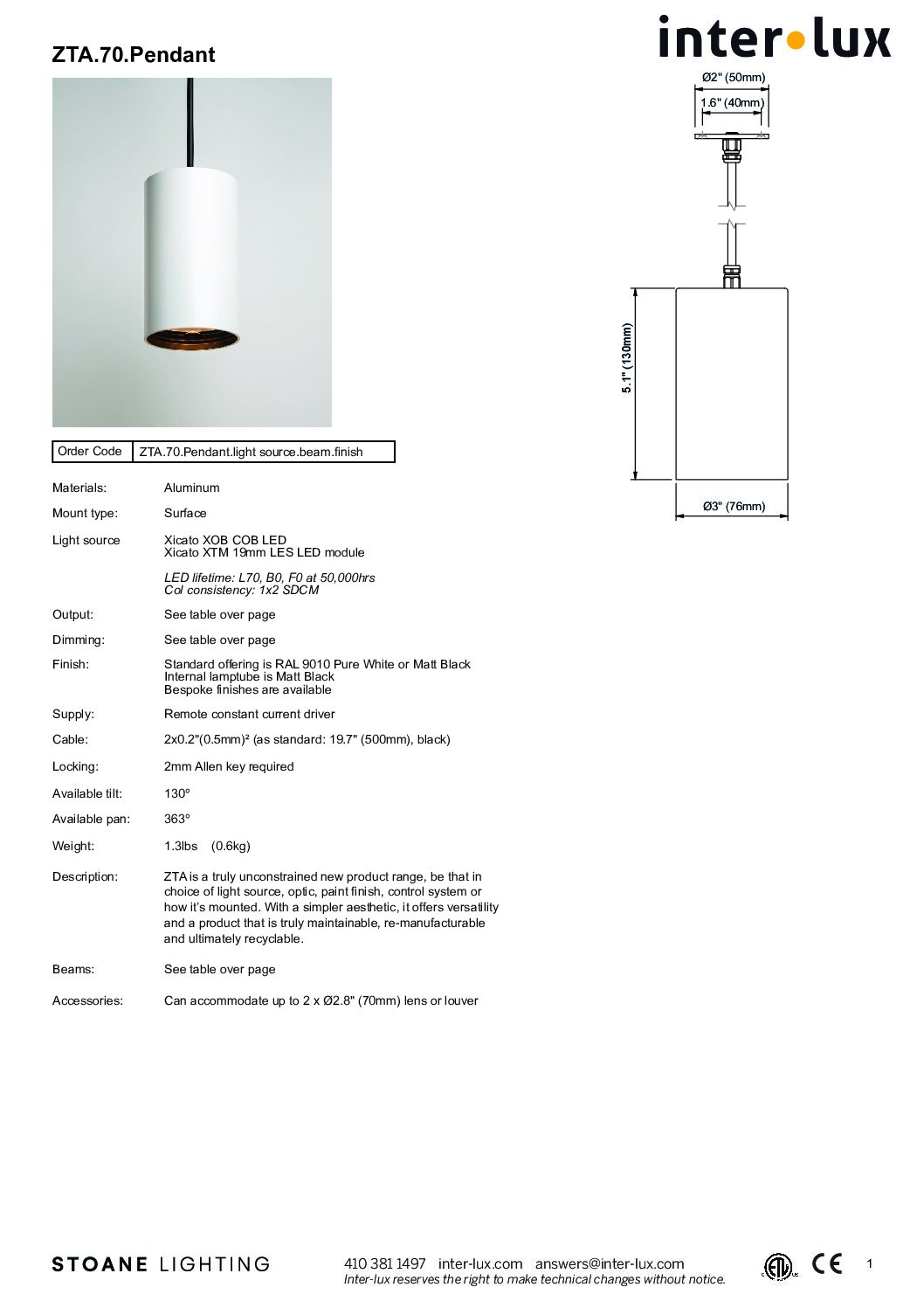

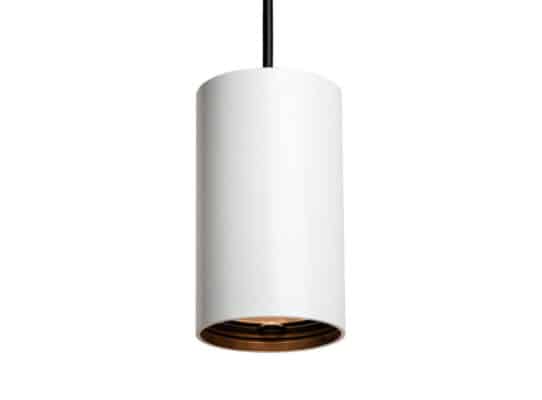

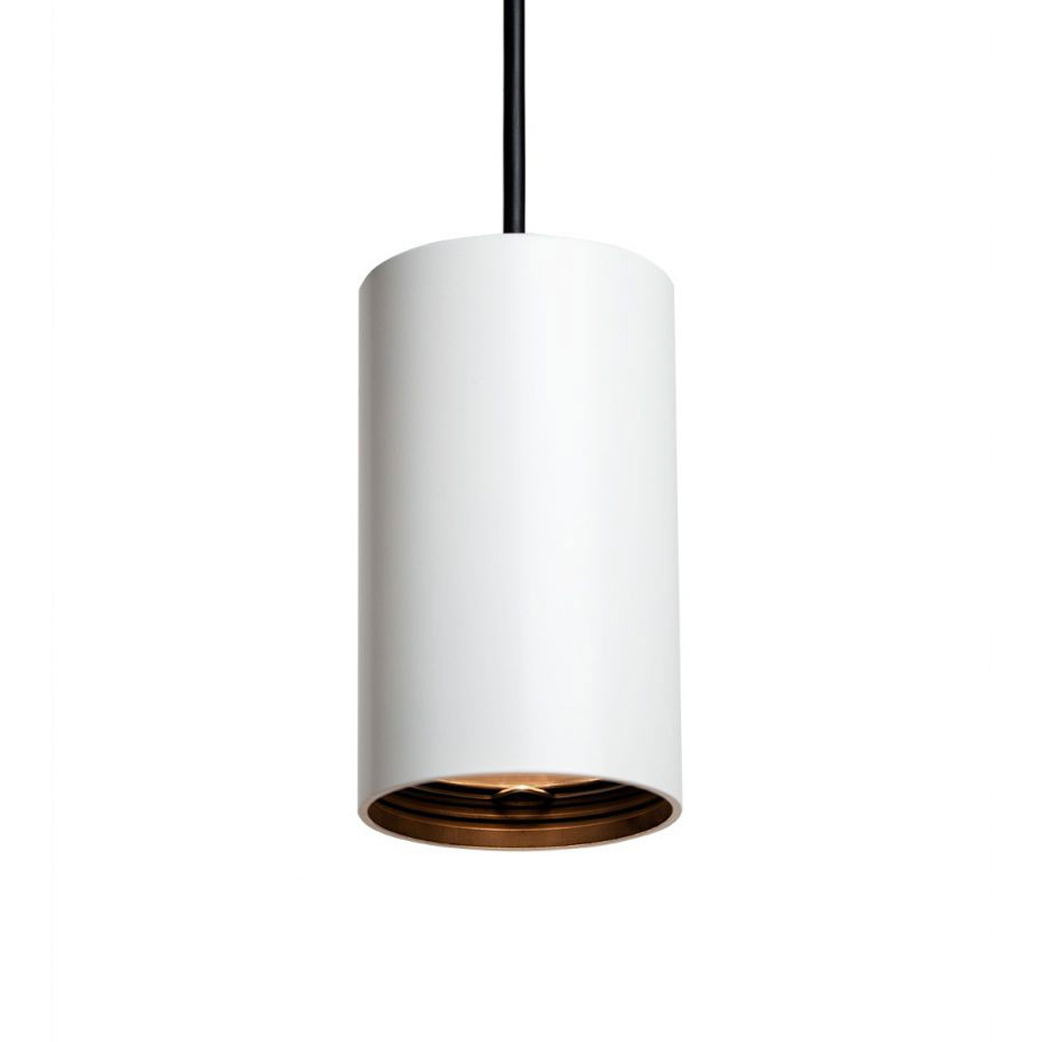

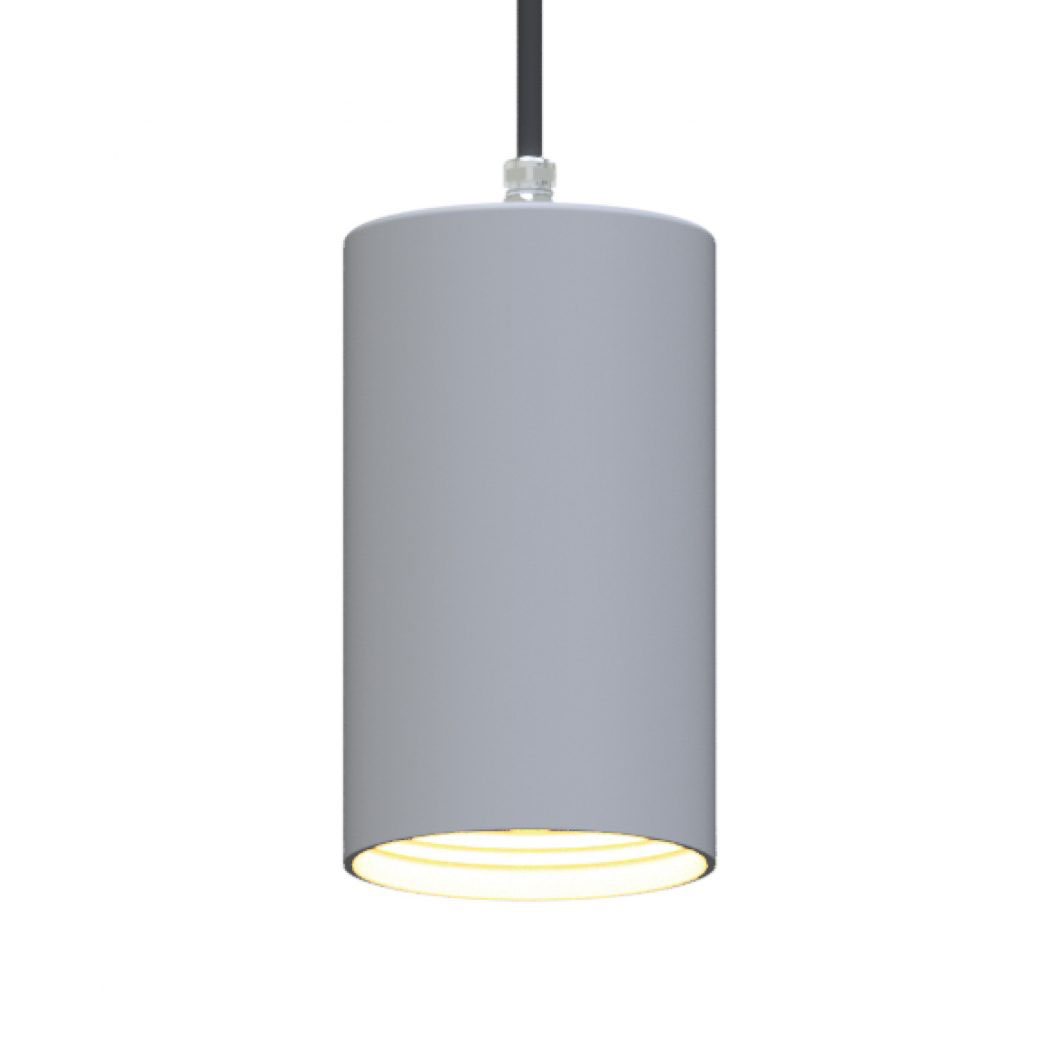

ZTA.70.Pendant
Interior rated suspended Pendant. Designed for the circular economy. Suited to a multitude of applications from museum and gallery, retail, heritage, private residential and commercial.
- Suspension mounted.
- Precision machined from 70 – 90% recycled aluminum.
- 95+ CRI with multiple CCTs and optics available.
Mounting
- S = Suspension cable. field adjustable 6.6″ (2M) max length, black
Power
- 8 = 8W (798lm initial at 250mA, 34.1Vf)
- 12 = 12W (1513lm initial at 350mA, 36.9Vf)
- 24 = 24W (2745lm initial at 700mA, 36.7Vf)
CCT (95+ CRI)
- 927 = 2700K
- 930 = 3000K
- 935 = 3500K
- 940 = 4000K
Optic
- VN = Very Narrow (11°), 8W Only
- N = Narrow (15º), 12W Only
- M1 = Medium 1 (22º), 24W Only
- M2 = Medium 2 (25º), 24W Only
- F1 = Flood 1 (32º), 24W Only
- F2 = Flood 2 (46º), 24W Only
- WF = Wide Flood (61º), 24W Only
Finish (interior always matte black)

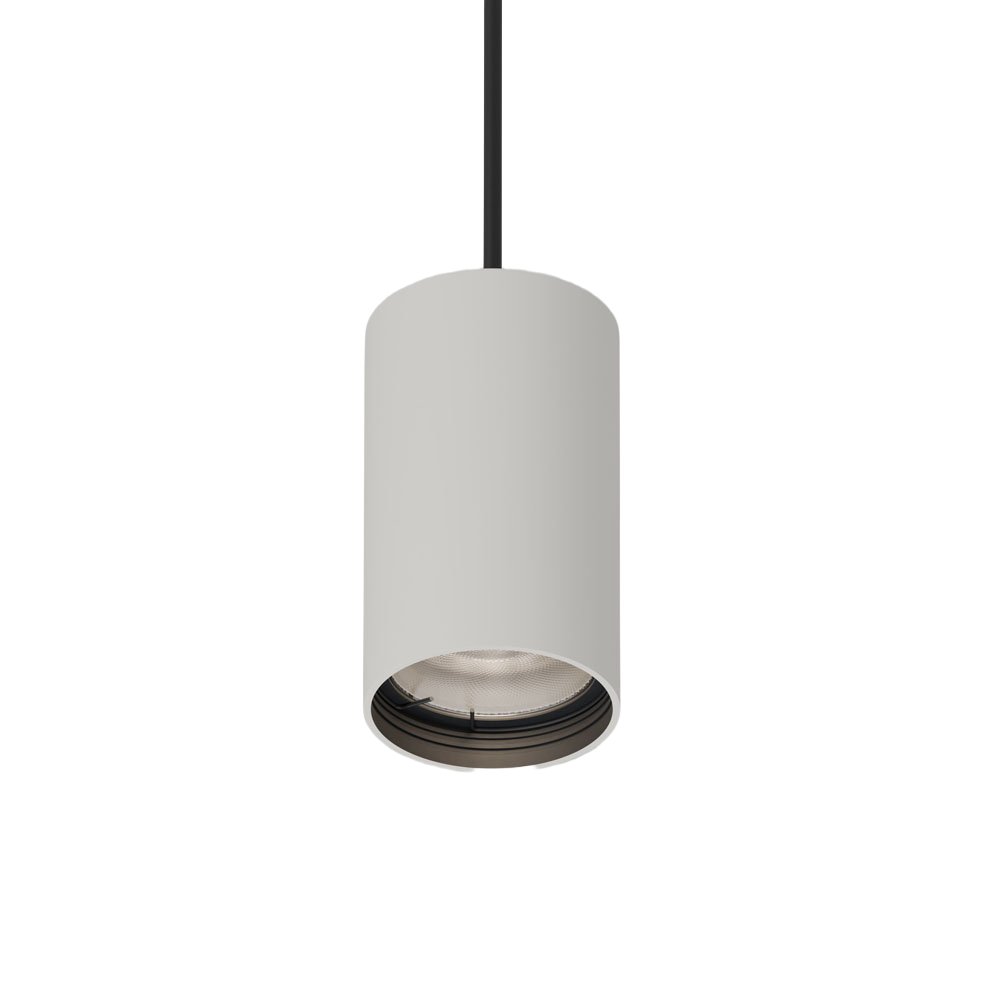

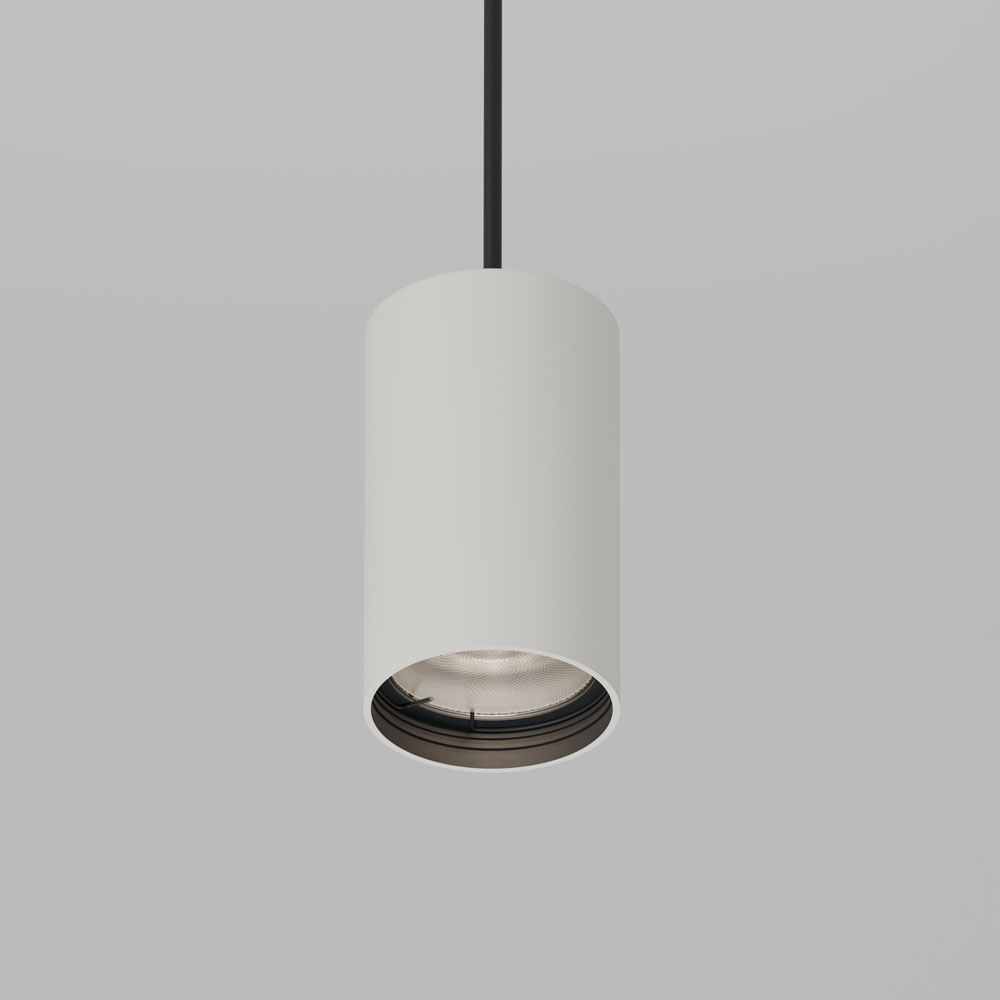

- W = Pure White, RAL9010

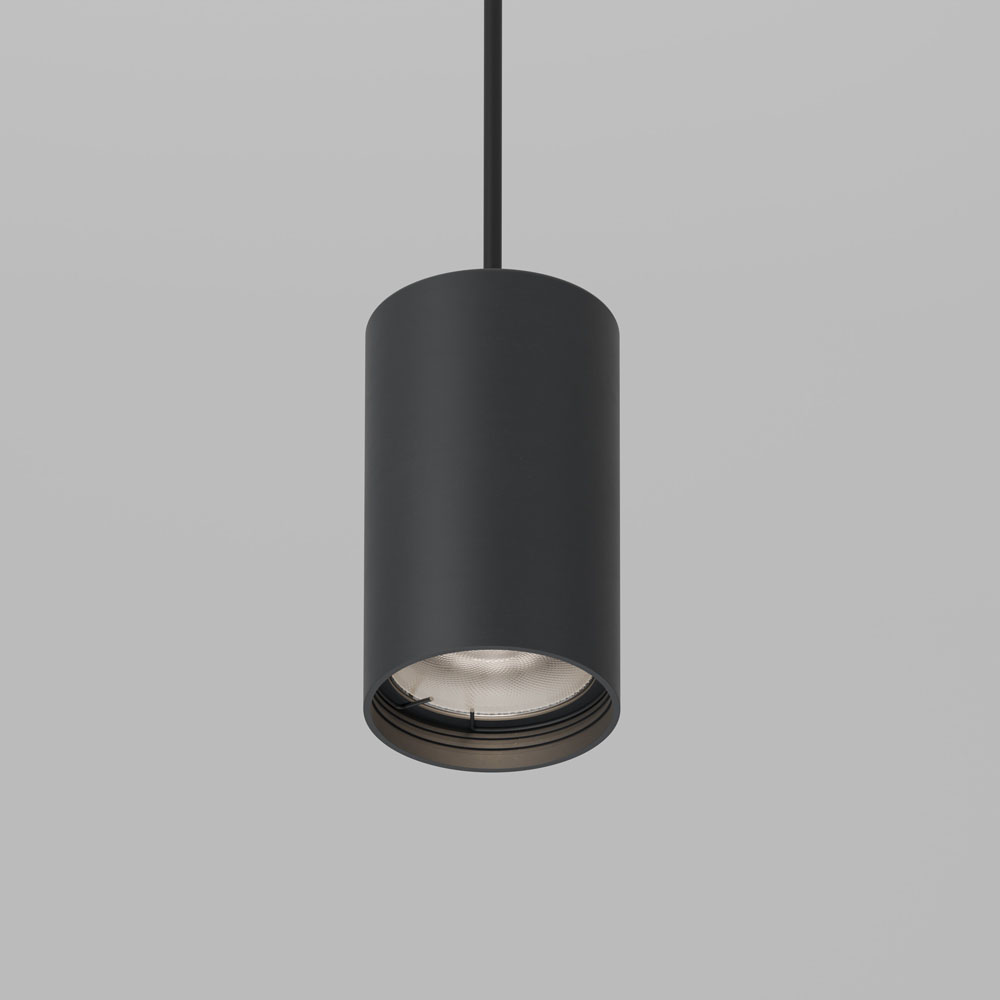

- BL = Matte Black, RAL9005
- CF = Custom finish, specify RAL

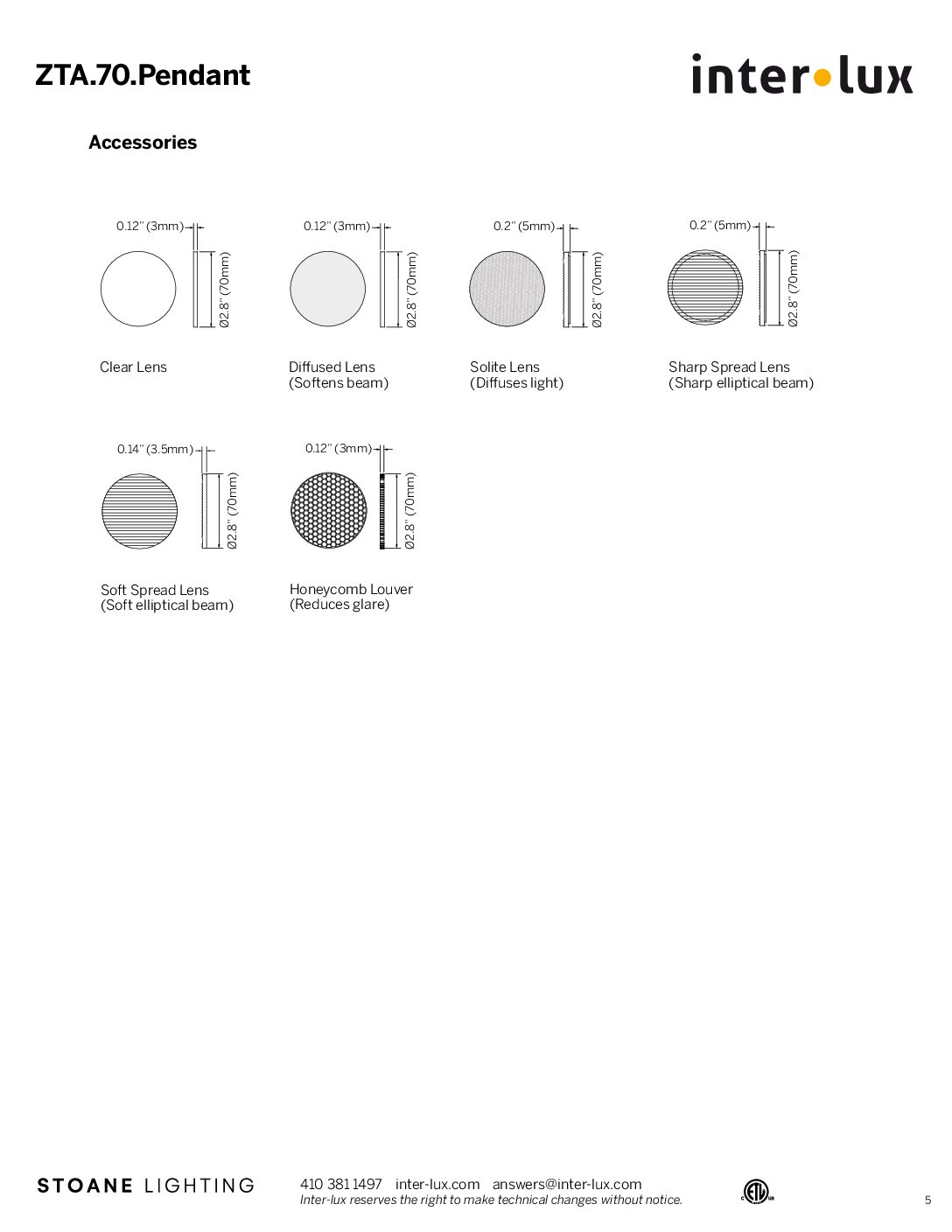

Accessories
- CL = Clear Lens
- DL = Diffused Lens
- HCL = Honeycomb Louver
- SOL = Solite Lens
- SHS = Sharp Spread Lens
- SOS = Soft Spread Lens
Remote Driver
- ECO30W-500 = 0-10V EldoLED ECOdrive 30W for 1 fixture
- SOLO50W-500 = 0-10V EldoLED SOLOdrive 50W for 1-2 fixtures (1 per output)
- SOLO100W-500 = 0-10V EldoLED SOLOdrive 100W for 1-4 fixtures (1 per output)
Selections download as one PDF

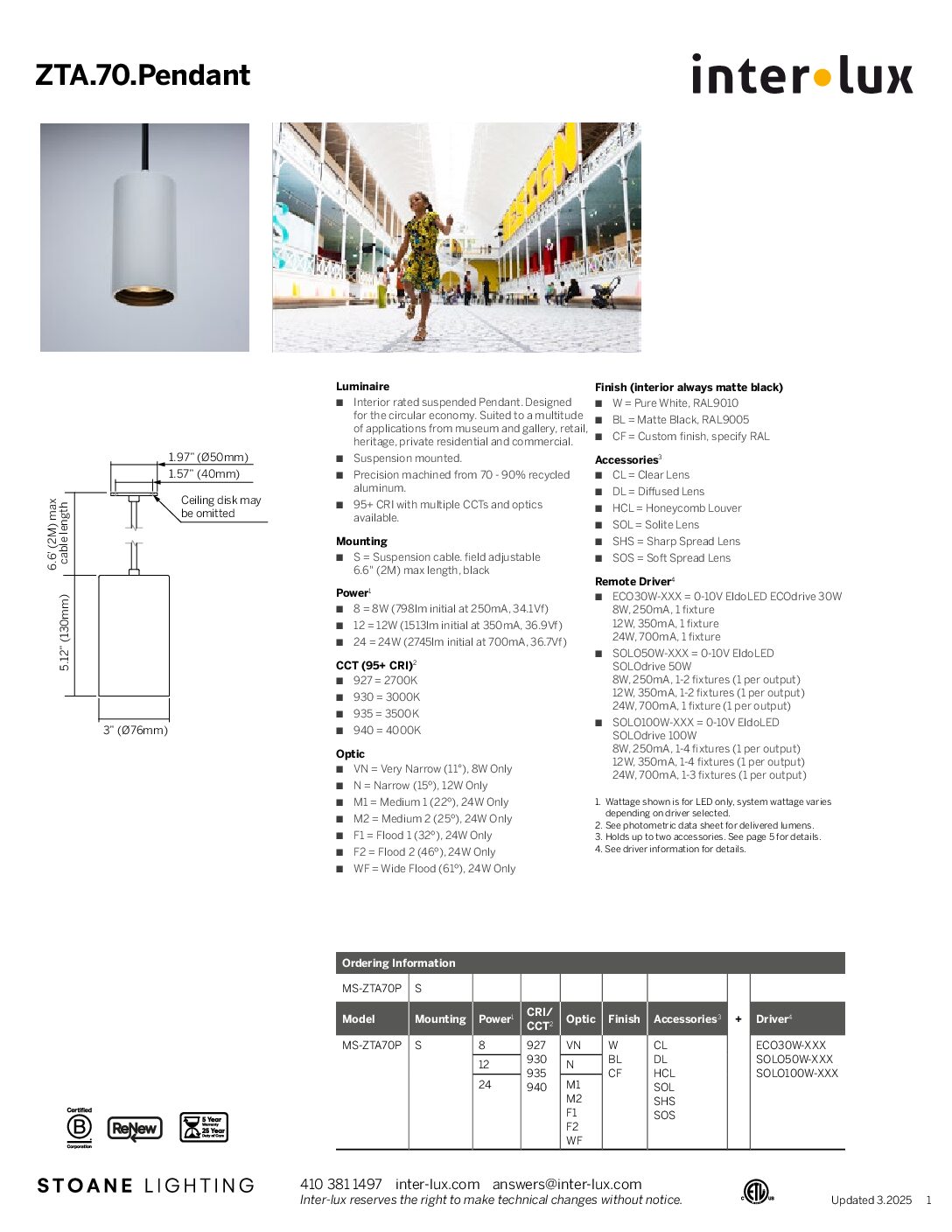

- Spec Page
-

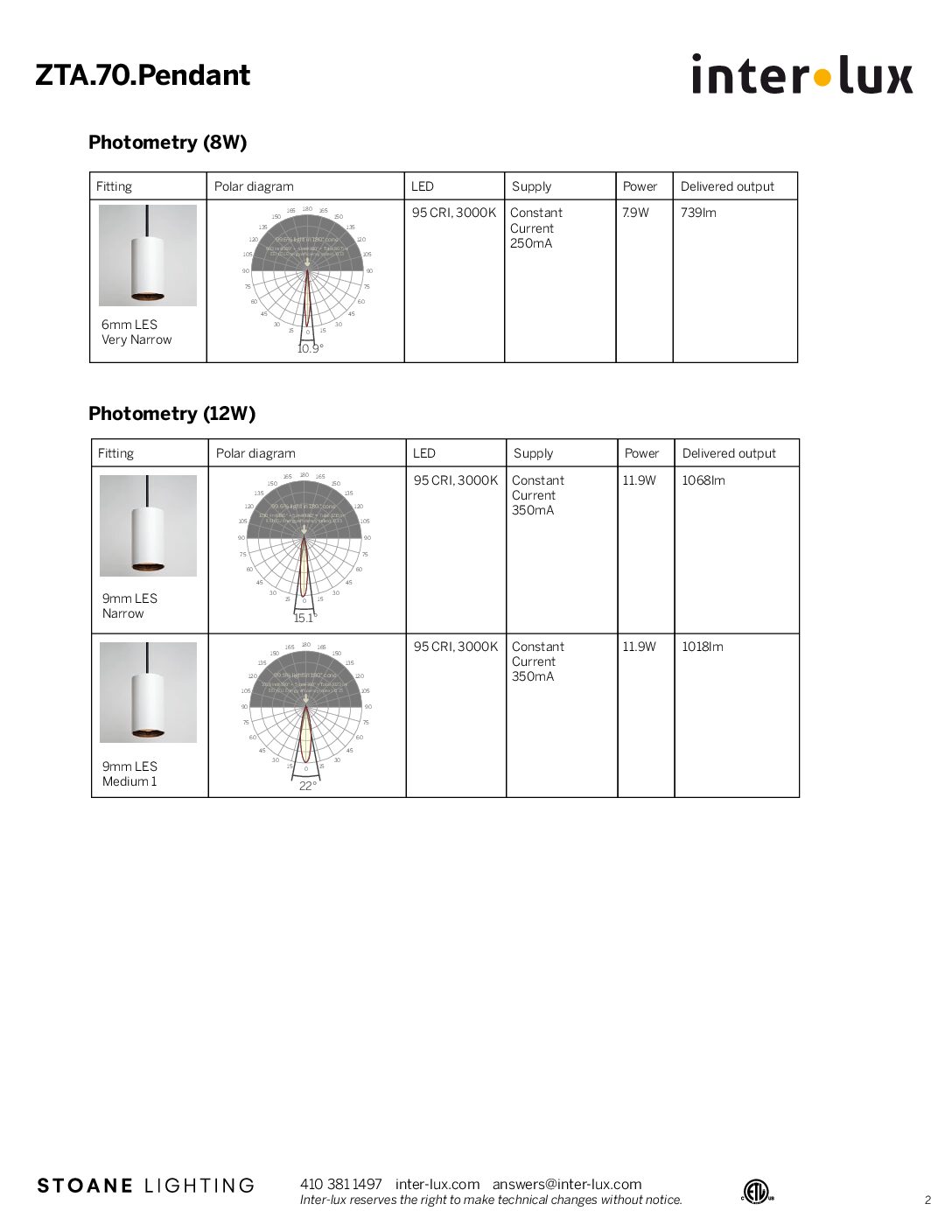

- Photometry
-

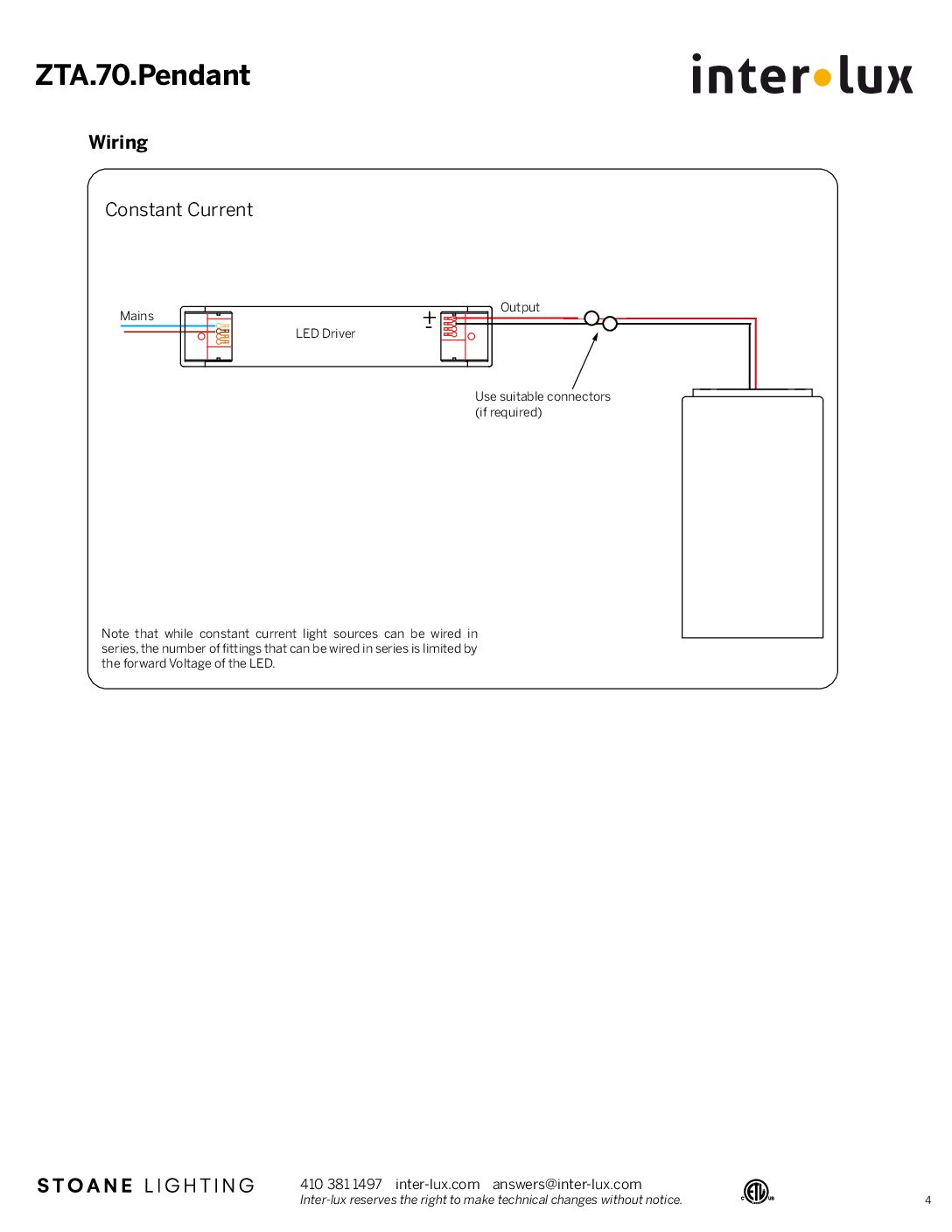

- Wiring
-
- Accessories
-
